Family Home Plans - Better Living By Good Design

Plan 52105 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Specifications

  • 3020 Total Living Area
  • 525 Main Level
  • 2495 Upper Level
  • 5 Bedrooms
  • 3 Full Bath(s)
  • 1 Half Bath(s)
  • 4 Car Garage
  • 50'5 Wide x 60'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $2,653.00
  • 5 Sets: $2,884.00
  • 5 Sets plus PDF File: $2,992.00
  • CAD File: $3,423.00
  • Materials List: $375.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $49.00
* prices shown w/o any discounts applied

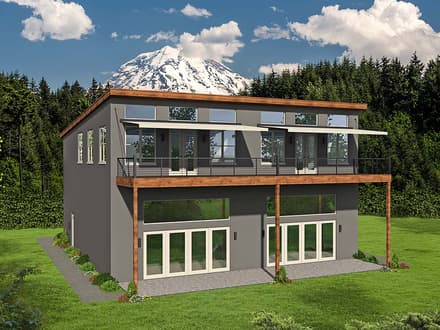

Plan 52105 | Order Code: 00WEB | Elevation

Reverse Plan


Plan 52105 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan 52105 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan 52105 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 3020
  • Main Living Area: 525
  • Upper Living Area: 2495
  • Garage Area: 1995
  • Garage Type: Attached
  • Garage Bays: 4
  • House Width: 50'5
  • House Depth: 60'0
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 1
  • Max Ridge Height: 31'1 from Front Door Floor Level
  • Primary Roof Pitch: 1:12
  • Roof Framing: Stick
  • Deck: 484 sq ft
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 16'
  • Vaulted Ceiling: Yes

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $2,653.00
  • 5 Sets: $2,884.00
  • 5 Sets plus PDF File: $2,992.00
  • CAD File: $3,423.00
  • Materials List: $375.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $49.00

Unit A Square Footage: 426 Heated Down 1419 Heated Up 1845 Heated Total 844 Garage/Storage 242 Deck Area 1086 Total Unheated 2931 Total Area Unit B Square Footage: 99 Heated Down 1076 Heated Up 1175 Heated Total 1151 Garage/Storage 242 Deck Area 1393 Total Unheated 2568 Total Area

Materials List may take 3-5 weeks to fulfill depending on availability.

* prices shown w/o any discounts applied

Plan 52105 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan 52105 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
