House Plan 60570 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 3402 Total Living Area
  • 3402 Main Level
  • 4 Bedrooms
  • 4 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 110'2 Wide x 110'4 Deep
Available Foundation Types:
  • Stem Wall Slab

Plan Pricing

  • PDF File: $2,142.86
  • Right Reading Reverse: $500.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

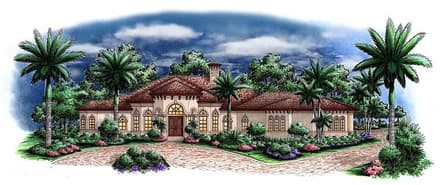

House Plan 60570 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 60570 | Order Code: 00WEB | First Floor Plan

Reverse Plan

Specifications

  • Total Living Area: 3402
  • Main Living Area: 3402
  • Garage Area: 890
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 110'2
  • House Depth: 110'4
  • Number of Stories: 1
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Max Ridge Height: 24'2 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Framing: Truss
  • Porch: 983 sq ft
  • Formal Dining Room: Yes
  • 1st Floor Master: Yes

Available Foundation Types:

  • Stem Wall Slab

Plan Pricing

  • PDF File: $2,142.86
  • Right Reading Reverse: $500.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.

* prices shown w/o any discounts applied

Special Features:

  • Outdoor Pool
  • Rear Porch

Architectural Styles

Mediterranean

Is what your friends and family will be saying about this Mediterranean Home! Three complete suites plus the master suite and octagonal shaped study. This floor plan is efficient with a wonderful use of space packing all of that into 3,400 square feet of living. Dramatic radial window in the living room welcomes guests and invites them to see what lies just beyond the glass. Upon entering the family area, the wall of glass disappears opening that area for a spacious entertaining haven! A great family house plan........remember if you ever need modifications to any of our blueprints, just ask!
