House Plan 75228 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 5230 Total Living Area
  • 5230 Main Level
  • 4 Bedrooms
  • 4 Full Bath(s)
  • 1 Half Bath(s)
  • 4 Car Garage
  • 130'0 Wide x 98'10 Deep
Available Foundation Types:
  • Basement
  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $2,876.50
  • 5 Sets: $2,196.60
  • 8 Sets: $2,301.20
  • Reproducible Set: $2,876.50
  • CAD File: $4,602.40
  • Right Reading Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00
* prices shown w/o any discounts applied

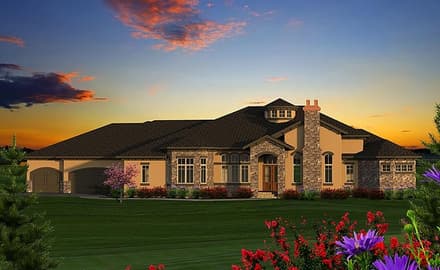

House Plan 75228 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 75228 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 75228 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 5230
  • Main Living Area: 5230
  • Garage Area: 1417
  • Garage Type: Attached
  • Garage Bays: 4
  • House Width: 130'0
  • House Depth: 98'10
  • Number of Stories: 1
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Max Ridge Height: 29'4 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Load: 47 psf
  • Roof Framing: Truss
  • Porch: 362 sq ft
  • Formal Dining Room: Yes
  • FirePlace: Yes
  • Main Ceiling Height: 10

Available Foundation Types:

  • Basement
  • Crawlspace
  • Slab

Plan Pricing

  • PDF File: $2,876.50
  • 5 Sets: $2,196.60
  • 8 Sets: $2,301.20
  • Reproducible Set: $2,876.50
  • CAD File: $4,602.40
  • Right Reading Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $65.00

10'. Entry Dome, Kitch Vaulted, Nook Cathedral, Grt Rm Barrel Vault, Master Bdrm 13' Step, Den 14' Coffered, Din Rm 12'.

* prices shown w/o any discounts applied

Special Features:

  • Rear Porch

Architectural Styles

Italian, Tuscan

This sprawling ranch includes many unique spaces and plenty of ceiling details to make it stand out in the crowd.
A circular entry wows you and a formal den and dining room lie to either side.
The kitchen overlooks the nook and hearth room while still maintaining a sight line with the adjacent great room.
The barrel vaulted great room enhances the fireplace and built-ins on the wall to the right.
The master suite includes a step ceiling, his and hers walk-in closets and a circular turning point to the bathroom area.
Three additional bedrooms, all with walk-in closets are tucked in behind the garage.
A three-stall garage with extra storage makes this the perfect home for a growing family.
