Garage Plan 76049 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1 Half Bath(s)
  • 2 Car Garage
  • 24'0 Wide x 36'0 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $545.00
* prices shown w/o any discounts applied

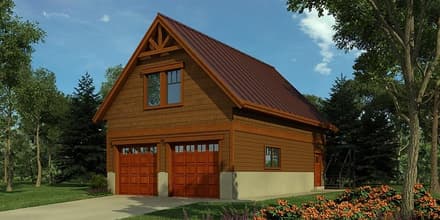

Garage Plan 76049 | Order Code: 00WEB | Elevation

Reverse Plan


Garage Plan 76049 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Garage Plan 76049 | Order Code: 00WEB | Second Floor Plan

Reverse Plan

Specifications

  • Bonus Area: 864
  • Garage Area: 533
  • Garage Type: Detached
  • Garage Bays: 2
  • House Width: 24'0
  • House Depth: 36'0
  • Number of Stories: 1
  • Half Baths: 1
  • Max Ridge Height: 27'0 from Front Door Floor Level
  • Primary Roof Pitch: 12:12
  • Roof Load: 32 psf
  • Roof Framing: Stick
  • Porch: 190 sq ft

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $545.00
* prices shown w/o any discounts applied

Architectural Styles

Traditional

Sleek metal roofing and horizontal siding ensures that this detached garage with workshop will blend into and compliment any building site location. The first level has a nine foot ceiling height while the second level side walls start at three feet high and slope up thirteen foot six inches at the ridge. The unfinished second level loft with vaulted ceilings is intentionally left undeveloped to allow your personalization of this area. A rear facing sundeck increases the flexibility of this space.
