House Plan 77538 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 4309 Total Living Area
  • 2620 Main Level
  • 1689 Upper Level
  • 5 Bedrooms
  • 5 Full Bath(s)
  • 2 Half Bath(s)
  • 3 Car Garage
  • 44'8 Wide x 99'4 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $3,880.00
  • CAD File: $3,880.00
  • Right Reading Reverse: $350.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

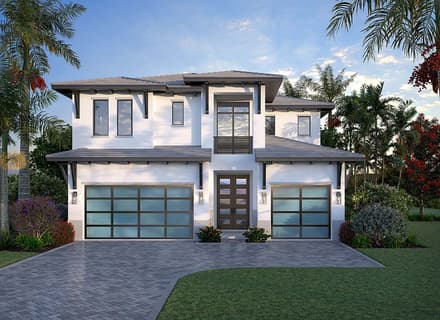

House Plan 77538 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 77538 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 77538 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


House Plan 77538 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 4309
  • Main Living Area: 2620
  • Upper Living Area: 1689
  • Garage Area: 805
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 44'8
  • House Depth: 99'4
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: 2
  • Max Ridge Height: 31'2 from Front Door Floor Level
  • Primary Roof Pitch: 4:12
  • Roof Framing: Truss
  • Porch: 384 sq ft
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 12'

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $3,880.00
  • CAD File: $3,880.00
  • Right Reading Reverse: $350.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

Special Features:

  • Elevator
  • Entertaining Space
  • Lania
  • Mudroom
  • Open Floor Plan
  • Outdoor Fireplace
  • Outdoor Kitchen
  • Pantry
  • Storage Space
  • Two Master Bedrooms
  • Wet Bar

Architectural Styles

Coastal, Contemporary, Florida

Florida Style House Plan with 2nd Level Laundry Room

For those who love to spend time in the swimming pool, choose Florida Style House Plan 77538 because it has a convenient pool bath as well as an outdoor seating area & dining space w/kitchen. Sliding doors open into a fancy great room w/wet bar, and the kitchen boasts a long island and a pantry with prep sink. Relax in the master suite which has a modern wet room and his and her walk-in closet spaces that are connected to the laundry room. Even the kids upstairs have a 2nd level laundry!
