House Plan 77545 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 3733 Total Living Area
  • 1895 Main Level
  • 1838 Upper Level
  • 5 Bedrooms
  • 5 Full Bath(s)
  • 2 Half Bath(s)
  • 2 Car Garage
  • 49'4 Wide x 67'0 Deep
Available Foundation Types:
  • Stem Wall Slab

Plan Pricing

  • PDF File: $3,360.00
  • CAD File: $3,360.00
  • Right Reading Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

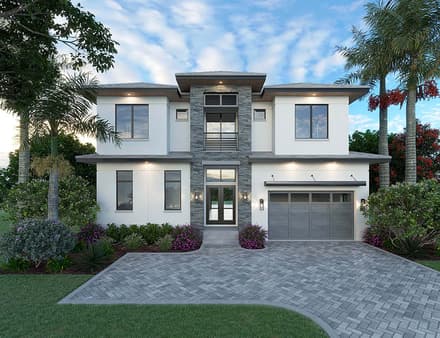

House Plan 77545 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 77545 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 77545 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


House Plan 77545 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 3733
  • Main Living Area: 1895
  • Upper Living Area: 1838
  • Garage Area: 523
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 49'4
  • House Depth: 67'0
  • Number of Stories: 2
  • Bedrooms: 5
  • Full Baths: 5
  • Half Baths: 2
  • Max Ridge Height: 32'.5 from Front Door Floor Level
  • Primary Roof Pitch: 4:12
  • Roof Framing: Truss
  • Porch: 348 sq ft
  • 1st Floor Master: Yes
  • Main Ceiling Height: 12'
  • Upper Ceiling Height: 10'

Available Foundation Types:

  • Stem Wall Slab

Plan Pricing

  • PDF File: $3,360.00
  • CAD File: $3,360.00
  • Right Reading Reverse: $437.50
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

PLAN RESTRICTIONS: CANNOT BE SOLD TO BE BUILT IN LEE OR COLLIER COUNTIES, FLORIDA

* prices shown w/o any discounts applied

Special Features:

  • Entertaining Space
  • Lania
  • Open Floor Plan
  • Outdoor Kitchen
  • Pantry
  • Storage Space
  • Wet Bar

Architectural Styles

Coastal, Contemporary, Florida

5 Bedroom Florida Style Luxury House Plan

5 Bedroom Florida Style Luxury House Plan wows with 3,733 sq ft of living space, 5 beds, 5 full baths, one half bath, plus a pool bath. 4 Bedrooms upstairs each have their own private bathroom, plus there's a recreation room, a morning bar, and an upper level laundry room for ultimate convenience. The main level boasts airy open living space among the great room, dining area, and kitchen thanks to large glass doors that you can slide back to admit the ocean breezes through your back covered outdoor living space. Find the master suite on this level as well, complete with a huge walk in closet and spacious bathroom. Lastly, this level has a 2 car garage with storage and a large laundry room.

House Plan 77545 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

House Plan 77545 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
