Family Home Plans - Better Living By Good Design

Plan 81642 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 3573 Total Living Area
  • 1683 Lower Level
  • 1890 Main Level
  • 5 Bedrooms
  • 4 Full Bath(s)
  • 43'11.5" Wide x 53'0" Deep
Available Foundation Types:
  • Basement
  • Crawlspace - * $350.00
  • Slab - * $350.00

* May require additional drawing time.

Plan Pricing

  • PDF File: $1,450.00
  • CAD File: $2,400.00
  • Right Reading Reverse: $250.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
* prices shown w/o any discounts applied

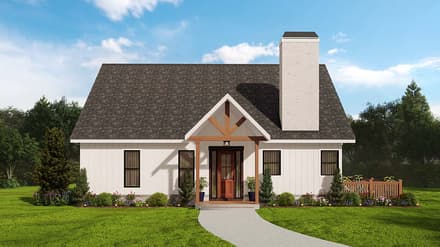

Plan 81642 | Order Code: 00WEB | Elevation

Reverse Plan


Plan 81642 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan


Plan 81642 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan 81642 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 3573
  • Lower Living Area: 1683
  • Main Living Area: 1890
  • Garage Type: None
  • House Width: 43'11.5"
  • House Depth: 53'0"
  • Number of Stories: 1
  • Bedrooms: 5
  • Full Baths: 4
  • Max Ridge Height: 26'7.5" from Front Door Floor Level
  • Primary Roof Pitch: 0
  • Roof Framing: Unknown
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'1"

Available Foundation Types:

  • Basement
  • Crawlspace - $350.00
  • Slab - $350.00

Plan Pricing

  • PDF File: $1,450.00
  • CAD File: $2,400.00
  • Right Reading Reverse: $250.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

$95.00 to add a PDF File to a CAD file order. Call the sales office to add this option to your order.

* prices shown w/o any discounts applied

Plan 81642 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Click to Email Us This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!
