Specifications

  • 1587 Total Living Area
  • 1587 Main Level
  • 2 Bedrooms
  • 2 Full Bath(s)
  • 2 Car Garage
  • 85'0 Wide x 48'0 Deep
Available Foundation Types:
  • Basement - * $299.00
  • Crawlspace - * $299.00
  • Slab
  • Walkout Basement - * $299.00

* May require additional drawing time.

Plan Pricing

  • PDF File: $1,399.00
  • 5 Sets plus PDF File: $1,694.00
  • PDF File Unlimited Build: $2,398.00
  • CAD File: $1,998.00
  • CAD File Unlimited Build: $2,997.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Materials List: $299.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $59.00
* prices shown w/o any discounts applied

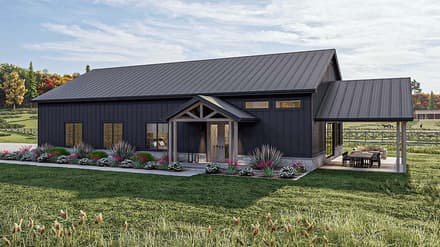

House Plan 84917 | Order Code: 00WEB | Elevation

Reverse Plan


House Plan 84917 | Order Code: 00WEB | First Floor Plan

Reverse Plan


House Plan 84917 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 1587
  • Main Living Area: 1587
  • Garage Area: 1213
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 85'0
  • House Depth: 48'0
  • Number of Stories: 1
  • Bedrooms: 2
  • Full Baths: 2
  • Max Ridge Height: 24'7 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Framing: Unknown
  • Porch: 589 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 14'

Available Foundation Types:

  • Basement - $299.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.
  • Crawlspace - $299.00
  • Slab
  • Walkout Basement - $299.00 Total Living Area may increase with Basement Foundation option - please call to confirm before ordering.

Plan Pricing

  • PDF File: $1,399.00
  • 5 Sets plus PDF File: $1,694.00
  • PDF File Unlimited Build: $2,398.00
  • CAD File: $1,998.00
  • CAD File Unlimited Build: $2,997.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Materials List: $299.00
  • Right Reading Reverse: $299.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $59.00
* prices shown w/o any discounts applied

Special Features:

  • Coat Closet
  • Deck or Patio
  • Entertaining Space
  • Front Porch
  • Mudroom
  • Open Floor Plan
  • Pantry
  • Storage Space

Architectural Styles

Barndominium, Country, Craftsman, Farmhouse, Southern

Barndominium Style House Plan

This new barndominium plan is not only efficient, but also affordable. With the plan being 1587 square feet, it is the perfect size for a small family, couple, or even one who wants the additional space without there being too much to deal with. As soon as you walk up to the home, you are greeted with a covered patio and cathedral ceilings. Step inside to see a large space for the kitchen, great room, and dining room, an open floor plan that allows the space to feel much bigger than it is.

As you continue throughout the plan, you can find a mud room, as well as two bedrooms, the master including a walk-in closet with access to the laundry room. Both bathrooms also have double vanities, which makes this space great for having guests over and remaining close without becoming claustrophobic.

The backyard also includes a covered porch for enjoying the views and relaxing after a long day. This plan is great for those who want the barndominium style while staying on budget.
