Specifications

  • 3695 Total Living Area
  • 1470 Lower Level
  • 1636 Main Level
  • 589 Upper Level
  • 4 Bedrooms
  • 4 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 90'4" Wide x 64'10" Deep
Available Foundation Types:
  • Walkout Basement

Plan Pricing

  • PDF File: $1,895.00
  • 5 Sets: $1,795.00
  • 5 Sets plus PDF File: $2,045.00
  • PDF File Unlimited Build: $2,595.00
  • CAD File: $1,895.00
  • CAD File Unlimited Build: $2,595.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $195.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00
* prices shown w/o any discounts applied

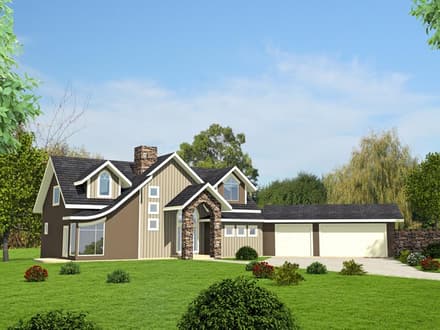

Plan 85245 | Order Code: 00WEB | Elevation

Reverse Plan


Plan 85245 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan


Plan 85245 | Order Code: 00WEB | First Floor Plan

Reverse Plan

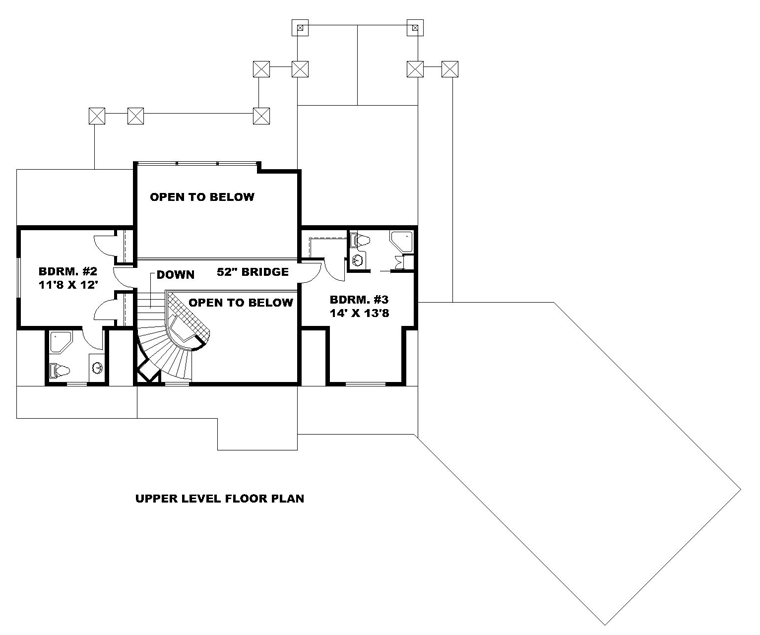

Plan 85245 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan 85245 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 3695
  • Lower Living Area: 1470
  • Main Living Area: 1636
  • Upper Living Area: 589
  • Garage Area: 936
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 90'4"
  • House Depth: 64'10"
  • Number of Stories: 2
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Max Ridge Height: 31'8" from Front Door Floor Level
  • Primary Roof Pitch: 10:12
  • Roof Framing: Truss
  • FirePlace: Yes
  • 1st Floor Master: Yes
  • Main Ceiling Height: 9'1"

Available Foundation Types:

  • Walkout Basement

Plan Pricing

  • PDF File: $1,895.00
  • 5 Sets: $1,795.00
  • 5 Sets plus PDF File: $2,045.00
  • PDF File Unlimited Build: $2,595.00
  • CAD File: $1,895.00
  • CAD File Unlimited Build: $2,595.00
    Unlimited Build License issued on CAD File Unlimited Build orders.
  • Right Reading Reverse: $195.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $50.00
* prices shown w/o any discounts applied

Plan 85245 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
