Multi-Family Plan 96213 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 4446 Total Living Area
  • 1334 Lower Level
  • 1318 Main Level
  • 1794 Upper Level
  • 10 Bedrooms
  • 6 Full Bath(s)
  • 2 Half Bath(s)
  • 2 Car Garage
  • 42' Wide x 52' Deep
  • 2 Units
Available Foundation Types:
  • Basement

Plan Pricing

  • PDF File: $2,395.00
  • 5 Sets plus PDF File: $2,645.00
  • CAD File: $2,895.00
  • Materials List: $125.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00
* prices shown w/o any discounts applied

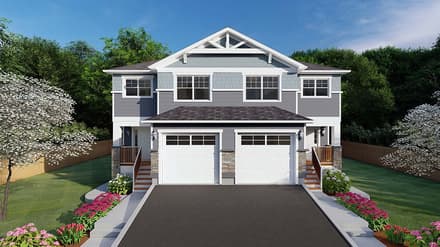

Multi-Family Plan 96213 | Order Code: 00WEB | Elevation

Reverse Plan


Multi-Family Plan 96213 | Order Code: 00WEB | First Floor Plan

Reverse Plan

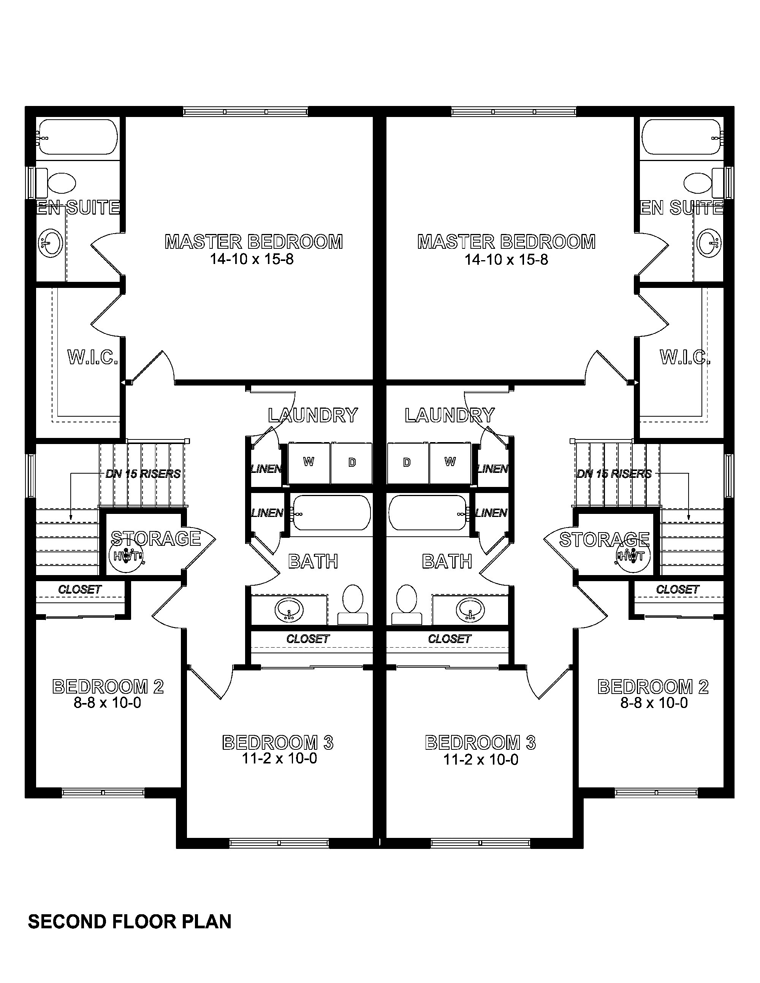

Multi-Family Plan 96213 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Multi-Family Plan 96213 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan


Multi-Family Plan 96213 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 4446
  • Lower Living Area: 1334
  • Main Living Area: 1318
  • Upper Living Area: 1794
  • Garage Area: 592
  • Garage Type: Attached
  • Garage Bays: 2
  • House Width: 42'
  • House Depth: 52'
  • Number of Stories: 2
  • Bedrooms: 10
  • Full Baths: 6
  • Half Baths: 2
  • Max Ridge Height: 32'8 from Front Door Floor Level
  • Primary Roof Pitch: 6:12
  • Roof Framing: Unknown
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 8'
  • Upper Ceiling Height: 8'

Available Foundation Types:

  • Basement

Plan Pricing

  • PDF File: $2,395.00
  • 5 Sets plus PDF File: $2,645.00
  • CAD File: $2,895.00
  • Materials List: $125.00
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00
* prices shown w/o any discounts applied

Architectural Styles

Craftsman

Craftsman Style Duplex

This side by side Craftsman style duplex features a modern and open layout designed for comfortable living. The split level side entry allow for easy access to both the main and basement floors and allows for future secondary suite development. The master bedroom is complete with a walk-in closet and en suite, and the two other bedrooms make it perfect as a home for family life. Each unit features its own single car garage, laundry room, and main floor powder room. An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms.

Multi-Family Plan 96213 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Multi-Family Plan 96213 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
