a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

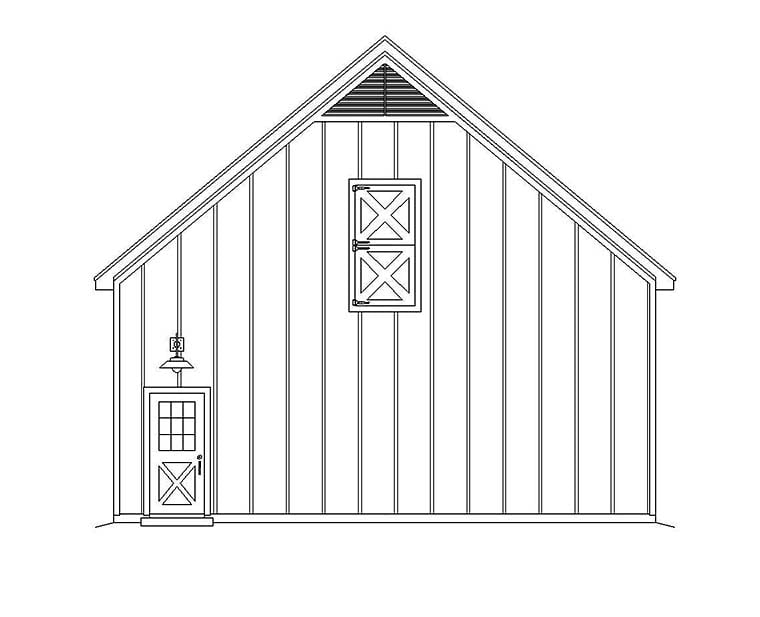

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
Receive a FREE modification estimate:
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:Can the loft accommodate an apartment with kitchen, bathroom, laundry, etc? If yes, is it engineered to handle the weight of an apartment? Thank you. What is the square footage not including the sloped sections?
A:Yes it is. The square footage is 777. We can revise the upstairs layout to accommodate the change for $450. Please allow 4-6 wk lead time.

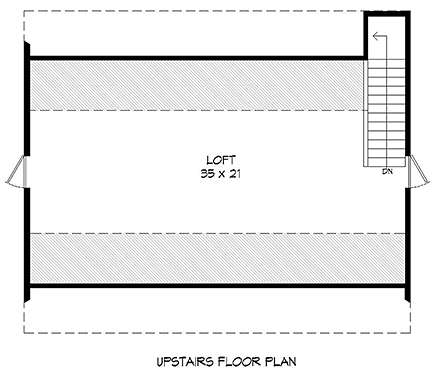

Q:on the upstairs dimensions, can you tell me what the wall height would be at the 21 foot width. It appears on the plans that there is a knee wall much closer in. Just wondering what the actual usable space of the upstairs is. Thanks.
A:The kneewall height is 5' and would stay 5' but the room size would be 11'-10" wide.
Q:what is the ceiling height? what is the height of the garage door?
A:Ceiling is 10’ ht The doors are 12’ x 8’ and 20’ x 8’
Q:Are there any columns in the garage that hold up the second floor. Will you send an image showing the locations? Is the siding board and batten or metal?
A:There are no structural columns on the plans. The siding is board and batten, but you can use any material you prefer.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
