Multi-Family Plan 41260

• PDF File: $4,475.00
• 1 Set: $1,775.00 **
• 5 Sets plus PDF File: $2,650.00
• CAD File: $4,950.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $5,400.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $465.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $1,775.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $70.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Basement : $715.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : $580.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: $580.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3114 sq ft
Main Living Area:	1276 sq ft
Upper Living Area:	1838 sq ft
Garage Area:	877 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $715.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $580.00
Exterior Walls:	2x4 - * $580.00 2x6
House Width:	85'0
House Depth:	43'0
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Half Baths:	2
Max Ridge Height:	26'11 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Load:	20 psf
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	9'0

* May require additional drawing time.

Special Features:

• Front Porch

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

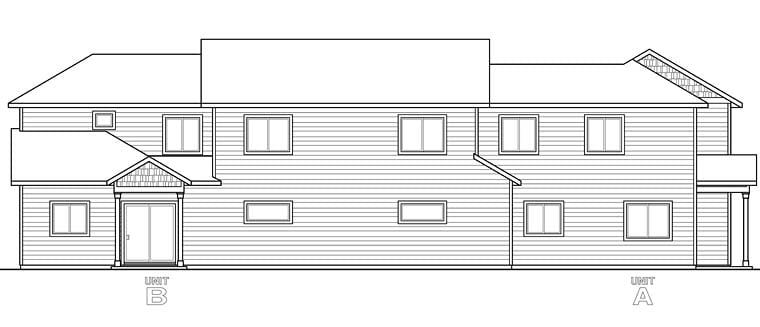

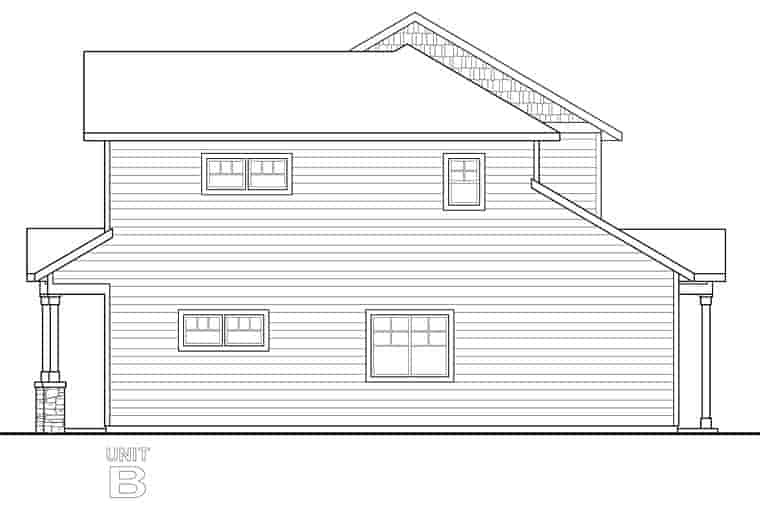

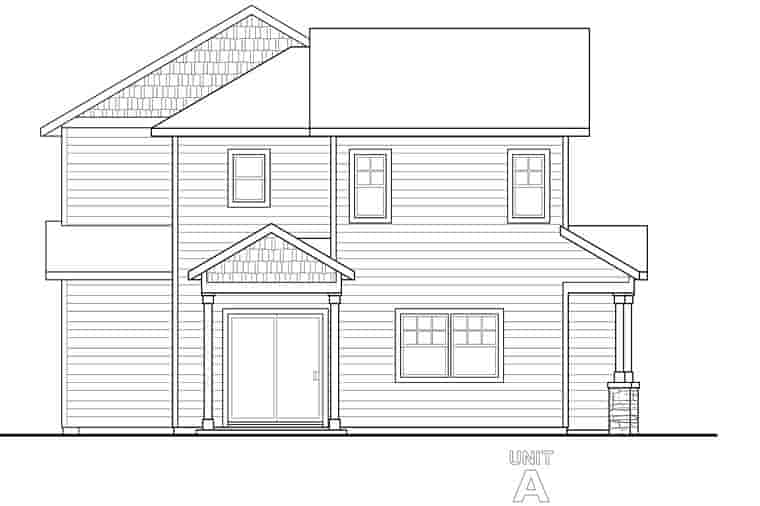

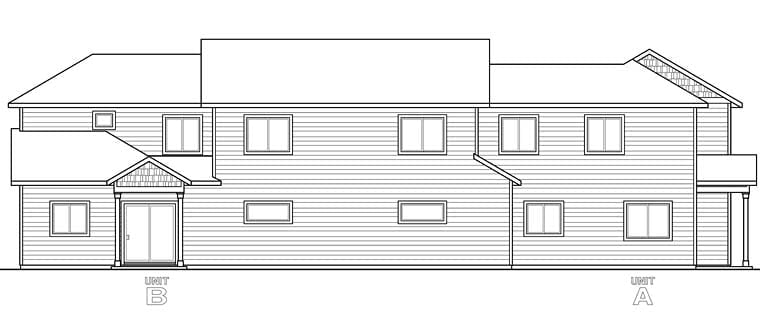

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

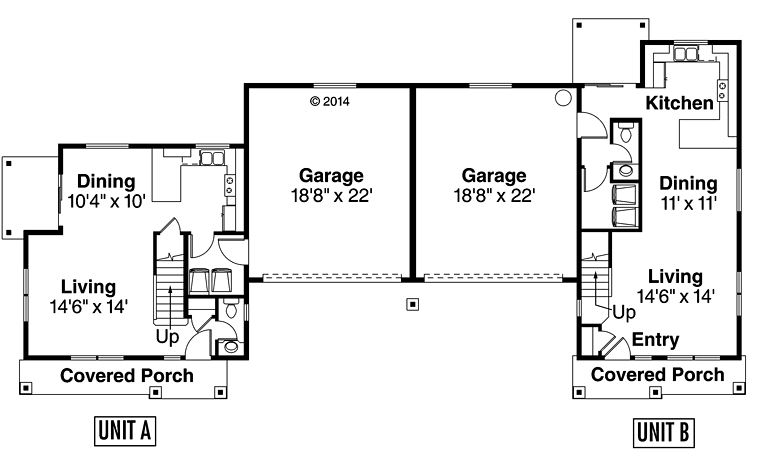

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

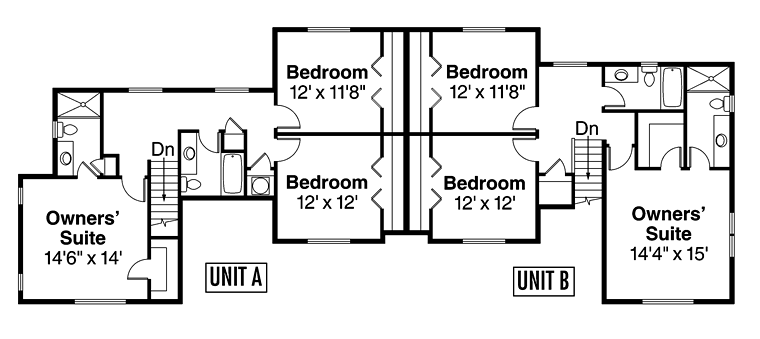

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

Receive a FREE modification estimate:

1) Please Email Us your changes. (Itemized list of changes with details)

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
