Plan Pricing from $800.00

Plan Pricing

PDF File: $800.00
5 Sets plus PDF File: $900.00
CAD File: $1,650.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $50.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $35.00

Additional Notes

Slab Foundation is Stem Wall Slab
Monolithic Slab available $50

Plans can be ordered with a trussed roof system upon request. Please add to order notes.

Plan Options:

Trussed Roof System Option: $625.00

Available Foundation Types:

Basement : $125.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : $50.00
May require additional drawing time, please call to confirm before ordering.
Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1272 sq ft

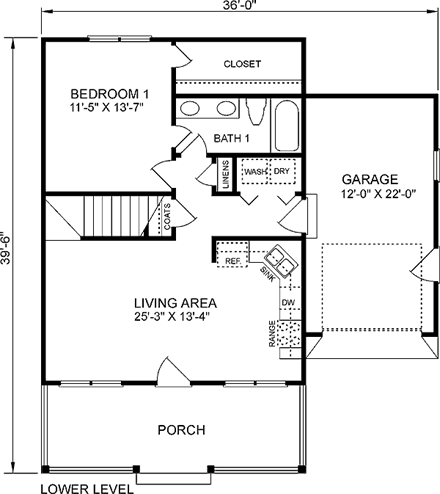

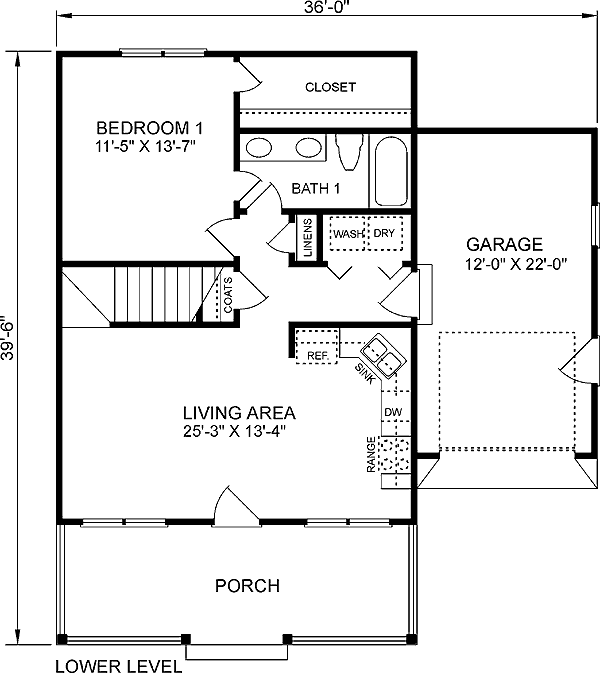

Main Living Area:	756 sq ft

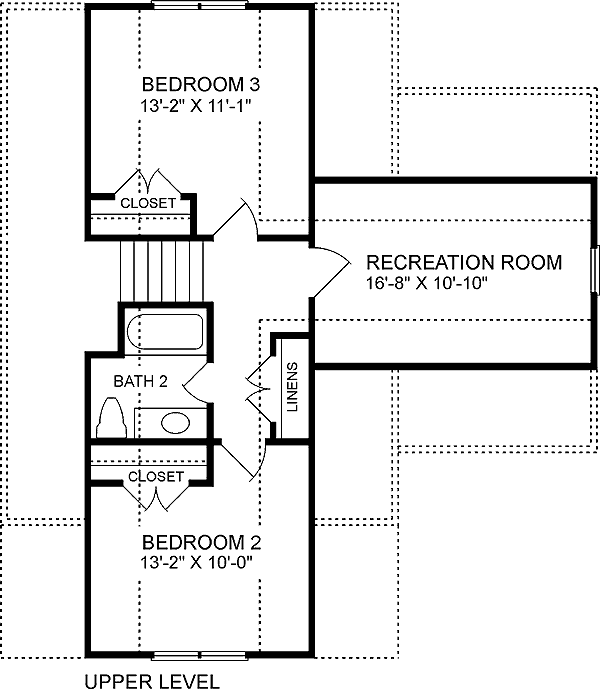

Upper Living Area:	516 sq ft
Bonus Area:	198 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement - * $125.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $50.00 Stem Wall Slab
Exterior Walls:	2x4
House Width:	36'
House Depth:	39'6
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	19' from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
Porch:	196 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

Plans include complete working drawings.

all four elevations (front, sides, and rear)

foundation and details -- all girders, piers, and double joists are dimensioned; floor joist direction, size & spacing are labeled

floor plan -- all rooms, door, and windows are labeled and dimensioned; ceiling joist direction, size & spacing are labeled; beams in ceiling are shown and labeled

roof plan -- rafter direction, size & spacing are labeled; all hips, valleys & supports are labeled

millwork such as cabinets & fireplaces

framing -- wall section & details showing each framing end condition

vent calculations -- for attic and foundation

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: On House Plan 45475, What is the roof pitch and what are the dimensions of the front porch?

A: Thank you for your interest in our house plan! Per the client query please see below. The roof pitch is 12:12, and the front porch measures 8 feet deep by 24 feet wide.

View Attached File

Q: Does this plan come with where all the plumbing goes? And if instead of siding can you put brick?

A: The floor plan shows where all the plumbing fixtures are located. You can buy a separate plumbing schematic if you want a diagram of the water and drain lines. You can get the plan in brick if you want.

Q: I'd like to know the measurements of master bedroom downstairs and the width of stair going up stairs

A: The master bedroom is roughly 14x12. The stair width is roughly 3.67 feet wide.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
