2 Car Garage Plan 47072
2 Car Garage | Plan 47072
Plan Pricing
Please take note that the designer's office will be closed December 23, 2024 – January 1, 2025 to celebrate Christmas and the New Year. They will resume on January 2, 2025.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Bonus Area: | 456 sq ft |
| Garage Area: | 608 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 28' |
| House Depth: | 22' |
| Number of Stories: | 2 |
| Max Ridge Height: | 20'5 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
Plan Description

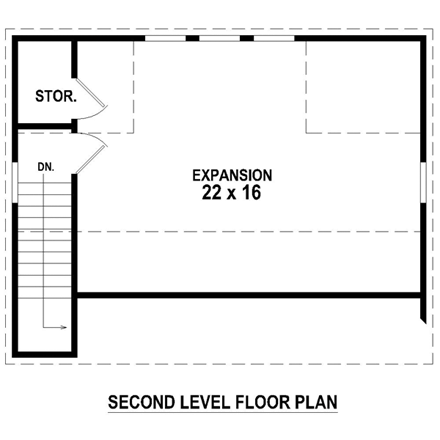

Add this two-car garage plan to your property and you’ll rest assured your cars are parked safely inside when not on the road. Behind an overhead door, the main level offers a double garage bay with storage space totaling 608 square feet. At the top of the stairs, a loft delivers 456 square feet of room to grow. Use the loft as a storage area for seasonal items and family treasures or finish it for a hobby room or home office. You’ll appreciate the storage closet upstairs. Form follows function with this garage loft plan with storage.
What's Included?
b)Roof Plan: Drawings indicating roof slopes and unique conditions.
c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.
d)Building Sections: Drawings cut through important locations in the structure.
e)Construction Details: Drawings showing specific construction of building elements at a large scale.
f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.
g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.
h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Q & A
Previous Q & A
A: This plan is an incomplete plan. There are a few things that will need to be done and checked if sold. That could take 3-4 weeks to get done. From what has been done it looks like the center of the 2nd level has a 10' ceiling height. The dashed lines indicate an 8' ceiling height that coffers up to the 10'. I hope this answers the question. Have a good day! Suzie
A: dimensional lumber is used and the ridge ht is 20'-5"
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Elevation

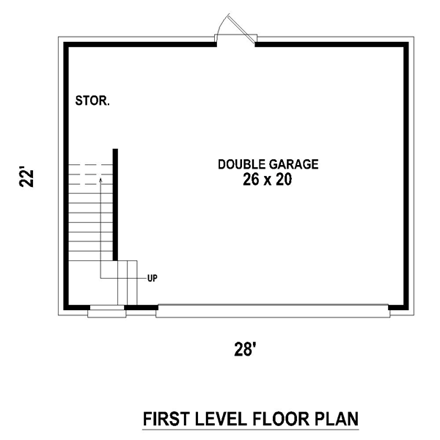

Level One
