Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Garage Area: | 1183 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 43' |
| House Depth: | 28' |
| Number of Stories: | 1 |
| 3/4 Baths: | 1 |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
Plan Description
Here is a multi-purpose three-car garage plan designed to do more. Behind three overhead doors you’ll find a triple bay garage with 1183 square feet of usable space. Store the family vehicles, lawn and garden tools, an ATV, and more. There is a storage space in the back right corner that works well for organizational shelves or cabinets and a workbench along the back wall for the family handyman. A full bath with shower and seat serves as a pool bath keeping guests out of the main home. And if you don’t have a pool, you’ll still appreciate the bath for cleaning up after dirty jobs in the yard or repairing a car. A 10’ ceiling and two personnel doors (one in the bath) connect with the outdoors for convenient access. Don’t miss the stairs leading to the second floor loft. Use this future space any way you wish. Delivering a practical combination of thoughtful features, this garage loft plan with storage and workshop will add function and usable space to your residence.
What's Included?
b)Roof Plan: Drawings indicating roof slopes and unique conditions.
c)Exterior Elevations: Drawings showing appearance and the types of materials used in the construction.
d)Building Sections: Drawings cut through important locations in the structure.
e)Construction Details: Drawings showing specific construction of building elements at a large scale.
f)Electrical Plans: General electrical layout - light fixture and outlet locations, circuit diagrams.
g)SLAB Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure.
h)A building license: “A single-use licensed for construction at one location only.” If design is to be used at subsequent locations, a discounted re-use license is required.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: That is the frame dimensions. The actual dimensions are 42’-9” wide x 27’-3” deep without brick. The plan is scaled for 18 x 24 paper.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

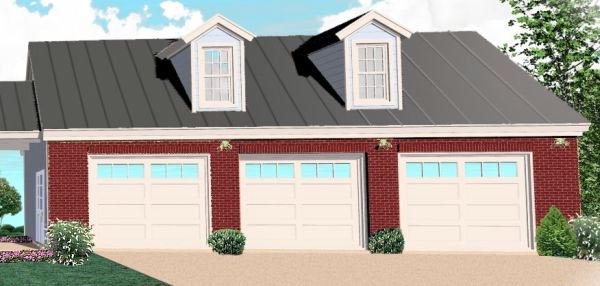

Elevation
