2 Car Garage Plan 50683

• PDF File: $600.00
• 5 Sets: $775.00
• 5 Sets plus PDF File: $850.00
• CAD File: $950.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $245.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $295.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Bonus Area:	347 sq ft
Garage Area:	616 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $295.00
House Width:	28'0
House Depth:	22'0
Number of Stories:	2
Half Baths:	1
Max Ridge Height:	15'11 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Truss
Main Ceiling Height:	8'0
Upper Ceiling Height:	4'4

* May require additional drawing time.

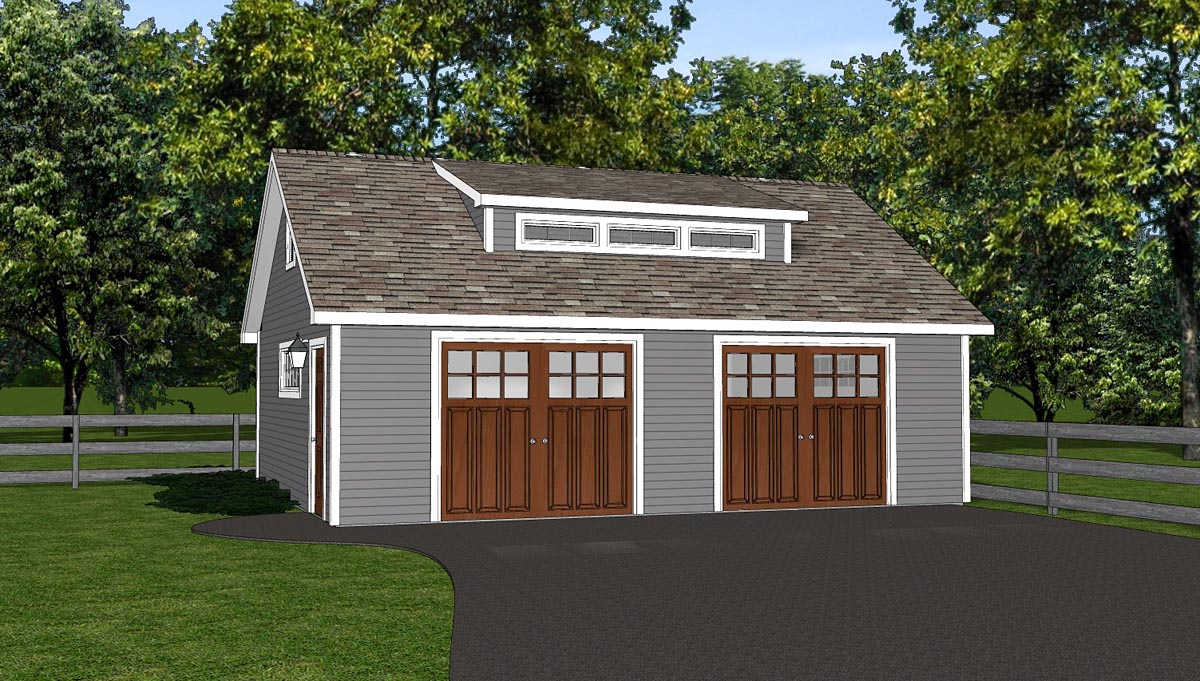

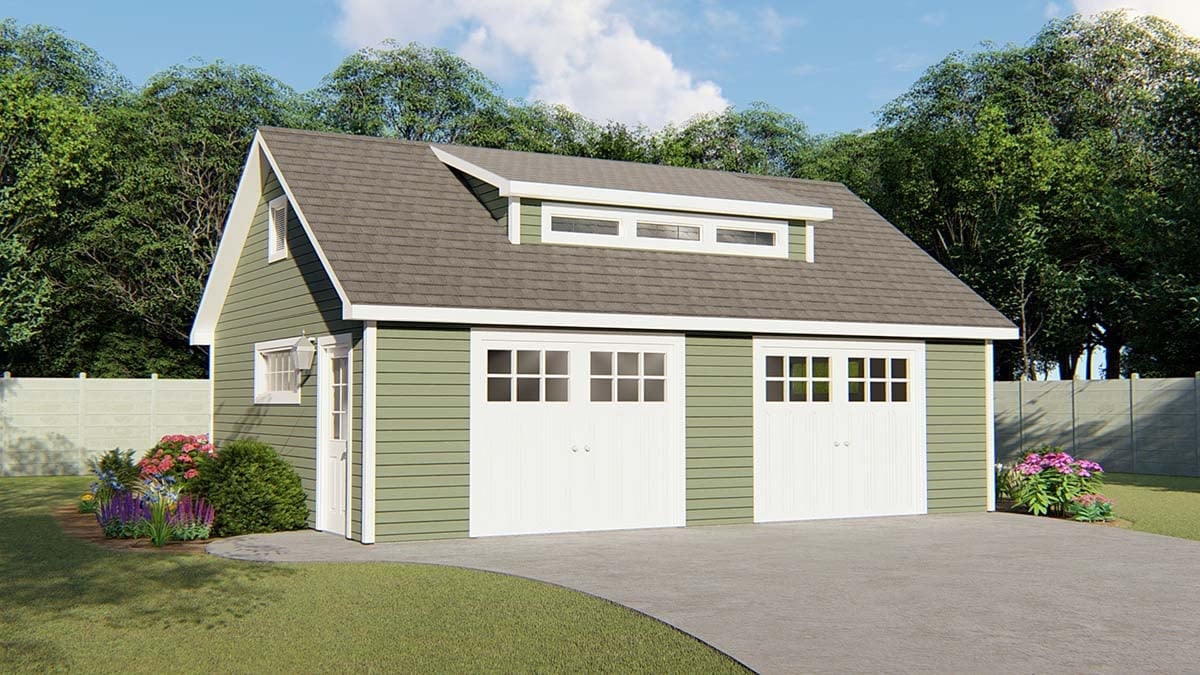

Garage Plan 50683 with 616 Sq Ft, 2 Car Garage

Discover the versatility and practicality of Garage Plan 50683, a thoughtfully designed detached garage plan offering 616 square feet of space. Perfect for homeowners seeking expanded vehicle storage, a dedicated workshop, or a flexible bonus area, this two-story plan brings both function and curb appeal to your property.

The exterior of Garage Plan 50683 boasts classic lines and a balanced roofline with an 8:12 pitch, complemented by a clean, inviting façade. At 28 feet wide and 22 feet deep, the structure fits comfortably on a variety of lot sizes while maximizing useable space. The detached design makes it an ideal addition to suburban and rural properties alike, enhancing your home's overall value and utility.

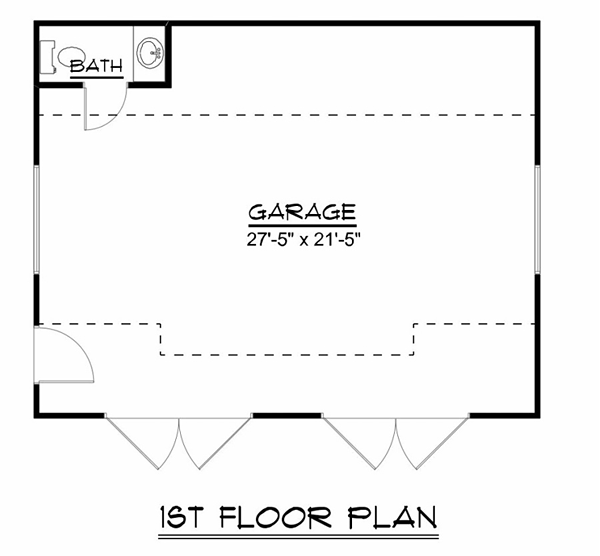

Inside, the main level is dedicated to a spacious two-car garage, easily accommodating vehicles, storage, or hobby equipment. With a generous 8-foot main ceiling height, there's ample vertical clearance for taller vehicles or additional storage solutions. The thoughtful layout includes a convenient half bath, making it easy to clean up after projects or extended time in the garage without needing to re-enter your main home.

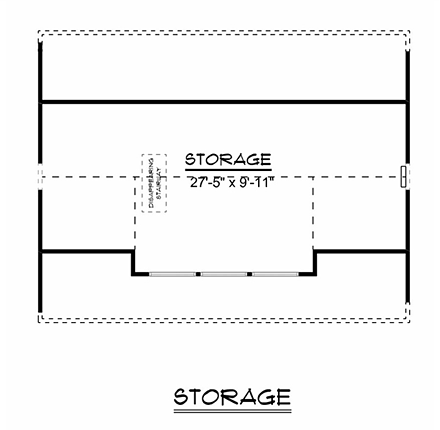

Upstairs, a 347 square foot bonus area offers endless possibilities—convert it into a home office, studio, exercise room, or seasonal storage area. The upper level features 4'4” ceiling heights, creating a cozy yet functional retreat above the garage.

This garage plan is available with a slab foundation, ensuring straightforward construction and long-term durability. The truss roof framing and 30 psf roof load rating provide robust weather protection in various climates.

Whether you're an auto enthusiast, a DIYer, or simply in need of extra space, Garage Plan 50683 delivers a customizable solution without sacrificing style. With its blend of practical garage features and a bonus upper level, it's the perfect choice for families, hobbyists, or anyone looking to expand their property's potential with a quality detached garage plan.

Title page

4 elevations, all details, notes, etc...

Floor plans (1st, 2nd, bsmt, etc...)

Roof plan

Wall sections, sometimes building cross sections

Foundation plan & Foundation details

General notes page

Electrical plans for each floor.

Miscellaneous column, bracket, details, stair sections.

What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans, plumbing and hvac (We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
