House Plan 51909

• PDF File: $1,345.00
• 5 Sets plus PDF File: $1,595.00
• PDF File Unlimited Build: $2,045.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $2,445.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $250.00
  Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.
• Right Reading Reverse: $225.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $495.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $100.00

Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.

Available Foundation Types:

• Basement : $395.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $100.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $325.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1934 sq ft
Main Living Area:	1934 sq ft
Garage Area:	732 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $100.00 Slab
Exterior Walls:	2x4 2x6 - * $325.00
House Width:	56'10"
House Depth:	74'8"
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	22'7" from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	202 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'0"

* May require additional drawing time.

Special Features:

• Brick or Stone Veneer
• Pantry
• Rear Porch
• Storage Space

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

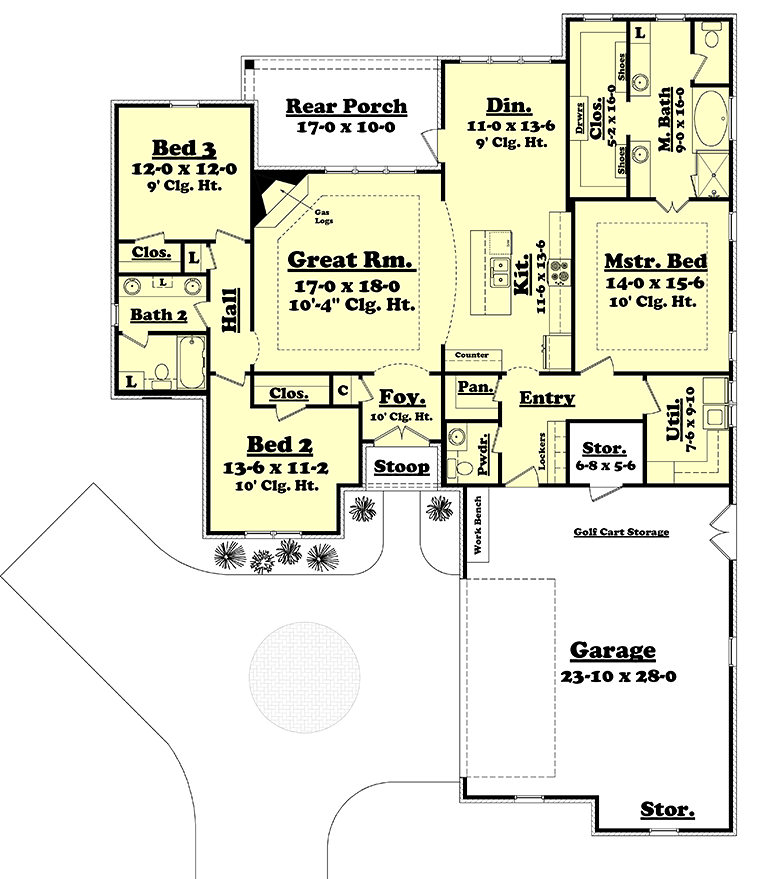

Dimensioned Floor Plan – Electrical may be shown.

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

ITEMS NOT INCLUDED

Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.

Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.

Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
