Multi-Family Plan 52841
Modern Style with 9 Bed, 3 Bath
sq ft
4104beds
9baths
3bays
0width
30'depth
46'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
This designer cannot sell CAD files to Quebec customers. DELAY for plans by this designer: Orders placed after July 20 will not ship until the week of August 7 because of the annual Canada Construction Holiday.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 4104 sq ft |
| Lower Living Area: | 1368 sq ft |
| Main Living Area: | 1368 sq ft |
| Upper Living Area: | 1368 sq ft |
| Garage Type: | None |
| Foundation Types: | Basement |
| Exterior Walls: | 2x6 |
| House Width: | 30'0" |
| House Depth: | 46'0" |
| Number of Stories: | 3 |
| Bedrooms: | 9 |
| Full Baths: | 3 |
| Max Ridge Height: | 32'0" from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Truss |
Special Features:
Plan Description
This triplex has two and a half floors and has large two-bedroom apartments, each with their own private entrance. All units are identical. The livable surface area is 1,368 sq. ft. Other than the three bedrooms, there is an open-concept area with a living room, a dining room as well as a kitchen with a three-person island. The kitchen counter is L-shaped. There is a complete bathroom with both a bath and shower as well as a laundry corner. The patios are in the back.
What's Included?
Foundation Plans: All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact Familyhomeplans.com of your plan.)
Interior Elevations: (call 1-800-235-5700 before ordering to confirm availability) show the specific details of cabinets (kitchen, bathroom). We suggest contacting local cabinet and fireplace distributors for sizes and styles.
Schematic Electrical Layouts: (call 1-800-235-5700 before ordering to confirm availability) show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house.
NOTE: Due to regional variations, local availability of materials, local codes, methods of installation, and individual preferences, it is impossible to include detail on heating and plumbing work on your plans. The duct work, venting, and other details will vary depending on the type of heating and cooling system (forced air, hot water, electric, solar) and the type of energy (gas, oil, electricity, solar) that you use. These details and specifications are easily obtained from your builder, contractor, and/or local suppliers.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

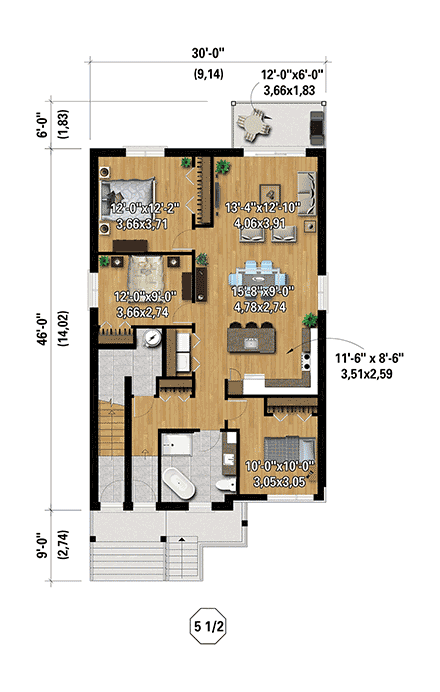

Level One

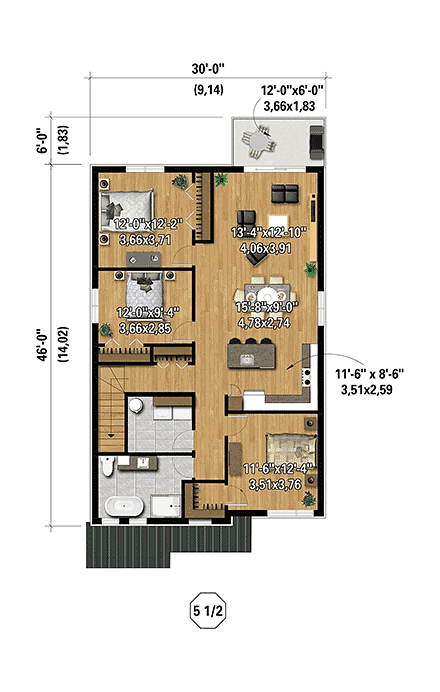

Level Two
Lower Level
Quick Specs
4104 Total Living Area1368 Lower Level
1368 Main Level
1368 Upper Level
9 Bedrooms
3 Full Baths
30'0" W x 46'0" D
Quick Specs
4104 Total Living Area9 Bedrooms
3 Full Baths
30'0" W x 46'0" D
Pricing
PDF File: $1,550.005 Sets: $1,595.00
5 Sets plus PDF File: $1,770.00
CAD File: $2,570.00
more info
Rear Elevation
Photographs may show modified designs.
