House Plan 55732

• PDF File: $1,350.00
• CAD File: $2,050.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3368 sq ft
Main Living Area:	3368 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	58'
House Depth:	95'
Number of Stories:	1
Bedrooms:	3
Full Baths:	3
Half Baths:	2
Max Ridge Height:	25' from Front Door Floor Level
Primary Roof Pitch:	5:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	537 sq ft
Formal Dining Room:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'

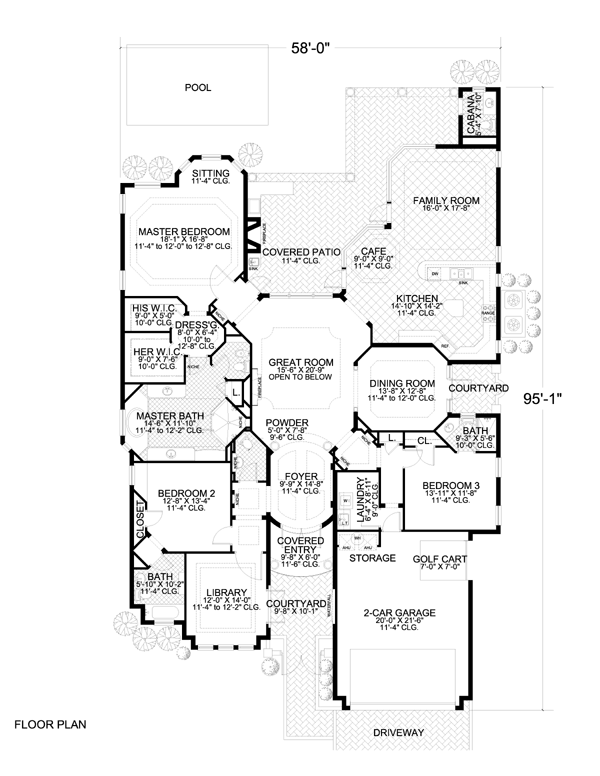

Floor Plan Each of our distinctive residential floor plans come with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights. Kitchen & Bath Layouts The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry. Elevations All residential floor plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations. Sections Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing. Structural Plans All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations. Foundation Plan Most of the Architect House Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes. Roof Plan Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members. Mechanical Plans Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications. Electrical Plans Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included. Plumbing Plan Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.
