Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,340.00

Plan Pricing

PDF File: $1,340.00
CAD File: $1,590.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $75.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Plumbing Plan : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2797 sq ft
Main Living Area:	2797 sq ft
Garage Area:	704 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Plumbing Plan
Exterior Walls:	2x4
House Width:	67'6
House Depth:	88'
Number of Stories:	1
Bedrooms:	3
Full Baths:	4
Primary Roof Pitch:	0
Roof Framing:	Unknown
Porch:	63 sq ft
FirePlace:	Yes
1st Floor Master:	Yes

What's Included?

1. Cover Page (A-1) - Front Elevation of House, Sheet Index, General Notes

2. Plumbing Plan (A-2) - (**Our plans do not show an actual foundation plan with slab thickness and structural reinforcement due to the fact that the plans need to be engineered according to the local codes where the house is going to be built.) Basic slab or stemwall foundation layout, Exterior dimensions, Dimensions to plumbing fixtures, General Notes

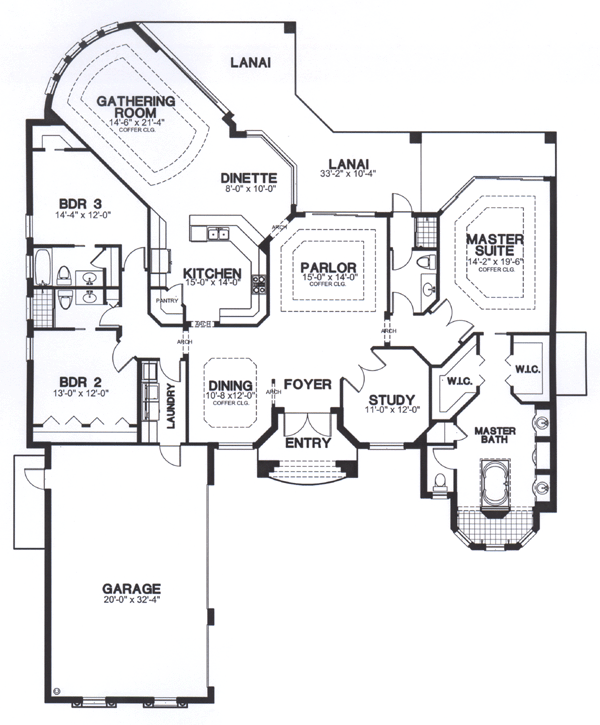

3. Note Plan (A-3) - Floor plan, General notes, Basic window and door schedules

4. Dimension Plan (A-4) - Interior dimensions of plan, Exterior dimensions of plan

5. Elevations (A-5) - 4 Elevations of house (Front, Rear, Left and Right), General call outs, Roof pitch, Truss bearing heights, General notes, Details (where applicable)

6. Roof Plan (A-6) - Floor plans with a general roof design layout, Overhang dimensions, Truss bearing heights, beam slopes, and beam height changes, General notes

7. Sections Page (A-7) - General wall sections, Misc. details (stairs, tie beam, window and door buck details)

8. Electrical Plan (E-1) - General layout of switches, outlets and wiring, General television, and phone jack locations, General notes

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the ceiling heights for each room of this plan?

A: ALL THE BEDROOMS ARE 10'-0" CEILINGS. THE MASTER BEDROOM COFFERS UP TO 12' CEILING. THE REST OF THE MAIN LIVING AREAS ARE AT 12'-0" CEILINGS. THE COFFERS STEP UP TO 14'-0" THANK YOU!

Q: RE: HOUSE PLAN 58900 What are the rectangle boxes adjacent to the walk in closet and the garage(outside of the house)? Do you know what is cost of the materials for this plan? Do you know any builders in Michigan that have built his home? Can this home be built in Michigan? Is a similar home that is built in Mchigan that we could drive by just the external part?

A: THANK YOU FOR YOUR INQUIARY! THE BOXES THAT YOU ARE SEEING ON THE RIGHT AND LEFT ARE CONCRETE A/C PADS. I DO NOT NO THE COSTS OF MATERIALS FOR THIS HOUSE BEING BUILT IN MICHIGAN. THIS HOUSE WAS ORIGANALLY DESIGNED FOR FLORIDA MEANING IT IS CONCRETE BLOCK CONSTRUCTION. IF I WERE TO BUILD THIS HOUSE IN MICHIGAN I WOULD FRAME IT WITH 2X6 EXTERIOR WALLS. AT THIS POINT THIS HOUSE HAS NOT BEEN BUILT IN MICHIGAN. THANKS

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
