4 Car Garage Apartment Plan 59991
Garage Apartment - Horse Stable, Horse Barn, Barn with Loft | Plan 59991
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 741 sq ft |
| Main Living Area: | 741 sq ft |
| Bonus Area: | 810 sq ft |
| Garage Area: | 1543 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 4 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 2x6 - * $150.00 |
| House Width: | 44'0 |
| House Depth: | 52'0 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 26'3 from Front Door Floor Level |
| Primary Roof Pitch: | 4:12 |
| Roof Load: | 40 psf |
| Roof Framing: | Stick |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 10'0 |
| Upper Ceiling Height: | 9'0 |
Plan Description

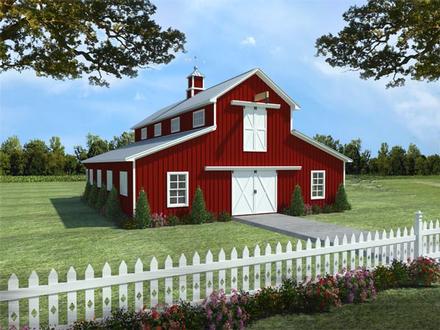

Horse Stable, Horse Barn, Barn with Loft

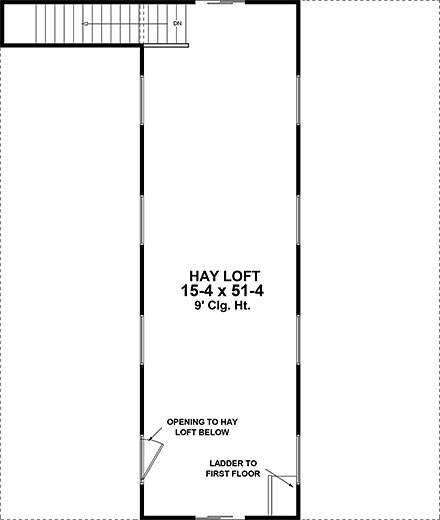

This full featured apartment barn design includes a drive through tractor storage, hay storage, tack/feed room, 2 animal stalls, a live in apartment, and hay loft above.What's Included?
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
This Plan is a USDA Rural Development Certified Plan
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hello, Yes, the barn can be converted into a house. We would need either a hand sketch or list of what you want inside for the layout, including the upstairs to be able to provide an exact quote. We guestimate the fee would be between $500 and $1000 in addition to the plan package purchase. Allow 5 to 8 working days for preliminary plans, and another 10 to 14 working days for final plans. Thanks.
A: Hello, Yes, those changes would work. We would likely flip the living space so the stairs end up in the living area, instead of bedroom, and it would be a little wider upstairs. We would replace the loft sliding doors with windows, and add windows along the sides upstairs however you want. The modification fee would be $595 in addition to the purchase of the five set or pdf plan package. When you are ready to proceed, please call the website to place your order for the plan package. Be sure to tell them that you are having modifications done by the designer. They will process the order, and send a copy to us. We will then proceed with preliminary plans for your review. We would request payment when we have completed the final plans. Allow 8 to 10 working days for preliminary plans, and another 12 to 18 working days for final plans. Timelines change with our workload, and may vary depending on when you decide to proceed. We look forward to working with you. PS- We do not offer a materials list for this barn at this time. We may offer it in the future, but we don’t yet have it. So please do not order the materials, as we will just have to refund that portion later. It is shown as an option online, but has not yet been created. Local builders and carpenters are the best source for a materials list. Modification Department Stephen Mathis, CPBD
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
