Plan Pricing from $3,142.86

Plan Pricing

PDF File: $3,142.86
Reproducible Set: $3,142.86
CAD File: $3,142.86
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $350.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $45.00

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

Concrete: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	4428 sq ft

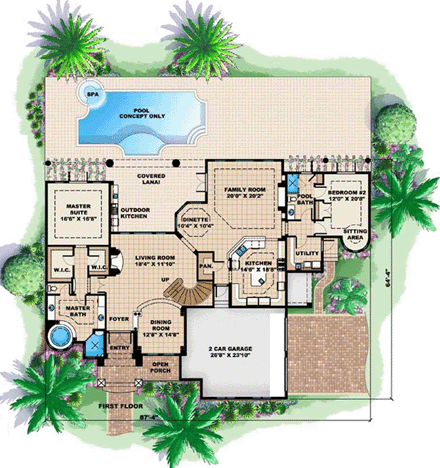

Main Living Area:	2956 sq ft

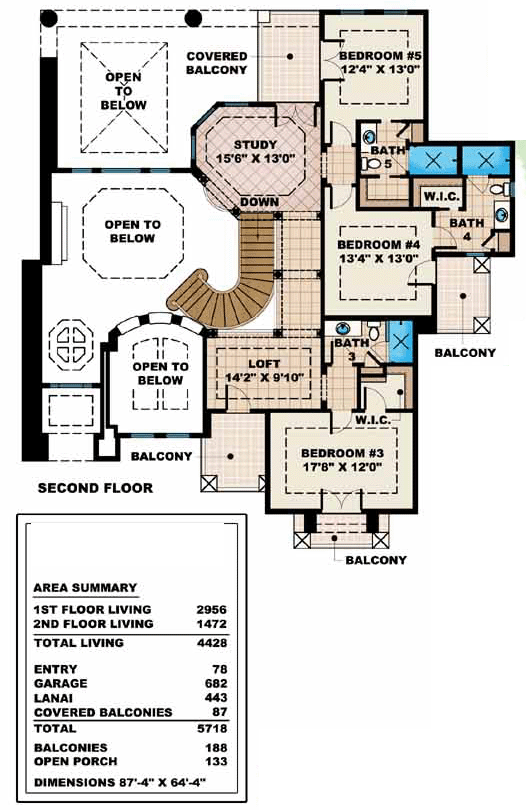

Upper Living Area:	1472 sq ft
Garage Area:	682 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	Concrete
House Width:	65'
House Depth:	88'
Number of Stories:	2
Bedrooms:	5
Full Baths:	5
Max Ridge Height:	34' from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	78 sq ft
Deck:	443 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes

What's Included?

Elevations

Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Slab Plan

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan

Drawn at 1/8" to 1/4" = 1'-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers

Building Sections

Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
