House Plan 69020
Southern Style with 3 Bed, 2 Bath, 3 Car Garage | Plan 69020
sq ft
1944beds
3baths
2bays
3width
65'depth
51'
Plan Pricing
Additional Notes
CAD file, if ordered, will take 7-10 business days to fulfill.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1944 sq ft |
| Main Living Area: | 1944 sq ft |

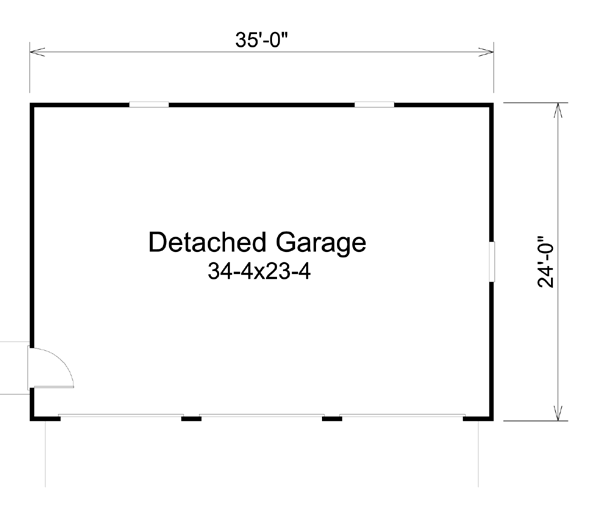

| Garage Area: | 801 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Basement Crawlspace - * $250.00 Slab - * $250.00 |
| Exterior Walls: | 2x4 2x6 - * $150.00 |
| House Width: | 65' |
| House Depth: | 51' |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 24' from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Load: | 30 psf |
| Roof Framing: | Truss |
| Porch: | 850 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
What's Included?
Floor Plans: Placement of walls, windows, doors, plumbing fixtures, electrical outlets, beams, etc..
Exterior Elevations: Illustrates the front, rear, and sides of the house, in detail, including instructional notes such as materials, roof pitch, ceiling heights, etc.
Interior Elevations: Views of special interior elements such as kitchen & bath cabinets, fireplaces, etc.
Cross Section: Views of areas such as load-bearing walls, stairs, trusses, or other structural elements.
Details: How to construct certain parts of your home, such as the roof system, stairs, or deck.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Good Afternoon, We have a similar plan put it is a different plan number. Look up Plan #69004. It has about 2,600 Sq. Ft. but you can always modify the plan to the right square footage you are looking for. Thank you, Juan
A: This plan specifies roof trusses and therefore there is no bonus room as designed. Modified trusses with a change to the stair arrangement could allow for a second level though.
A: There is not. These dormers are for the attic space.
A: The Breakfast Area is 8’-4” deep and 12’-0” wide. The Hearth Room is 7’-8” deep and 12’-0” wide.
A: The ridge height for this house is a little over 23’ above the first floor. The first floor has 9’ ceilings supported by trusses having a top cord (roof) slope of 8/12. With stick framing or modified trusses and not changing the exterior appearance of the house there would be sufficient room for a second level, except over the great room due to the 5/12 vaulted ceiling in that area. Two of the three dormers could be used for natural lighting. The front to back dimension of the second floor 8’ ceiling would be limited to about 11’ but the floor dimension could be approximately 20’ assuming 4’ pony walls in front and back.
A: Thank you for your inquiry. The square footage shows the heated and cooled living space as 1944. This does not include the garage or porches.
A: The covered patio measures 18’ X 10 ½’ and the front porch is 7 ½’ wide while the side porches are just under 6’ wide. The dormers are decorative and the attic is quite large but made up of trusses placed every 2’-0” on center.
A: Thank you for contacting us. The ceiling in the kitchen would look the same – it would be a flat ceiling and then the vault would begin where the wall was previously located. The scissor truss ends at that wall so additional support may be needed if the wall is removed.
A: The Great Room is the only room with a vaulted ceiling. You are correct about the dormers, they are not active and are in the attic space.
A: Yes, there is a 4 bed option for this home- 69004
A: The wall between the great room and kitchen/hall/entry is non-load bearing.
A: This plan has pre-engineered roof trusses, so there will be no interior bearing other than the steel I-beam in the basement to carry the load from the floor joists. Thanks.
A: Unfortunately, there is no attic space in this home plan. The dormers are just for aesthetics. Thanks.
A: Below are the room dimensions you requested. The standard plan does not show a 2nd floor, but the plans could be modified by a local architect or engineer using one of our reproducible plan options (reproducible master, PDF file or CAD package).
Laundry Room = 8’-0”x6’-11”
Entry = 7’-10”x12’-3” (including the closet)
A: The entry is 7’-10”x8’-7”
The laundry room is 8’-0”x6’-11”
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.

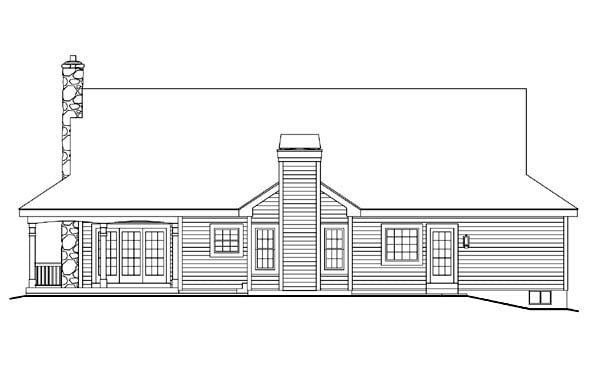

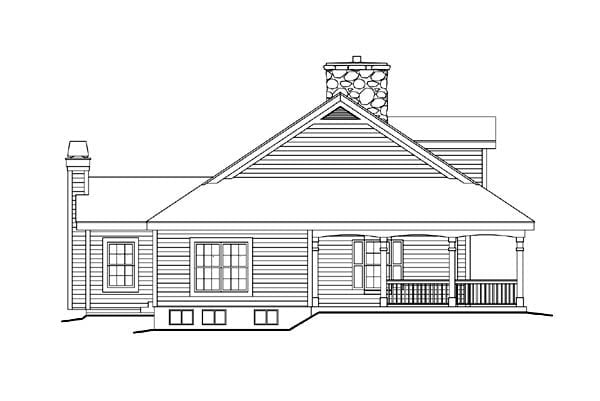

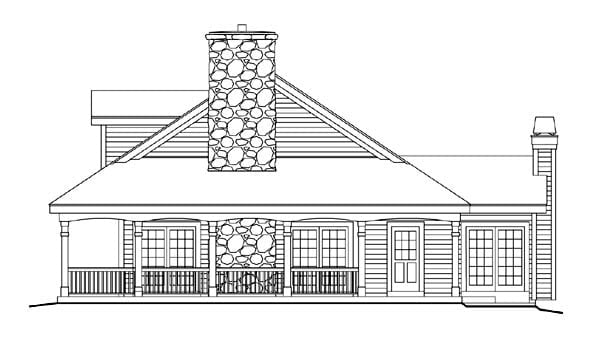

Elevation

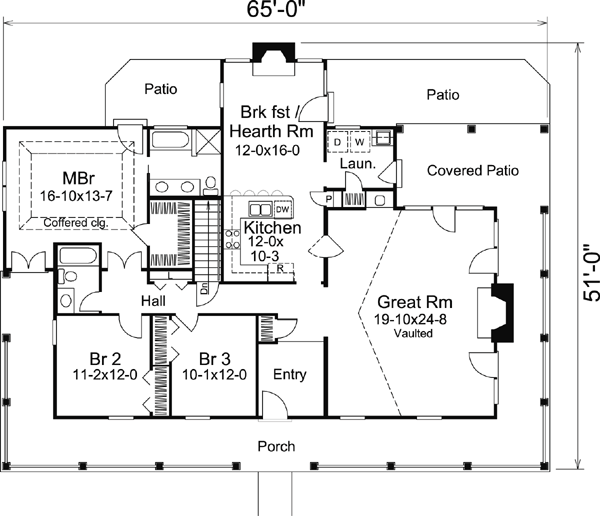

Level One

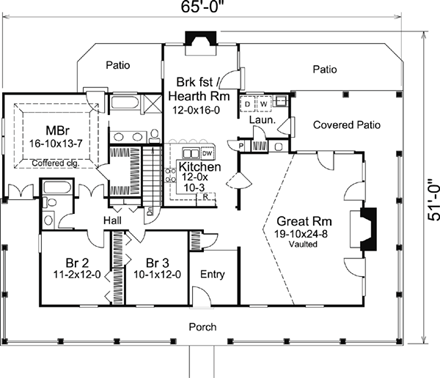

Alternate Level One
Quick Specs
1944 Total Living Area1944 Main Level
3 Bedrooms
2 Full Baths
3 Car Garage
65' W x 51' D
Quick Specs
1944 Total Living Area3 Bedrooms
2 Full Baths
3 Car Garage
65' W x 51' D
