Multi-Family Plan 73032

• PDF File: $5,100.48
• 5 Sets: $3,643.20
• 8 Sets: $3,974.40
• Reproducible Set: $5,100.48
• CAD File: $7,948.80
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $335.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $495.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3312 sq ft

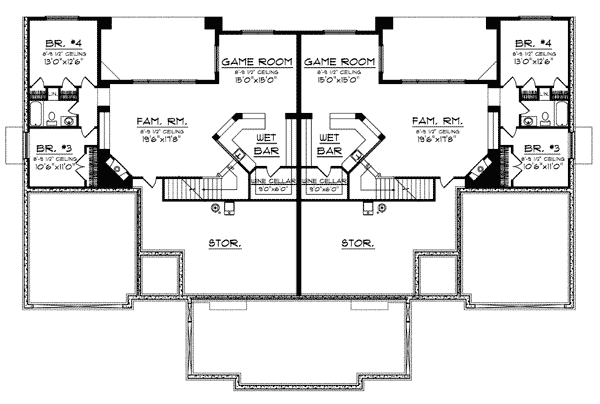

Lower Living Area:	1321 sq ft

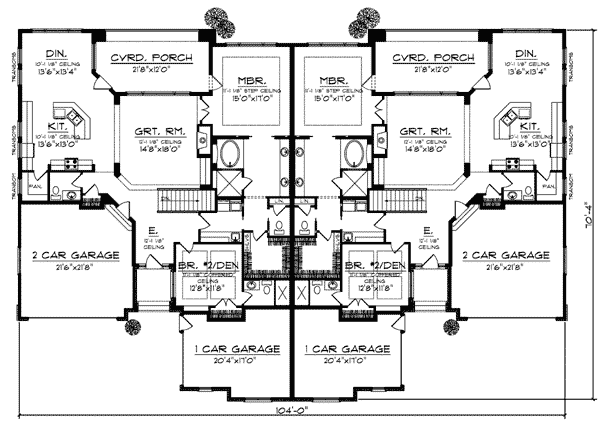

Main Living Area:	1991 sq ft
Garage Area:	789 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Basement Crawlspace - * $495.00 Slab - * $495.00
Exterior Walls:	2x6
House Width:	104'
House Depth:	70'4
Number of Stories:	1
Bedrooms:	8
Full Baths:	4
3/4 Baths:	2
Half Baths:	2
Max Ridge Height:	24'9 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	312 sq ft
FirePlace:	Yes
1st Floor Master:	Yes

* May require additional drawing time.

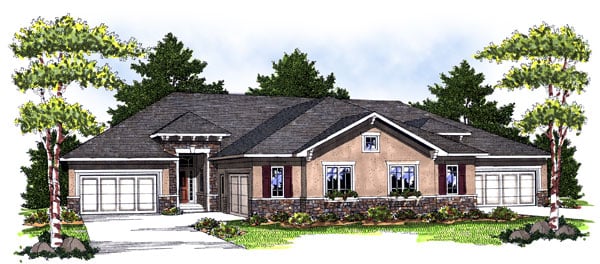

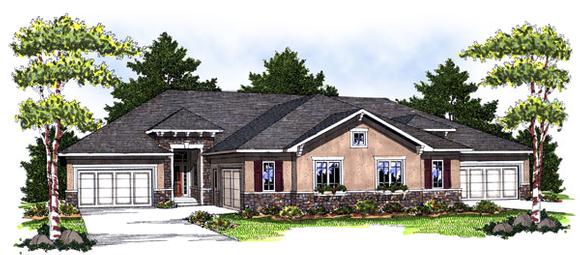

Cover sheet with Front Rendering.

Foundation and Floor Plans at 1/4" = 1'0" scale.

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
