Multi-Family Plan 73455

• PDF File: $3,666.74
• 5 Sets: $2,619.10
• 8 Sets: $2,857.20
• Reproducible Set: $3,666.74
• CAD File: $5,714.40
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $335.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Additional Notes

Main Floor: 1543 each unit.
Lower Level: 985 each unit
Bedrooms: 3 each unit.
Bathroom: full 0; three-quarter: 3 each unit.
Garage Stalls: 3 each unit.
Garage Sqft: 696 each unit

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $495.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4762 sq ft
Lower Living Area:	1890 sq ft
Main Living Area:	2872 sq ft
Garage Area:	1392 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Basement Crawlspace - * $495.00 Slab - * $495.00
Exterior Walls:	2x6
House Width:	100
House Depth:	60
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
3/4 Baths:	2
Max Ridge Height:	21 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	62 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9

* May require additional drawing time.

Designed to appeal to the craftsman sense, this duplex features two identical units with finished lower levels. An open floor plan where the eat-in island of the kitchen overlooks both the dining and great rooms creates a living area that is large and comfortable. Arched openings, a fireplace with built-in cabinets and step ceiling details are just some of the things you’ll love about these units. The master suite features a spacious walk-in closet and dual sinks. The second bedroom can also double as a den and is located just off the entry to the right. Downstairs each unit features a large family room with wet bar, an additional bathroom and a third bedroom with walk-in closet. Each unit is completed with a three-car garage and extra storage.

Cover sheet with Front Rendering.

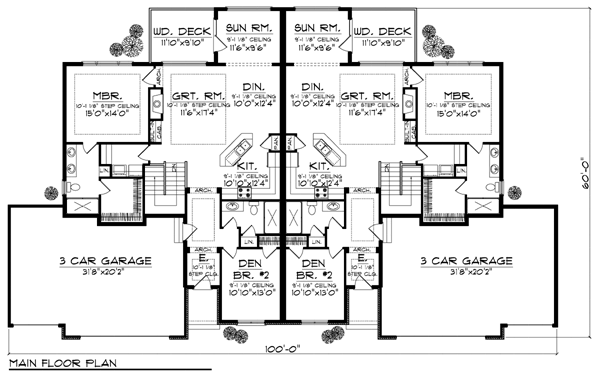

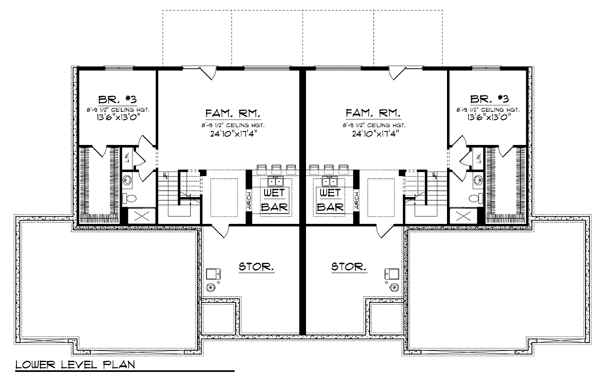

Foundation and Floor Plans at 1/4" = 1'0" scale.

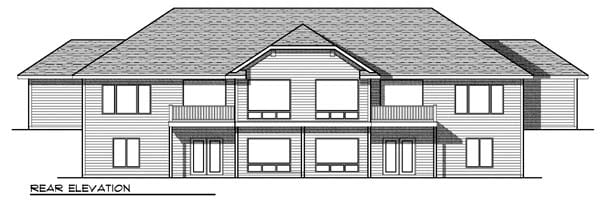

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
