Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Garage Area: | 490 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 |
| House Width: | 22' |
| House Depth: | 23' |
| Number of Stories: | 1 |
| Primary Roof Pitch: | 6:12 |
| Roof Framing: | Unknown |
What's Included?
General information and specifications
Foundation plan
Roof plan
Floor plans
Elevations
Wall sections, details
Electrical plan
They do not include structural engineering. That should be done locally to make sure you’re meeting local codes. Each jurisdiction is different.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The plans are 24” x 36” Electrical schematics are included. Plans include – foundation plan and details, roof plan, floor plans, elevations, wall sections and details and electrical schematic
A: I’m not sure I completely understand the question….but the length of the rafter on the longest side is 16’-4”
A: That would be a modification.
A: The carport is 8’ wide and 8’ tall. The garage door is 8’ wide and 7’ tall.
A: The roof pitch is 12/6
There is some storage above (5’ knee wall that vaults to 6’ – 10”)
A: The interior height of the garage is 8’. The storage space above the garage outside side walls is 4’-0” and at the ridge (top of vault) it could be as high as 6’-10” when complete.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

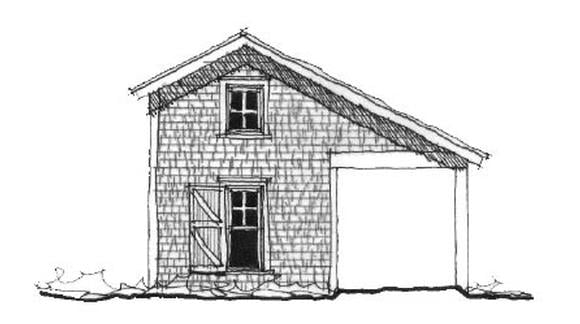

Elevation
Level One
Quick Specs
2 Car Garage22' W x 23' D
Quick Specs
2 Car Garage22' W x 23' D
