House Plan 75924
Mediterranean Style, 5377 Sq Ft, 4 Bed, 6 Bath | Plan 75924
sq ft
5377beds
4baths
4.5bays
5width
102'depth
129'
Plan Pricing from $3,571.43
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Additional Notes
Master Bedroom Tray 12' - 16'Master Bath Vaulted 12'
Living Room T&G w/beams 14' - 16'
Family Room Coffer w/beams 12' - 15'8
Dining Room Coffer w/beams 14' - 17'8
Kitchen Vaulted 12' - 13'4
Dinette Vaulted 12' - 13'4
Foyer Vault w/T&G 14' - 16'4
Study Double Coffer 14' - 18'
Bedroom 2 Coffered 12' - 13'8
Bedroom 3 Double Coffer 12' - 13'4
Bedroom 4 Vaulted 12' - 13'4
Baths Flat 10'
Pool Bath Flat 10'
Powder Bath Flat 10'
Lanai Level One Coffered 12'
Lanai Lounge Area Cupola 21'
THIS PLAN CANNOT BE SOLD FOR CONSTRUCTION ANYWHERE IN THE STATE OF FLORIDA WITHOUT DESIGNER APPROVAL. Please call for availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 5377 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 5 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 - * $767.14 Concrete |
| House Width: | 101'6 |
| House Depth: | 129'0 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 4 |
| Half Baths: | 2 |
| Max Ridge Height: | 33'1 from Front Door Floor Level |
| Primary Roof Pitch: | 8:12 |
| Roof Framing: | Truss |
| Porch: | 1702 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
Special Features:
Plan Description
Mediterranean Style, 5377 Sq Ft, 4 Bed, 6 Bath
Florida, Mediterranean Style House Plan 75924 with 5377 Sq Ft, 4 Bed, 6 Bath, 5 Car GarageWhat's Included?
Elevations
Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

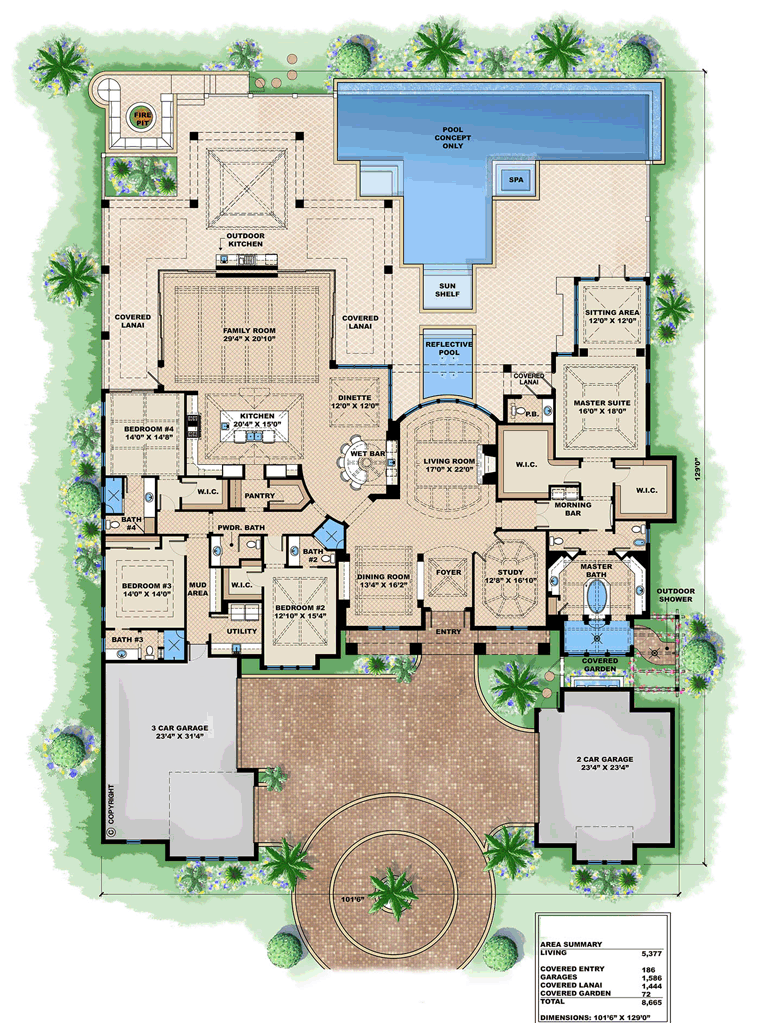

Floor Plans
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan
Drawn at 1/8" to 1/4" = 1'-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections
Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Drawn at 1/8" to 1/4" = 1'-0" Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators
Floor Plans
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Slab Plan
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan
Drawn at 1/8" to 1/4" = 1'-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections
Drawn at 1/8" to 1/4" = 1'-0" Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated
Typical Wall Sections
Drawn at 1/8" to 1/2" = 1'-0" Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
