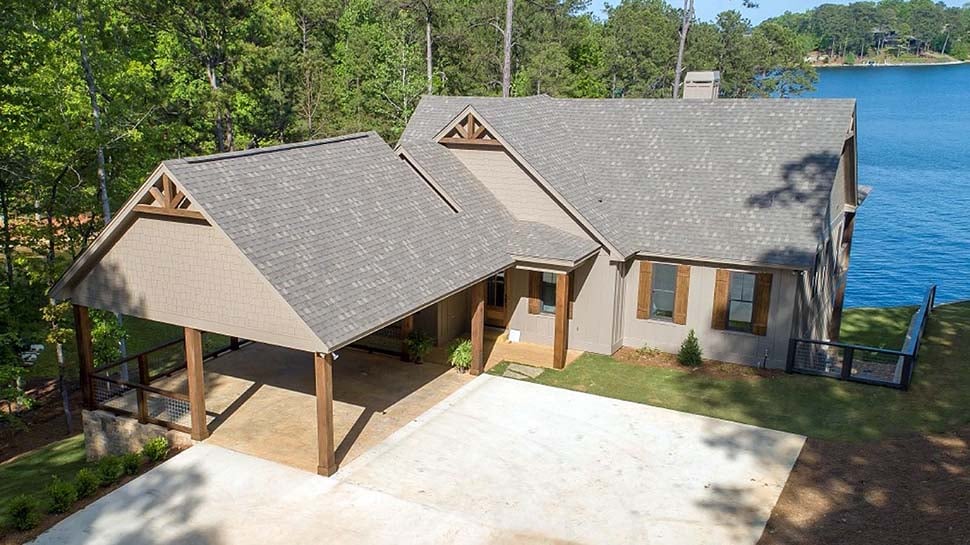

House Plan 78518

Traditional Style with 5 Bed, 4 Bath, 2 Car Garage | Plan 78518

sq ft

3062

beds

baths

bays

width

47'

depth

91'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $2,354.00

Plan Pricing

PDF Study Set: $2,178.00
Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
PDF File: $2,354.00
5 Sets: $2,134.00
8 Sets: $2,222.00
Reproducible Set: $2,530.00
CAD File: $2,662.00
Single Build License issued on CAD File orders.
Materials List: $533.50
Right Reading Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $40.00

Available Foundation Types:

Walkout Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3062 sq ft

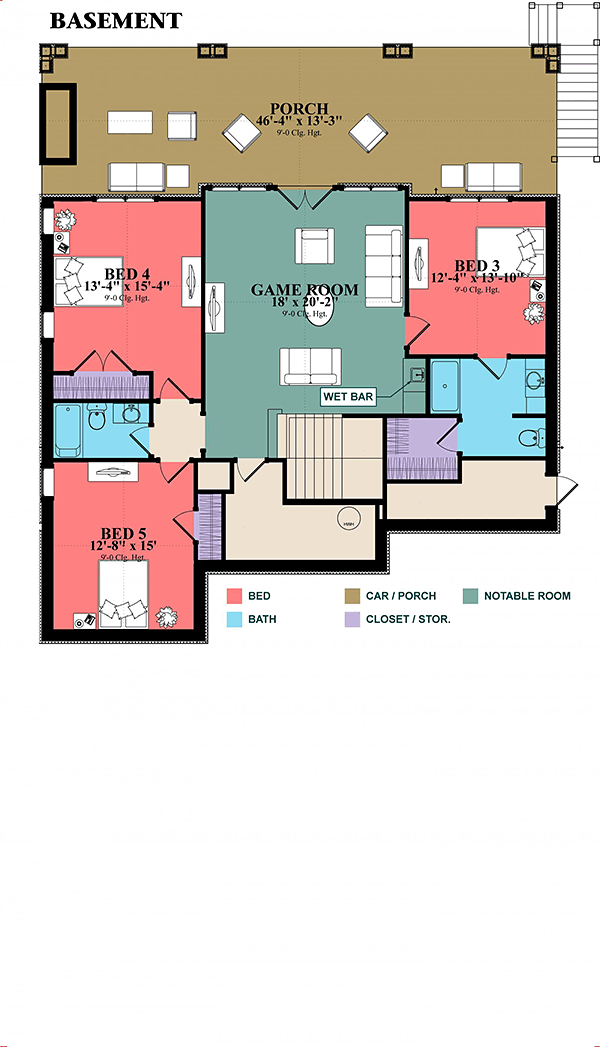

Lower Living Area:	1448 sq ft

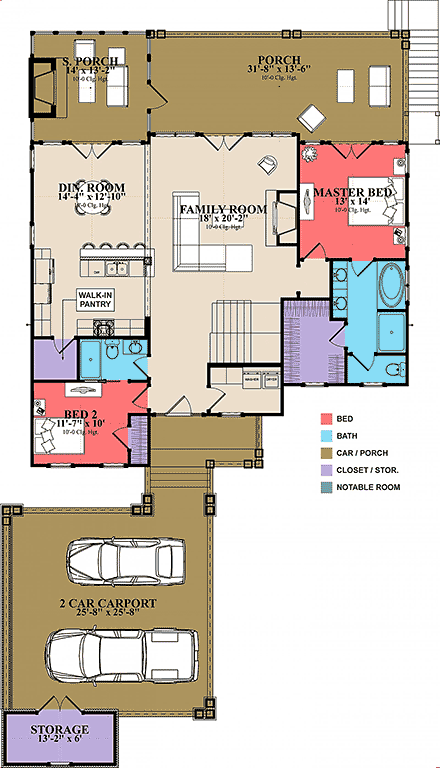

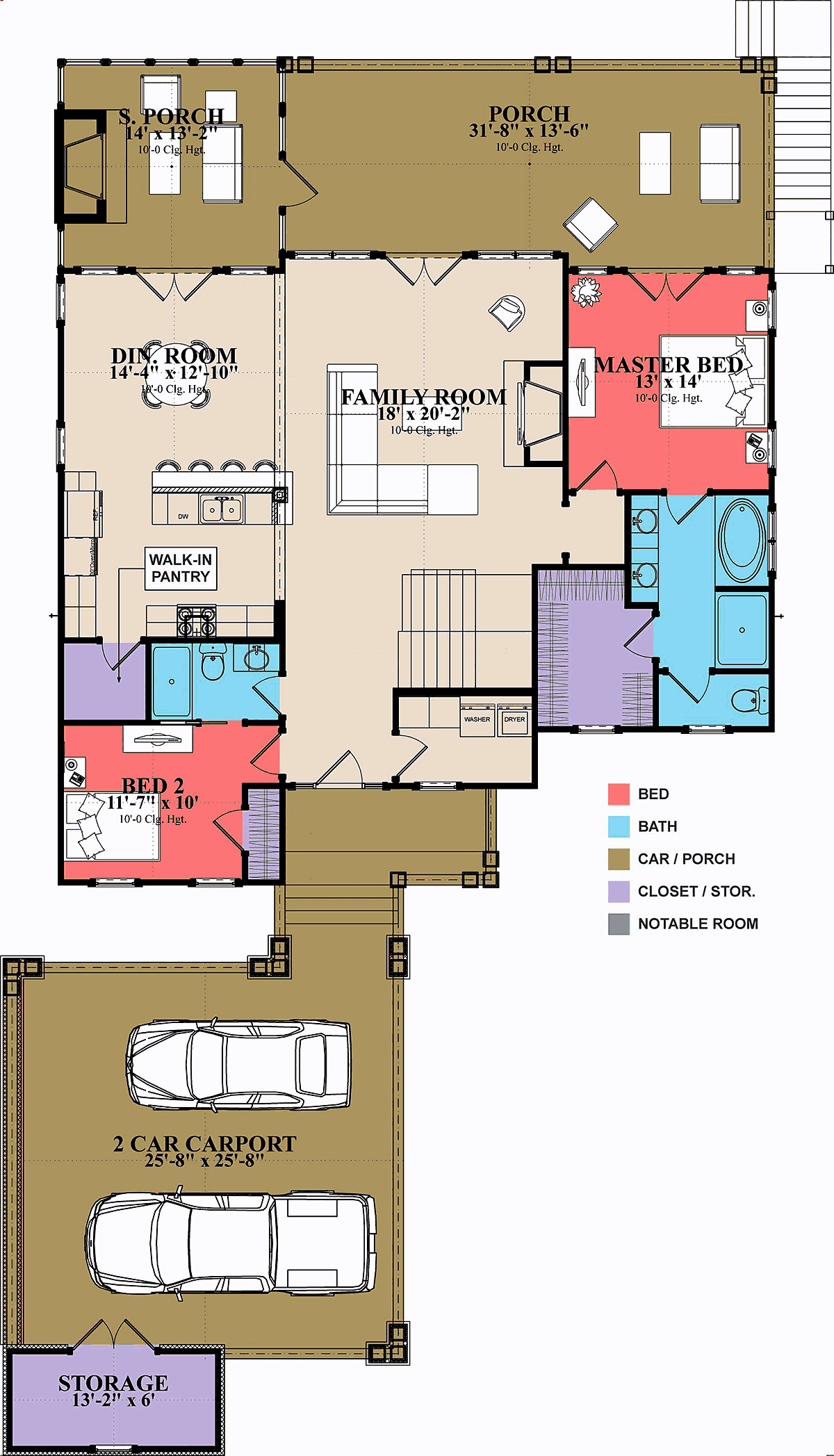

Main Living Area:	1614 sq ft
Garage Area:	893 sq ft

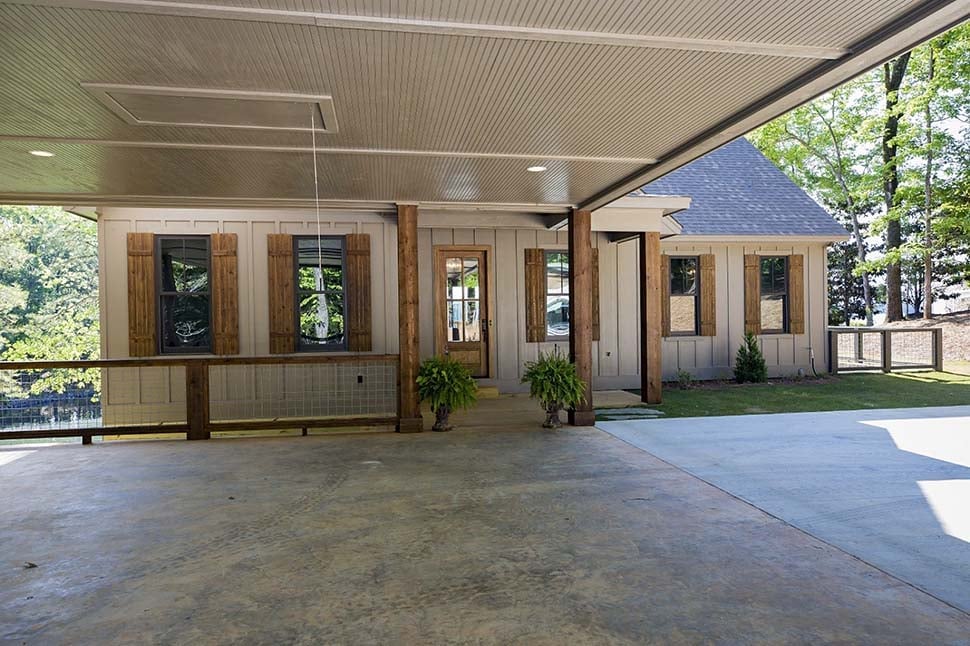

Garage Type:	Carport
Garage Bays:	2
Foundation Types:	Walkout Basement
Exterior Walls:	2x4
House Width:	46'4
House Depth:	90'1
Number of Stories:	2
Bedrooms:	5
Full Baths:	4
Max Ridge Height:	23'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Unknown
Porch:	1287 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'

* May require additional drawing time.

Special Features:

Entertaining Space
Front Porch
Hobby Room

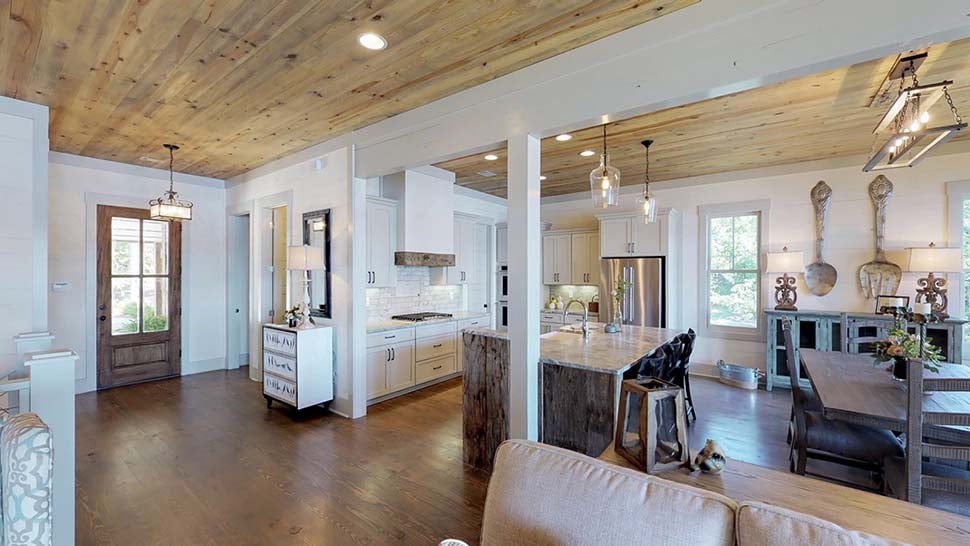

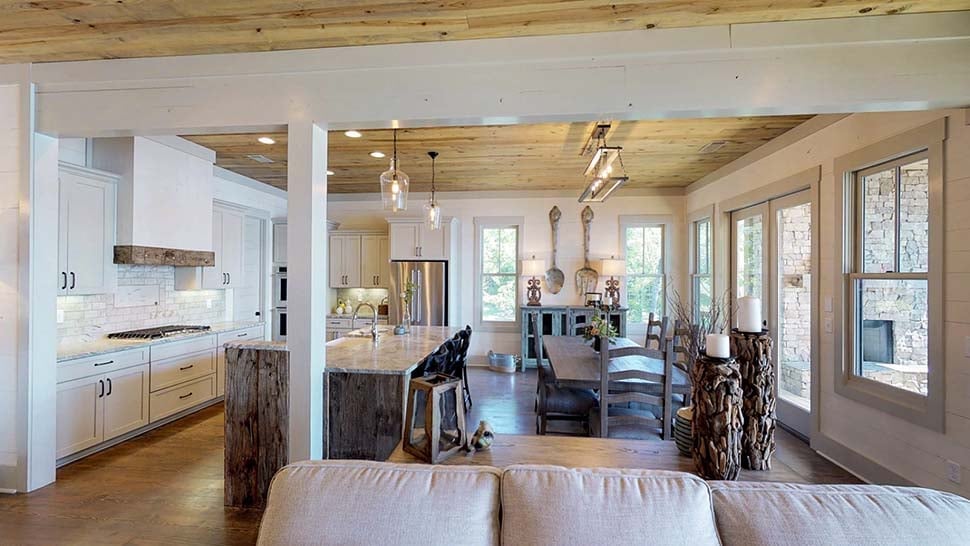

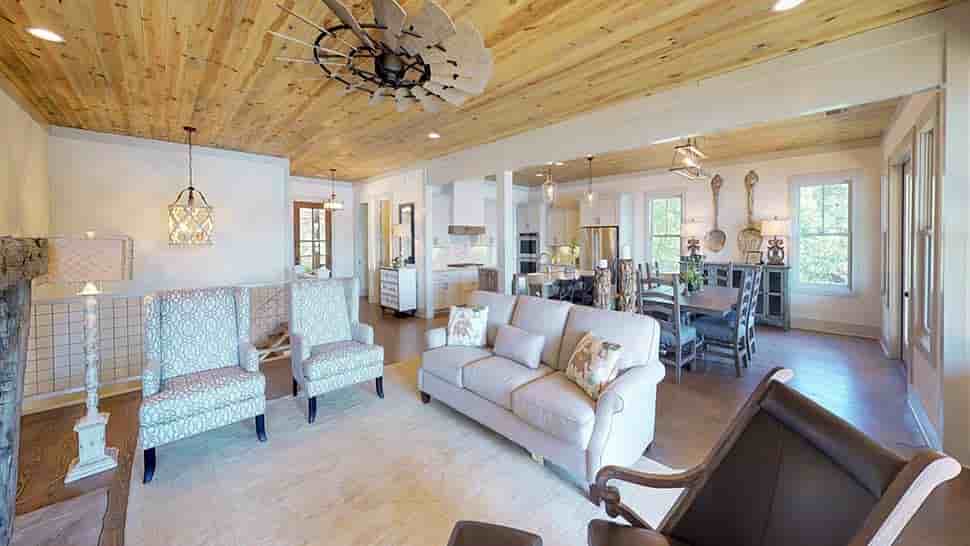

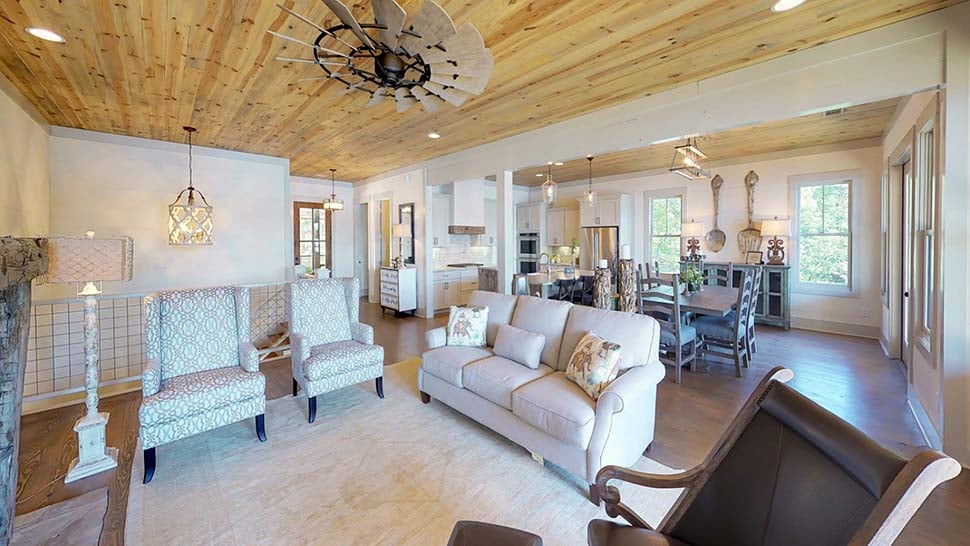

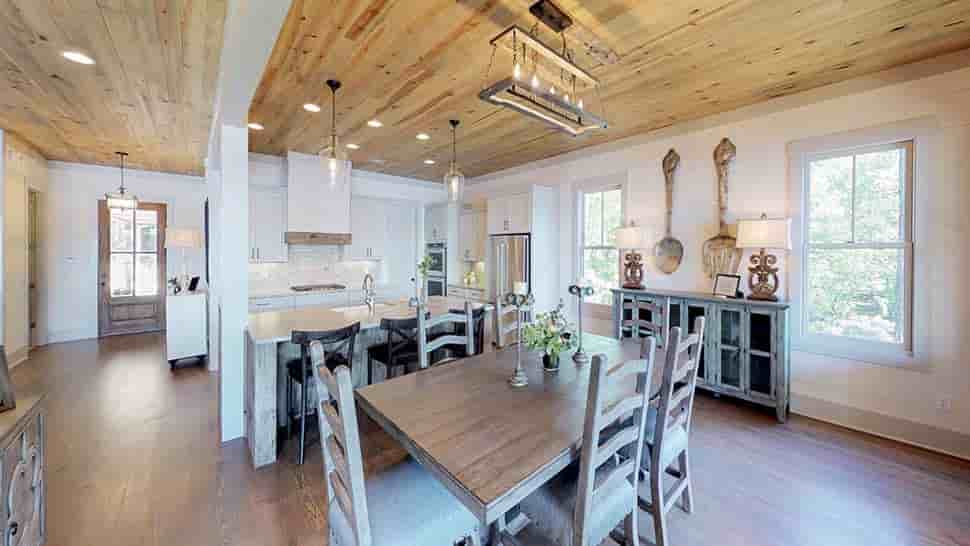

Open Floor Plan
Outdoor Fireplace

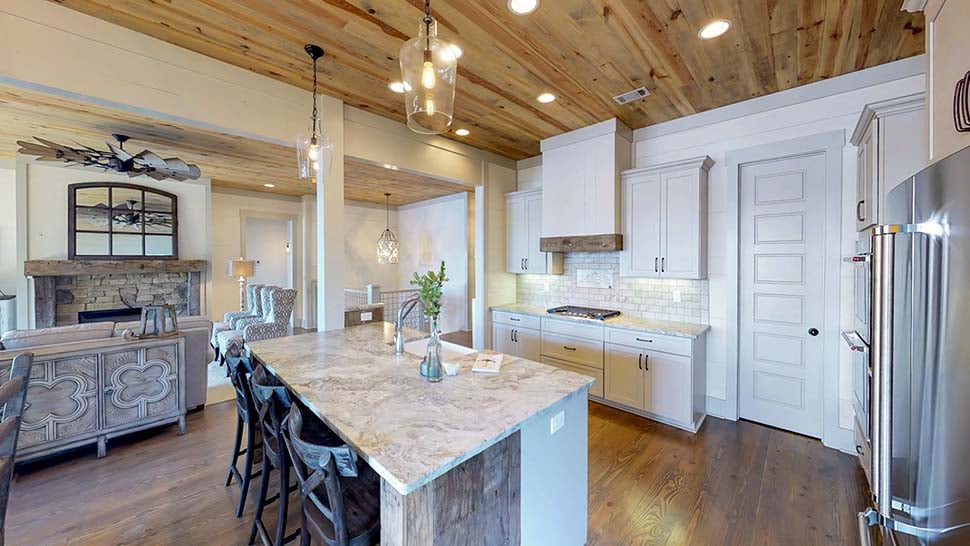

Pantry

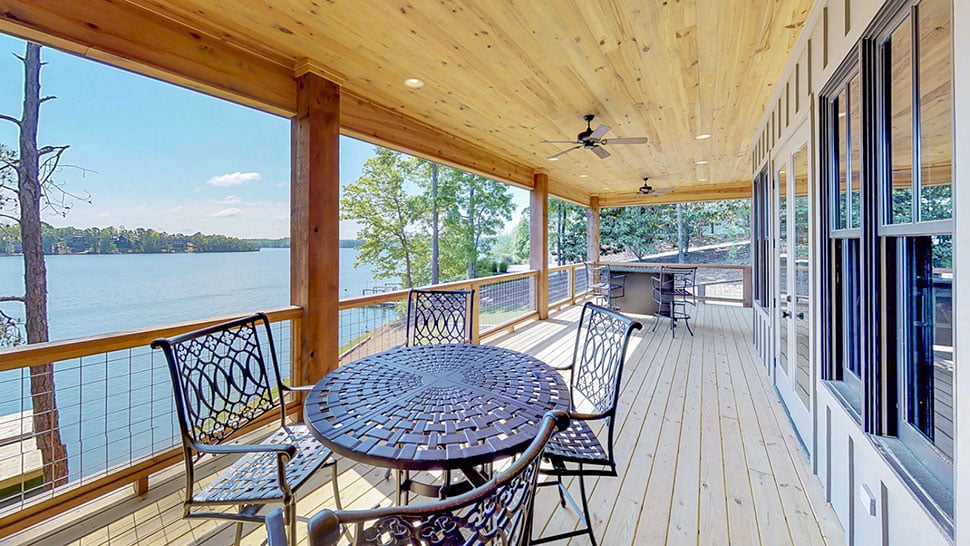

Rear Porch
Screened Porch
Storage Space

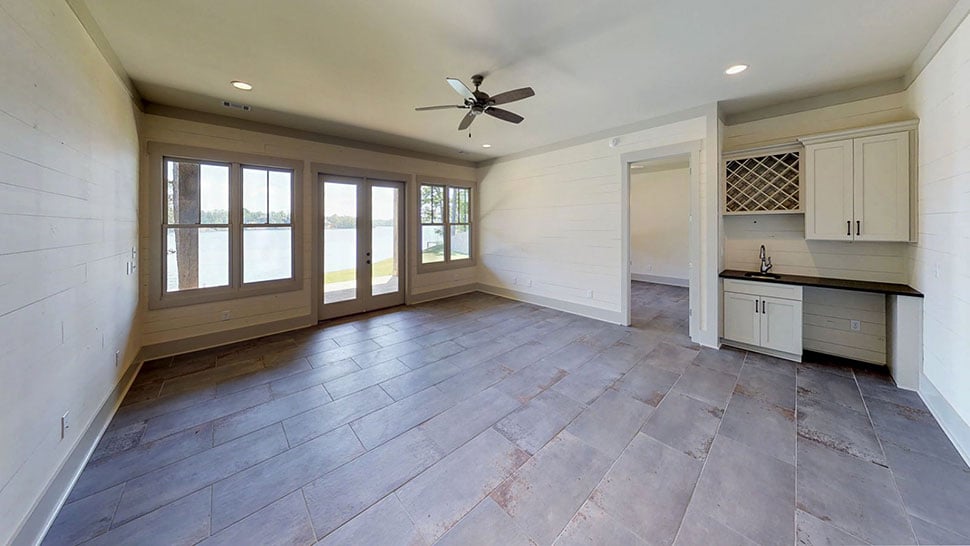

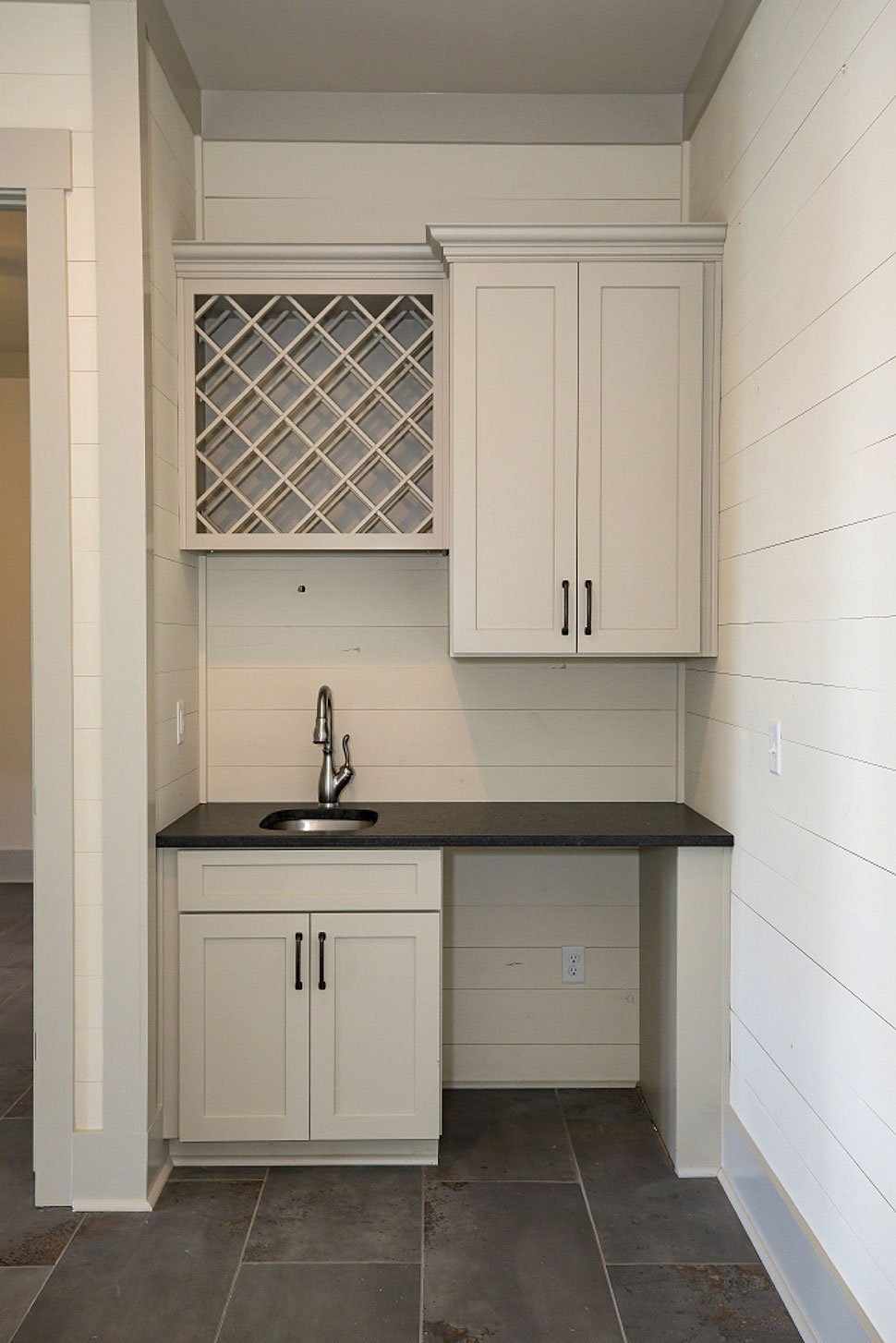

Wet Bar

What's Included?

Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.

Foundation: Complete with dimensions, dimensioned plumbing and referenced details

Elevations: Complete with dimensions, ridge heights and special notes and materials

Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.

Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.

Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.

Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.

Interior Elevations: Including applicable cabinets, electrical, and special construction notes.

Floor joist: Complete with spans, sizes and direction (if applicable).

Ceiling Joist: Complete with spans, sizes and direction Sections: Complete with dimensions, notes and Specifications

Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What is the total length x width without the carport?

A: Width 46'-4" x 53'-5" Deep

Q: I viewed all the pics on the website, would love to know if u have any additional ones? Really would like to see more frontal pics with garage off to side. Any pics would be very helpful in our decision making.

A: I'm sorry. these are all the pictures we have.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
