House Plan 80627

• PDF File: $1,275.00
• 1 Set: $950.00 **
• 5 Sets plus PDF File: $1,325.00
• 8 Sets: $1,355.00
• CAD File: $1,890.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Designer sends a PDF via email to each customer that orders a 5 or 8 set package.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3073 sq ft
Main Living Area:	1689 sq ft
Upper Living Area:	1384 sq ft
Unfinished Basement Area:	1689 sq ft
Garage Area:	495 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement
Exterior Walls:	2x4
House Width:	63'10"
House Depth:	58'6"
Number of Stories:	2
Bedrooms:	4
Full Baths:	2
Half Baths:	1
Max Ridge Height:	33'0" from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	608 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'
Vaulted Ceiling:	Yes

* May require additional drawing time.

Special Features:

• Butler's Pantry
• Coat Closet
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space
• Study
• Wrap Around Porch

A wrap around porch offers a warm inviting exterior while Stone and Siding decorate the façade with texture and color. Formal and informal dining, a private Study, Great Room with corner gas fireplace and large kitchen with walk-in pantry and an island with seating create a functional first floor plan. The Mudroom, Home office and Laundry Room help maintain order. The second floor Master Suite showcases two walk-in closets , two vanities and a whirlpool tub and shower. Secondary bedrooms enjoy large closets and provide loads of space for your growing family.

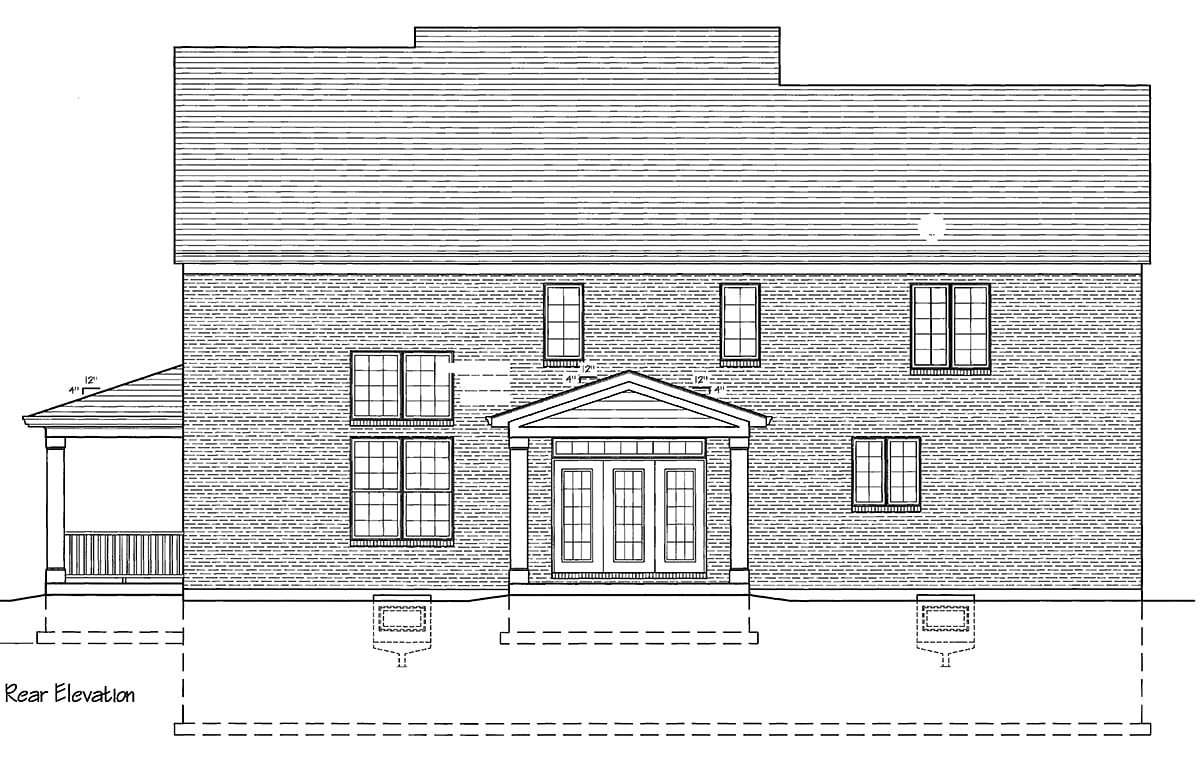

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.

Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

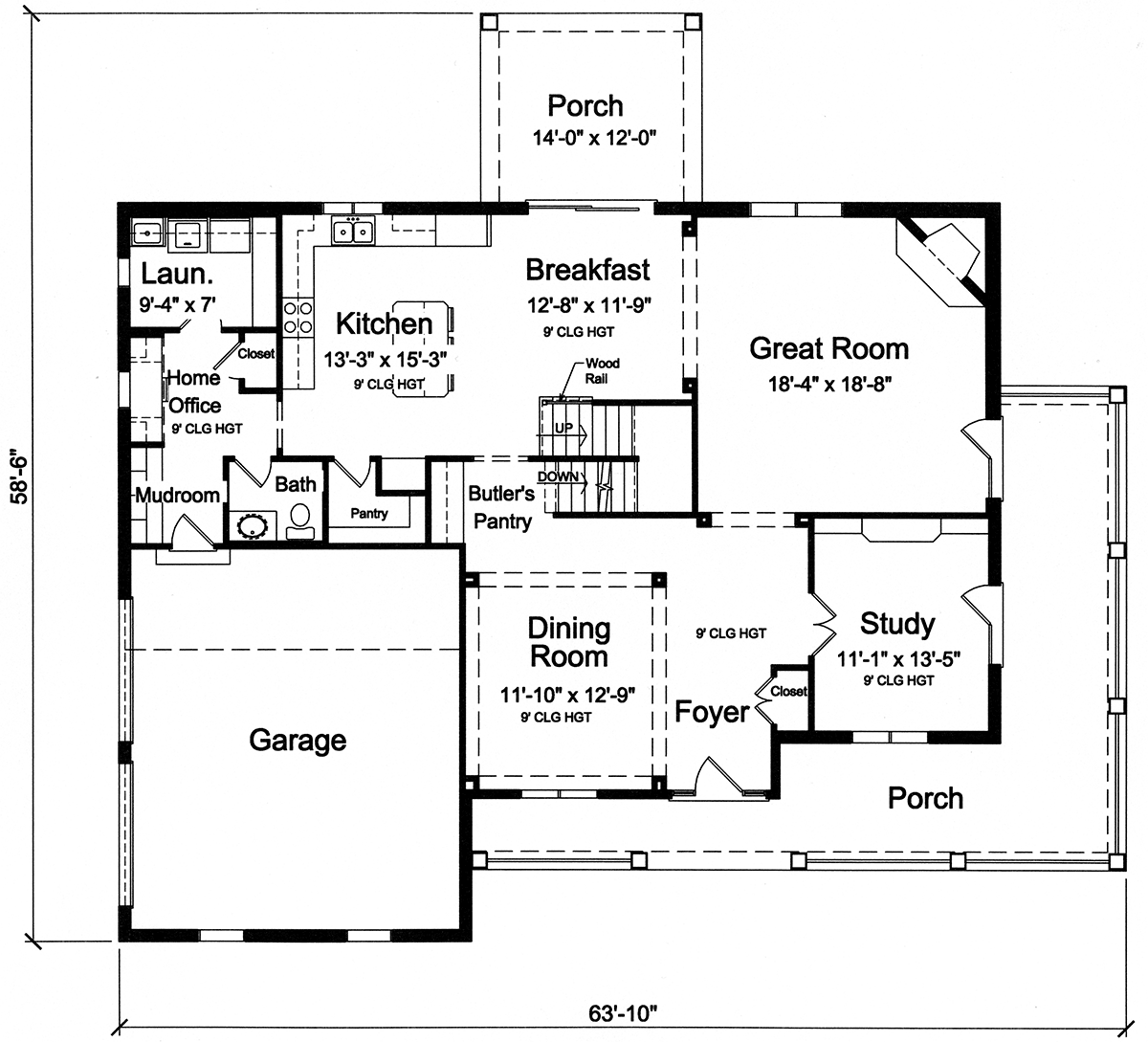

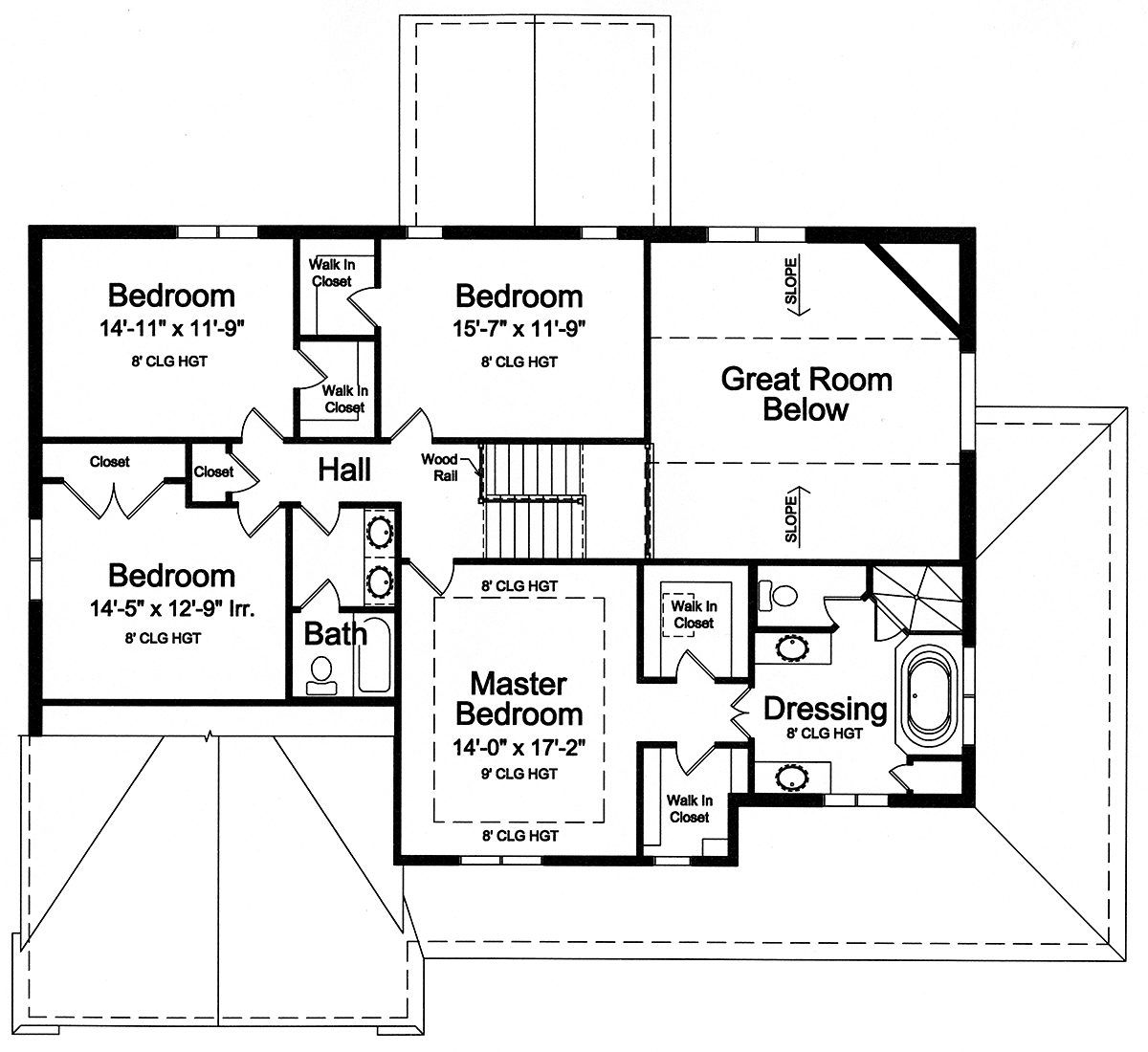

Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown

Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details: Foundation reinforcing detail show size of footing and foundation wall, size and spacing of rebar. Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights. Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available. Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing. Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built. Wall section show typical framing detail of house. Most exterior walls are 2x4s; except where wall height requires 2x6s.
