Turn OFF Image Gallery

Add to cart

Plan Pricing from $3,188.50

Plan Pricing

PDF File: $3,188.50
CAD File: $4,555.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $450.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Walkout Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	8513 sq ft

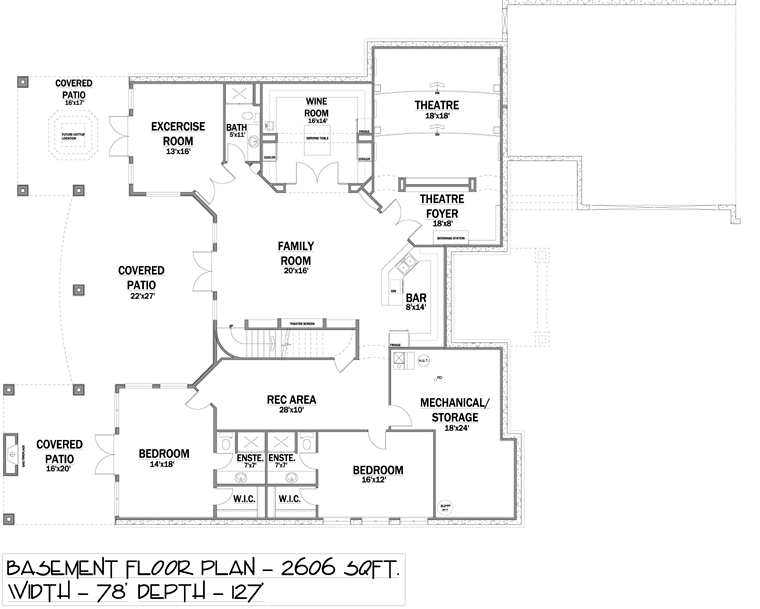

Lower Living Area:	2606 sq ft

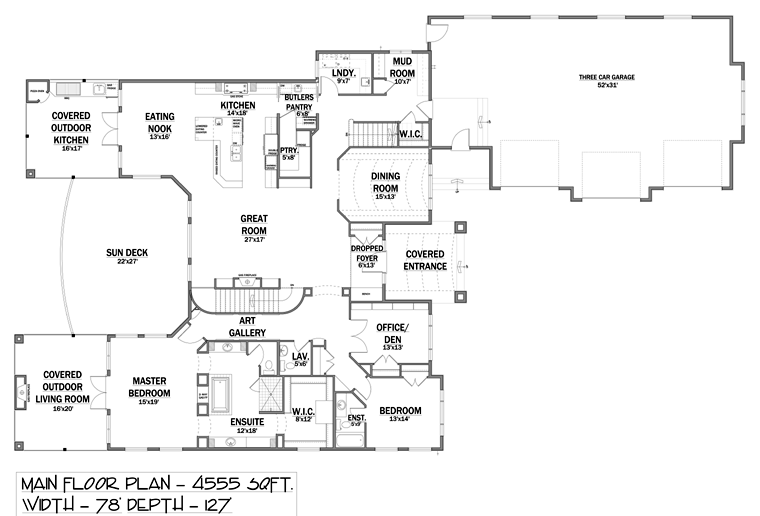

Main Living Area:	4555 sq ft

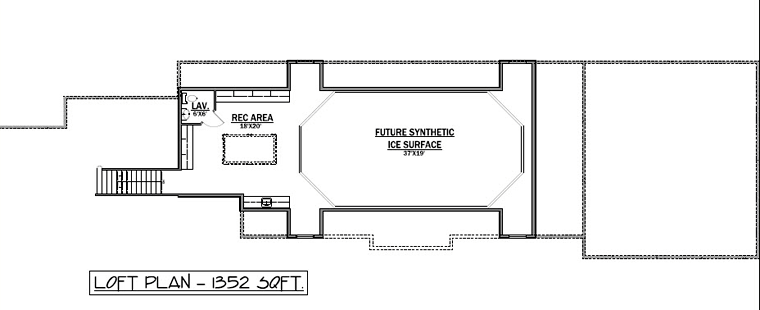

Upper Living Area:	1352 sq ft
Garage Area:	2040 sq ft
Garage Type:	Attached
Garage Bays:	5
Foundation Types:	Walkout Basement
Exterior Walls:	2x6
House Width:	78'
House Depth:	127'
Number of Stories:	2
Bedrooms:	2
Full Baths:	5
Half Baths:	2
Max Ridge Height:	33'9 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	2032 sq ft
Deck:	1150 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'

* May require additional drawing time.

What's Included?

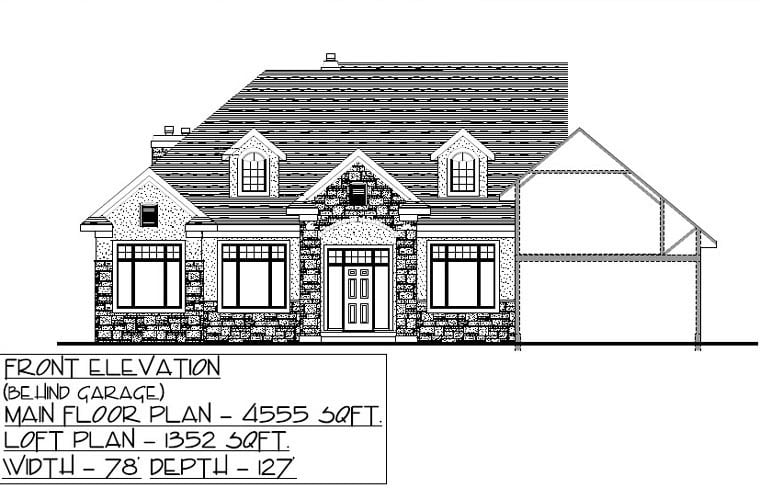

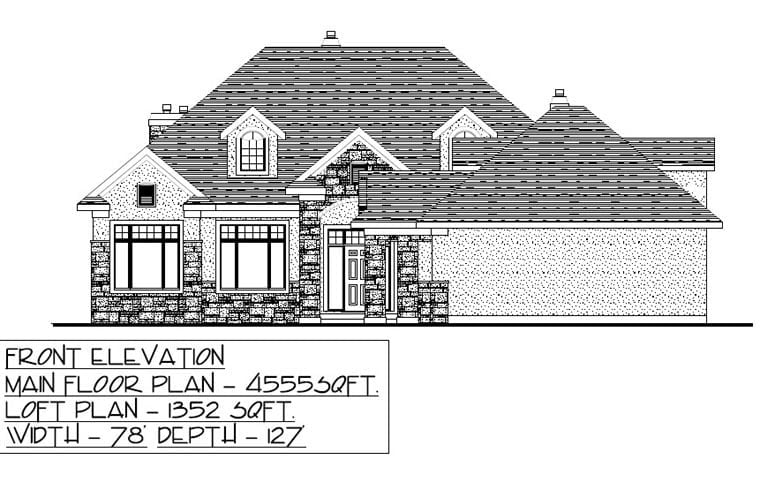

Exterior elevations - Elevations will be produced of all four sides of the home showing all exterior finishes, window and door details, lot grading, deck locations, etc. Additional elevations and details may be required on a per plan basis.

Floor plans - The conceptual plans you started off with, now get all of the final detail added into the drawings. The floor plans will go through a comprehensive structural analysis. Any unusual conditions will be specifically noted or referred on to a structural engineer for further analysis. The locations of all elements such as; windows, doors, walls, cabinetry, ceiling details and staircases, will be precisely determined. Interior elevation details of elements such as arches and fireplaces may be produced on a per plan basis or at the direction of our client.

Foundation plan - This drawing will be produced in addition to any basement development plans to specifically note all foundation walls, beam locations, telepost pads, plumbing rough-ins, and foundation steps in one simple and easy to read drawing.

Cross sections - These drawings are intended to show the specific heights and construction of walls, foundations, floors and roof. Multiple sections may be required to fully illustrate the construction of the home.

Roof plan - For complex roof designs especially, a well laid out roof plan will address all roof pitches, overhang depths, fascia sizes and drainage solutions for any valleys in the roof layout.

Building specifications - The specifications are a comprehensive list of all the various materials and standards that the home will be constructed with. Clients can request specific items in their specification or choose a standard set of construction specifications.

Lighting and electrical plans - These optional plans show locations of all the lights, switches and outlets for the interior and exterior of the home.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
