Multi-Family Plan 81495

• PDF File: $2,080.00
• CAD File: $3,095.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Available Foundation Types:

• Crawlspace : $295.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	3110 sq ft
Main Living Area:	1350 sq ft
Upper Living Area:	1760 sq ft
Garage Area:	520 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace - * $295.00 Slab
Exterior Walls:	2x6
House Width:	42'0"
House Depth:	45'0"
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Half Baths:	2
Max Ridge Height:	25'1" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
Porch:	80 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Entertaining Space
• Office
• Open Floor Plan
• Pantry
• Storage Space

Modern 2-Story Duplex

This thoughtfully designed two-story duplex features two spacious bedrooms, with the added versatility of an option for a home office or a third bedroom, highlighting our focus on functionality and adaptability. Additionally, the inclusion of 2.5 bathrooms enhances the practicality of this floor plan, making it ideal for both families and small households.

Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.

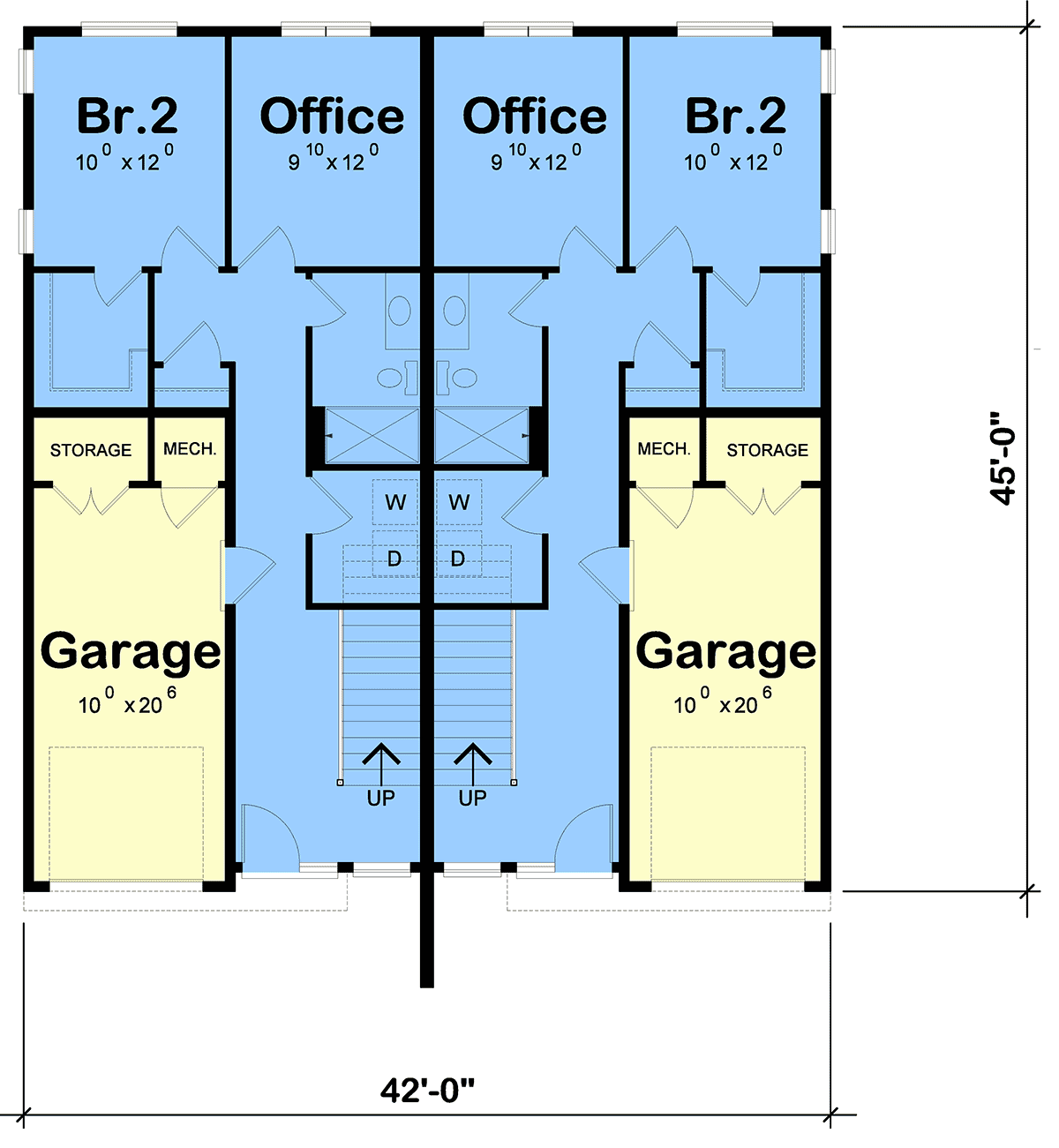

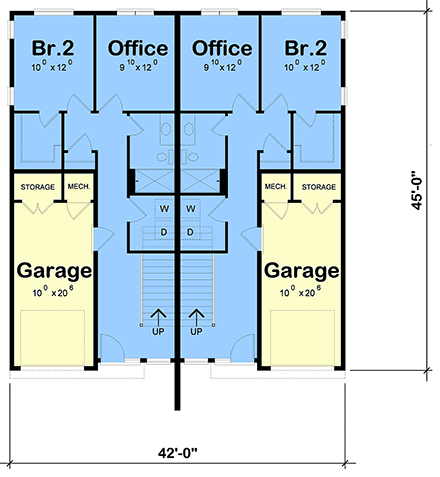

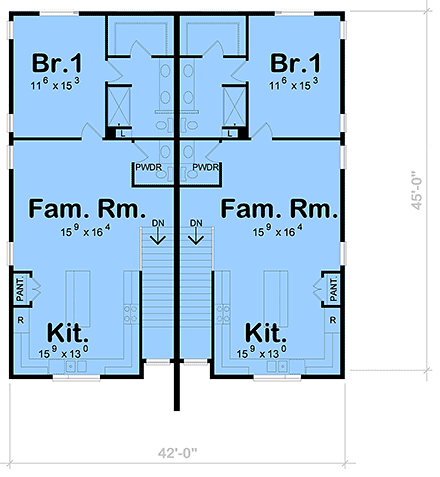

Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout

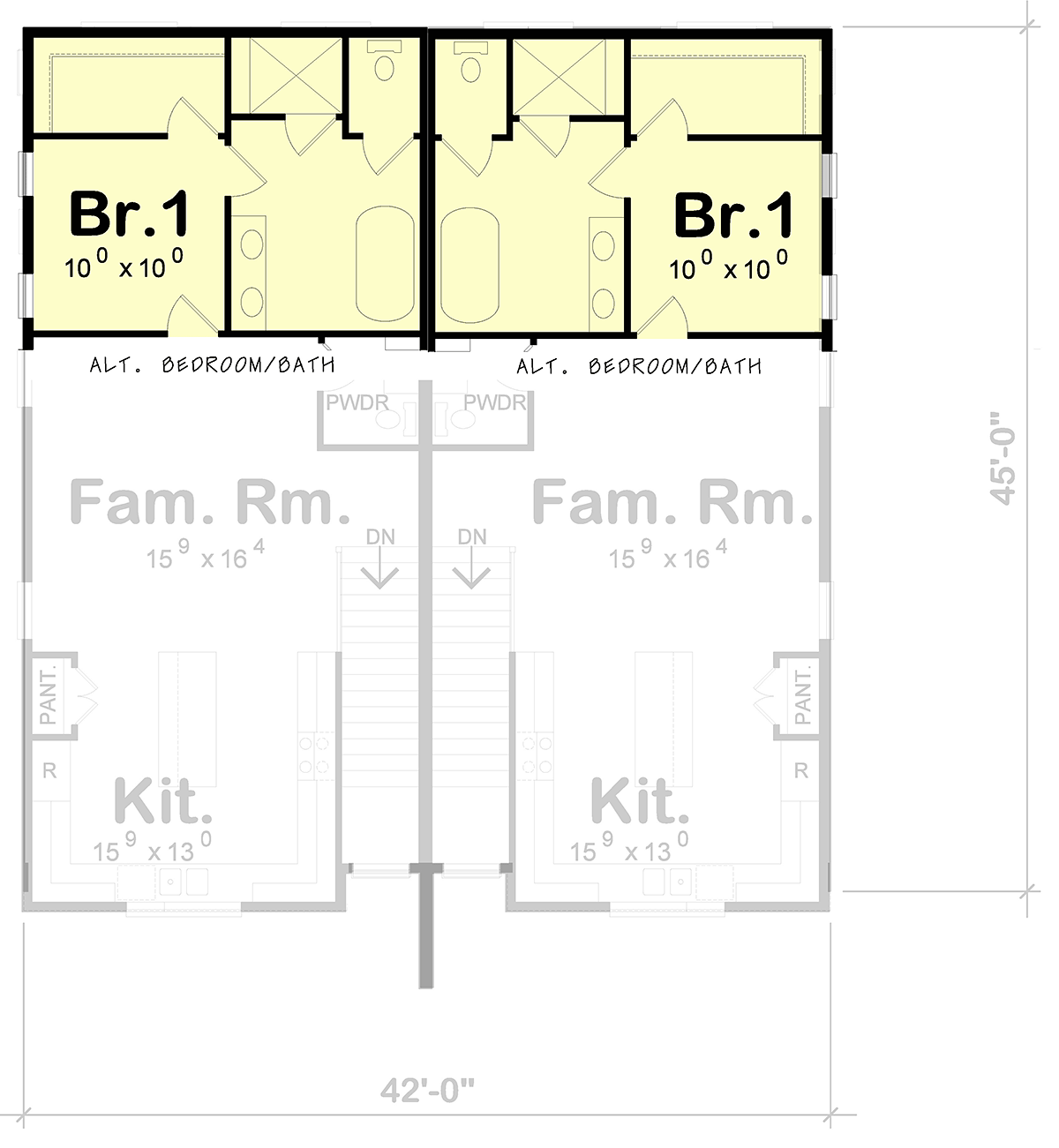

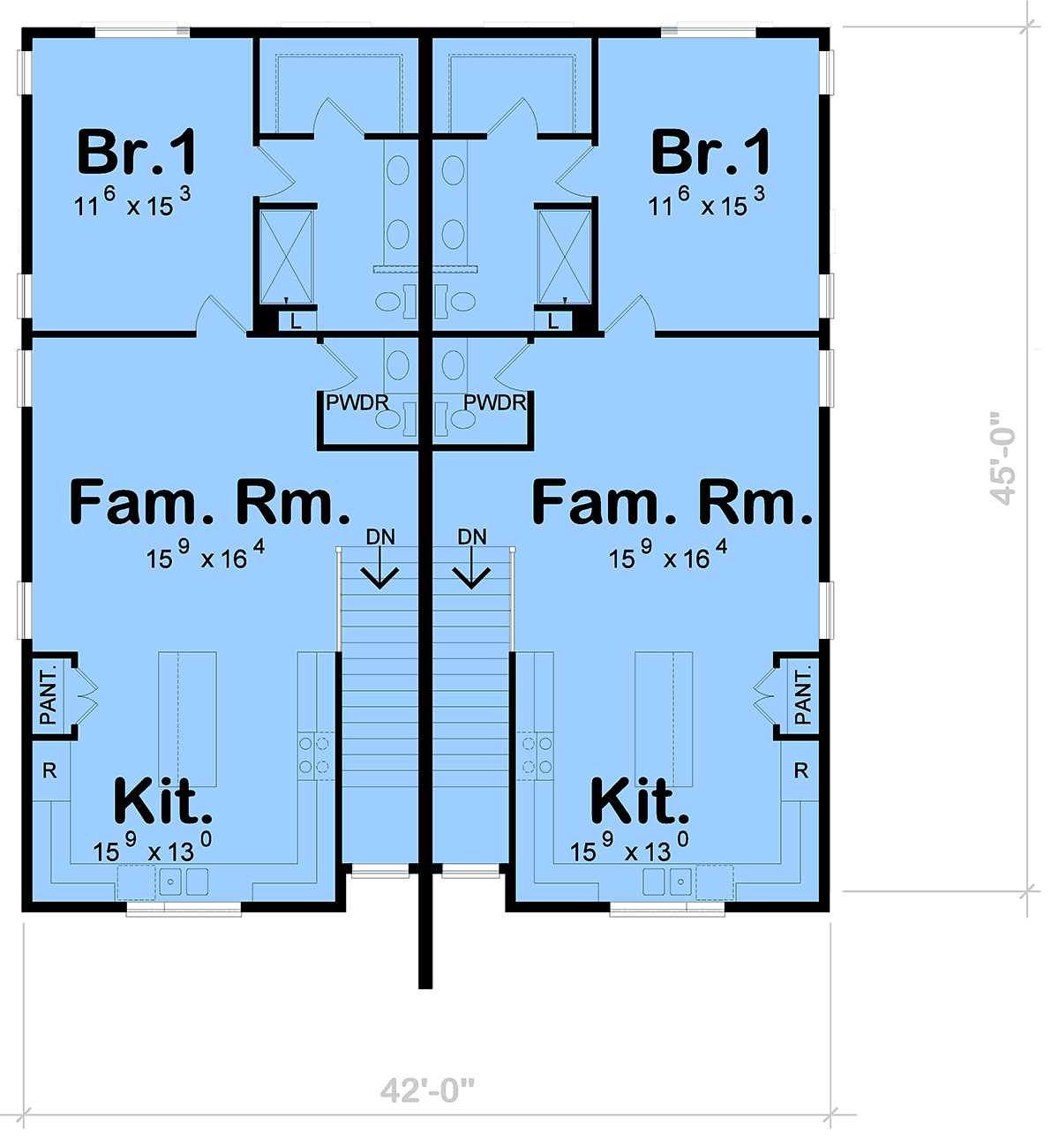

Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!
