Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What are the sizes on the overhead doors?

A: Hello, The overhead doors on the front elevation are 16'x13', the door on the rear elevation is 18'x13'. Thank you

Q: How tall is the attic storage space in this building? Can a fixed stairway be added instead of the pull down stairs to access the storage area?

A: Hello, The side walls of the attic are 5'-2" and the ceiling vaults to 8'. A fixed stairway can be added, please fill out a modification request form for a quote on this change. Thank you!

Q: Would you happen to have a material list for this plan so I can figure out the cost of the building itself? Unless you have a rough estimate then that would be great. I would also like to know the length of the studs for the garage and the ceiling hight of the second floor at the peak and side walls.

A: Sorry, no materials list. 13' studs... engineered attic trusses 8'-0" peak in the attic, 5'-2" side walls Thank you!

Q: what are the 4 short "walls" pictured on the drawings?

A: designed to be shear walls to prevent the building from twisting.

Q: Are there any interior structural bearing locations or do the roof/attic trusses clear-span to the exterior walls?

A: No interior post... we just span it with the trusses.

Q: Couple questions about this plan. First, what type of slab foundation is it (monolithic or stem wall/raised)? Second, what is the roof live load (snow load) PSF? Thanks!

A: Stem wall foundation & dead load is 10 psf live load is 40 psf.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.

Add to cart Save Plan Ask A Question Share This Plan Designer's Plans

Bonus Area:	1200 sq ft
Garage Area:	1920 sq ft
Garage Type:	Detached
Garage Bays:	6
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	40'
House Depth:	48'
Number of Stories:	2
Max Ridge Height:	25'5 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Load:	40 psf
Roof Framing:	Truss
Main Ceiling Height:	14'

6 Car Garage Plan 86827

6 Car Garage | Plan 86827

Plan Pricing

Need A Materials List?

Additional Notes

Available Foundation Types:

Available Exterior Wall Types:

Specifications

Plan Description

What's Included?

Modifications

Q & A

Previous Q & A

Common Q & A

FHP Low Price Guarantee

Call 800-482-0464

Elevation

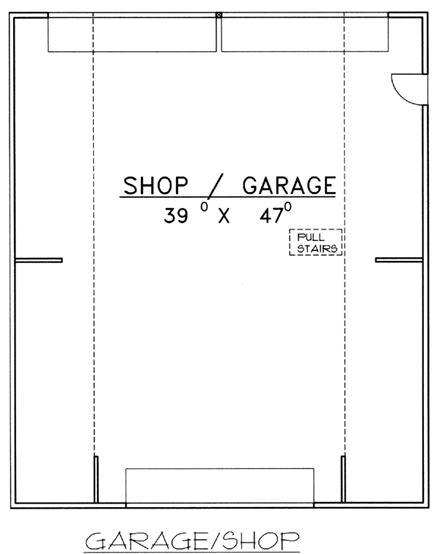

Level One
