CAD File: $2,200.00 Single Build License issued on CAD File orders.
Right Reading Reverse: $245.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Notes
**Please call to add the attached 2-car garage option. No additional fee.**
Available Foundation Types:
Basement
: $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace
: $295.00
May require additional drawing time, please call to confirm before ordering.
Slab
: $295.00
May require additional drawing time, please call to confirm before ordering.
Walkout Basement
: No Additional Fee
Total Living Area may increase with Basement Foundation option.
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:
Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $295.00 Slab - * $295.00 Walkout Basement
Exterior Walls:
2x4 - * $200.00 2x6
House Width:
52'0
House Depth:
65'0
Number of Stories:
1
Bedrooms:
2
Full Baths:
2
Max Ridge Height:
18'10 from Front Door Floor Level
Primary Roof Pitch:
2:12
Roof Load:
30 psf
Roof Framing:
Stick
Porch:
300 sq ft
Deck:
657 sq ft
Main Ceiling Height:
9'
* May require additional drawing time.
Special Features:
Deck or Patio
Entertaining Space
Front Porch
Open Floor Plan
Pantry
Storage Space
Plan Description
Modern Mountain House Plan With Window Wall
Modern Mountain House Plan 43939 is a great choice for your sloped lot. Total living space is 1,679 square feet, and that's just the main level! Unfinished basement area is 1,720 square feet. Much of it can be finished to add recreation space and another bedroom and bathroom. Gorgeous wood siding and thick wooden columns create a rustic aesthetic. The simple sloped roof and glass porch railings give this home modern appeal.
Modern Mountain House Plan With Huge Deck
Modern Mountain House Plan 43939 is a versatile design. Firstly, this home plan will look beautiful on your wilderness property. Choose a mountain setting because the great room has floor-to-ceiling windows. Orient your new home to take advantage of a dramatic landscape. Sip coffee with a perfect view of the sunset or sunrise. Not to mention, you can take in the view indoors or outdoors because of the huge covered deck. It spans the house at 48' wide and 15' deep.
Secondly, the basement allows for room to expand. Starting off on a budget? No problem because you can leave the walkout basement unfinished. Later, when your budget allows, finish the walkout basement and add a third bedroom and large recreation space. In the meantime, you always have storage space down there. Thirdly, your family will enjoy different activities no matter what type of weather. For example, soak in the hot tub on the lower level patio when it starts to get chilly outside.
2 Bedroom Home Plan With 3 Bedroom Option

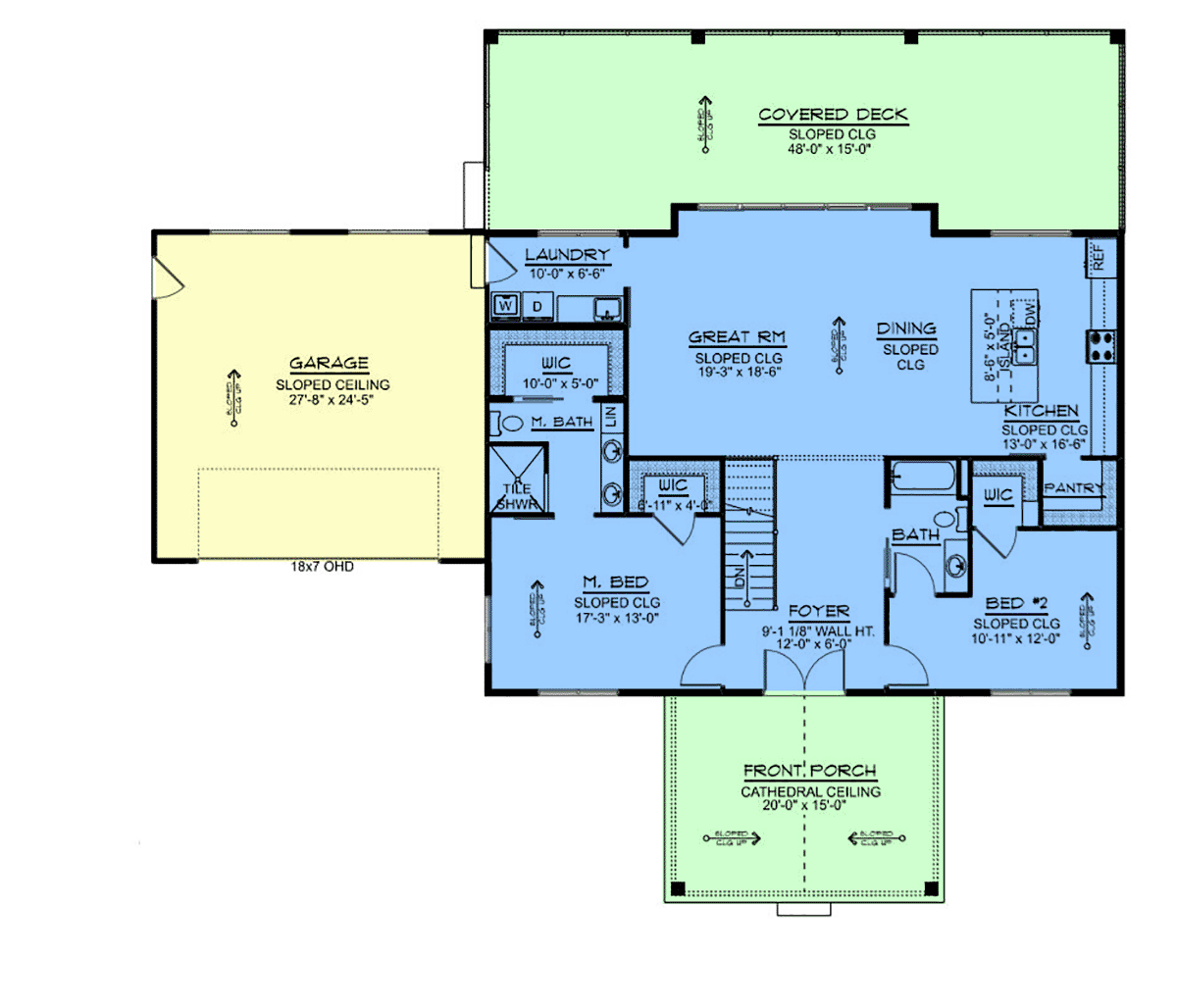

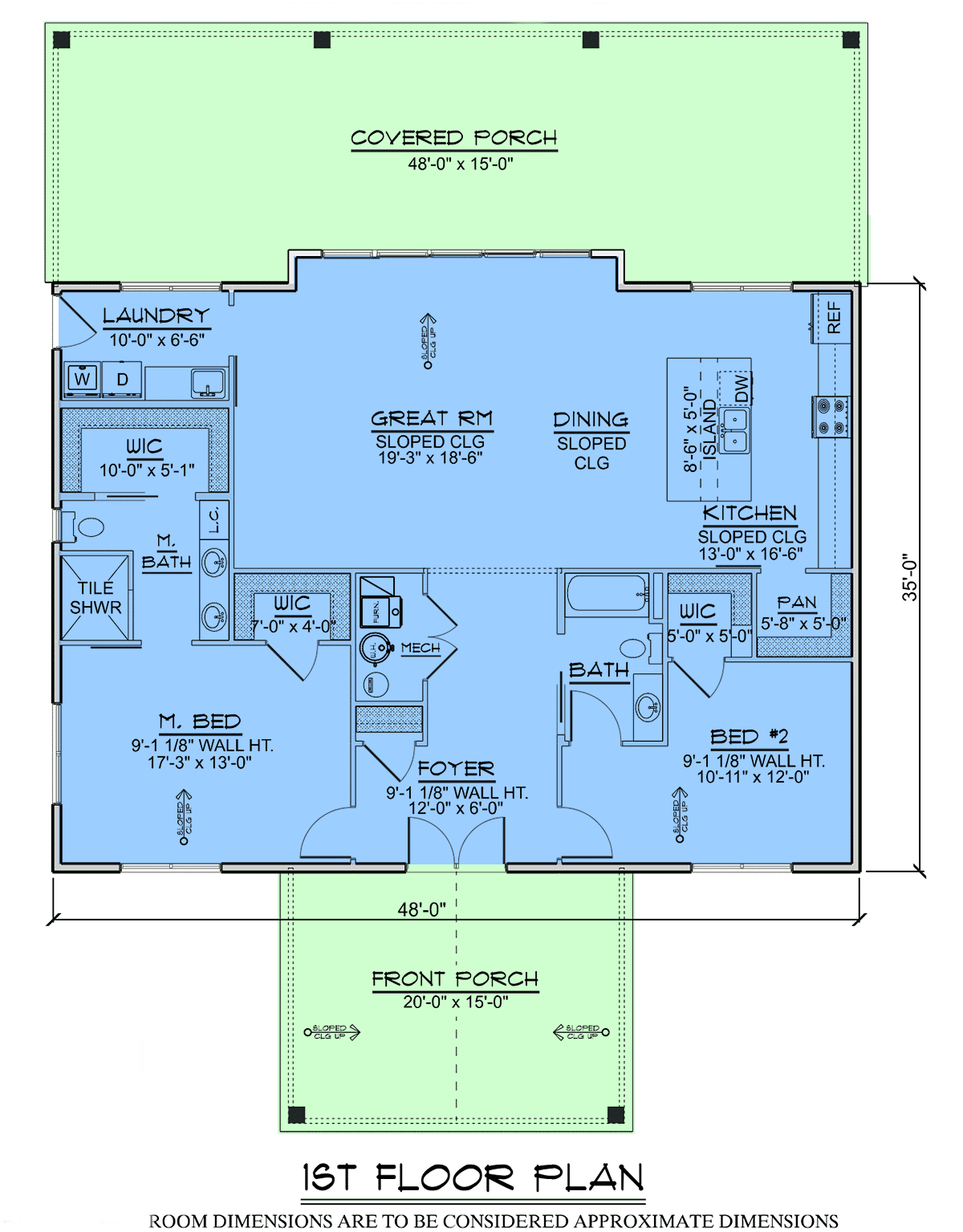

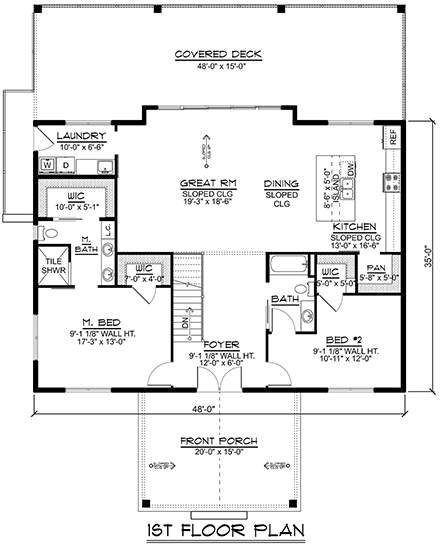

Enter Modern Mountain House Plan 43939 via the front porch with vaulted ceiling. Inside, the foyer divides the floor plan between master suite and bedroom 2. Bedroom 2 includes a walk-in closet and a private access door to the guest bathroom. The master suite measures 17'3 wide by 13' deep and also has a walk-in closet. Keep going to enter the ensuite where Mom and Dad each have their own sink. There's a tile walk-in shower and another walk-in closet accessed via pocket door.
Open living space is found among the great room, dining area, and kitchen. Homeowners still prefer the open floor plan, and even more so when there is a breathtaking view. Family members can perch on a barstool at the kitchen island for breakfast. Later, they will grill outside and dine on steak and hotdogs for supper.
What is not included will be beam sizes, floor framing plan, roof framing plan, wall framing plans, plumbing and hvac (We do not include these for a few reasons. Our plans are sold across the country, so it's not possible for us to meet local code requirements. To maintain usability, we allow for those details to be decided by local engineers and contractors so they can meet your code requirements.).
Modifications
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:The roof load is 30 Pounds per foot - Is there a way to increase this to 60? The home is for Vermont and Recommended is min40. but I want a buffer. Thanks,
A:Unfortunately, we do not engineer the framing for the snow or wind load. A local lumber yard will engineer trusses or lumber based on local codes and requirements.
Q:i will need slab foundation due to where i live sw Oklahoma. do you have a picture of how that will change the appearance of the house?
Q:Two questions on the plan. How is roof vented and what windows do you have figured for the openings?
A:Good Afternoon!
The roof would be continuously vented above the insulation and under the roof decking with an air baffle.
We have generic window sizes listed. The final brand can change based on your preference.
Q:Hi. In your front picture with a garage attached it looks like there might be a poured concrete porch at the front edge of the garage as if there is a door into the house there. It's very hard to see in the dark picture. Is there? And if so, where does it enter into?
A:No, that is not a concrete porch. That is just the garage foundation wall poking through. Refer to the floor plan for the door locations
Q:How tall are the windows/ sliding door leading out to deck
A:The patio door is 8' tall
Q:Hello, do y’all have any illustrations of this plan with a fireplace in the great room on the main floor or in the walkout basement? Do y’all have any recommendations as to where fireplaces could be placed on both levels? Also I’m open to the idea of a multilevel fireplace that serves 2 fire boxes. Thanks!
A:The fireplace could go in a couple different locations. It could either go against the master walk in closet or on the back wall of the great room bump out. If it went on the back wall, it could go all the way down to the basement. We would have to modify the sliding glass door in the great room if it went there.
Let me know what you think.
-Jake
Q:What is the slope of the great room celing?
A:It is a 2/12 pitch. It sloped with the roof because we show it being stick framed
Q:what are the sizes of the windows?
A:What exactly are you looking for? The window sizes vary throughout the house.
Q:Previously, you answer a question stating that "2X12 rafters are being used." now the client is asking: "What span ? I am planning on doing the framing and the span is 38 ft."
A:The rafters will bear on the kitchen wall. The span is 18'-6" from the kitchen wall to the back wall of the great room.
Q:Is there a steel beam down the center of the roof? I don't see any posts that would serve to support the roof trusses.
A:2X12 rafters are being used
Q:For the basement, does it show concrete walls all the way around it? Will the plans show the dimensions of the walls?
A:Good Morning!
The full basement option will show concrete walls all the way around. Yes, the walls will be fully dimensioned.
-Jake
Q:Hi, my question: I love the set up of this home. However, I live in the middle of Michigan when everything is flat could this concept still be kept on such to terrain? I read on the question section that the walkout porch in the basement area would be taken out. is it a possibility to keep this floor plan as it is on flat terrain ;all out basement area)
A:Good Morning!
You can purchase this plan with a full in ground basement or even on a slab with no basement. We can show either option!
Q:What year and building code does this plan meet?
A:We design to the 2018 International Residential Code
Q:What is the maximum height of the most extreme height? Can the master be moved to the rear what then would be the living room size? What is the ceiling height at the front door?
A:The ceiling height at the front door would be 9'.
The maximum ceiling height in the living room is 14'-11".
The master can be moved to the rear of the home through the modification process. By maintaining the same size master and moving it, the new living room would be 7'-3' less wide.
If wanted, these changes can all be talked through when considering a modification and you can make this exactly how you want it.
Thank you!
Jackson
Q:If I choose the crawlspace foundation, how will the floor plan change?
A:For this plan, there are a few things that would change when moving over to a crawl space. Obviously, the basement would be no longer. The mechanicals would be moved to the first floor into a closet where the current basement stairs are. The rear/side decks would turn into concrete porches and there wouldn't be a railing anymore.
I hope these changes are clear. Please let me know if you have any questions. Thank you!
Q:Can this be put on a flat lot?
A:Yes. The basement could be entirely in the ground and no walkout or you can have just a first floor only and use a crawl space or a concrete slab for the foundation.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
