|Specifications and Pricing

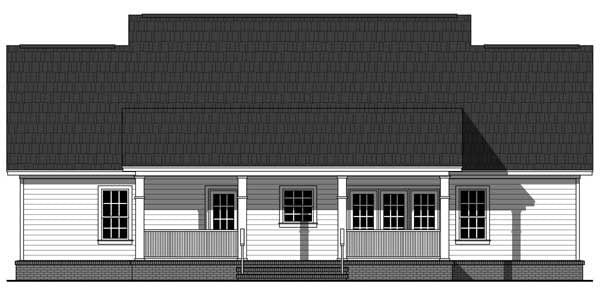

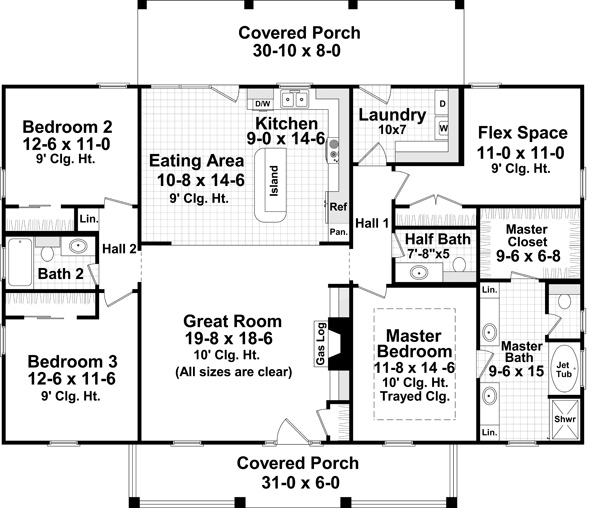

See Elevation and Floor Plan(s)
|This well-designed plan provides many amenities that you would expect to find in a much larger home. The master suite features a wonderful bathroom with large walk-in closet. This plan also features a...|
Ask Any Question
Got a question about this plan? Ask The Designer any question you may have. NOTE: If you have a plan modification question, please click on the Modifications tab above.
Previous Ask The Designer Q & A
Question: We are looking at this plan, but wondering where the stairwell is for the basement? It isn't shown on the house plan or video.
Answer: See plan 59973 for the basement version. Plan 59952 is slab or crawlspace foundation ONLY, since there is no space for stairs in it.
The width of 59973 is four feet wider, in order to add the stairs. Great room and master bedroom also gained width.
Date Posted: 14-Nov-18
Question: Where is the hvac and the water heater
Answer: Hello, Predrawn house plans do not come with mechanical plans. The location of all of that would vary based on your choice of foundation, type of water heater, number of water heaters, and local codes, etc.. There is no one answer to the best location.
The attic is the best place for the ac unit. Tankless water heaters mount anywhere, including on the exterior wall, or you can put a old timey tank type in the flex space closet, or in the attic with a catch basin pan under it.
Date Posted: 22-Aug-18
Question: Can these plans be changed to slab on grade?
Answer: Hello, The website says "stem wall slab" comes with this plan, but thats not correct. It comes with a "raised slab", which is similar to a "stem wall slab", but it has block around the perimeter, then its backfilled with fill dirt, and the slab is poured on top of that elevated platform. The height can be 8", or whatever you like.
We do have "slab on grade" type foundation details which can be substituted by your builder onsite. There is no need to have the plan modified for that item, unless your permit office requires it.
When you place the order, be sure to tell the salesperson to note on the order that you would like the free "slab on grade" foundation details. We will then add the extra page, and it will be included.
If you need the plans to be modified to show slab on grade, the cost would be $250 in addition to the plan package. Allow 4 to 6 working days.
Date Posted: 30-Jul-18
Question: On the specs for plan 59952 does the 48’ depth include the width of the porches added into the total?
Answer: Yes. 48' is the overall depth, including the porches.
Date Posted: 18-Jul-18
Question: What are the dimensions of the kitchen island?
Answer: 7'x3'-4" overall. Thanks.
Date Posted: 06-Jun-18
Question: How much would it cost for this plan to be modified? We'd like the house plans to feature a basement with stairs leading down to the basement.
Answer: See plan 59973 for the basement version. Thanks
Date Posted: 04-May-18
Question: Are the front and back porches drawn as being concrete in this plan?
Answer: Yes, both porches will come as concrete slab in both the slab and crawlspace foundation.
Date Posted: 22-Jan-18
Question: Do the plans come with plumming details locations?
Answer: Please read the "Frequently asked questions" section of the site concerning plan contents.
Predrawn house plans do not include mechanical plans, which is plumbing, heat and ac, etc... The floor plan does show locations for all the plumbing fixtures, so the plumber normally uses the floor plan to layout the drains and and vents.
Date Posted: 08-Nov-17
Question: Do you have this plan with an attached garage.
Answer: Hello, We have a very similar version with an attached garage. See plan 59134. The laundry and half bath are relocated, and there is an unfinished bonus room above the garage.
We also have smaller versions, different exterior, carport version, etc..
Plan 59952 does already come with a plan for a detached two car carport sized 24'-8"x24'-8". Its an open carport. You could just build it attached to the house, and add walls and garage doors to it if your permit office allows site changes, or we can provide a quote to modify the plans.
Date Posted: 14-Sep-17
Question: Where is the hot water tank, Heat/AC unit in this house? Thank you, Keri
Answer: Hello, Predrawn house plans do not include mechanical plans.
Tankless type water heaters are mounted anywhere you want them, on the exterior walls, inside the house, or in the attic. You may choose to have one or two. Your builder will select the best location based on the type you choose. IF you choose an old timey tank type, it can go in the attic, or in the flex space closet.
The hvac system would be in the attic.
Be advised that this plan does come with a plan for an optional two car detached carport. You can build it or not, and put it wherever you want.
Date Posted: 28-Jul-17
Question: Instead of having a gas log fireplace, what would the difference be if there was a full sized stone fireplace with chimney level with top roof-line?
Answer: Hello, The stone fireplace and chimney would add approx. $6000 in construction costs over the cost of the existing gas logs. The chimney would protrude through the roof on the right side of the gable over the front porch. It would work fine.
That change can be made onsite with the builder.
Date Posted: 19-Jul-17
Question: Would it be possible to vault the ceiling and add a small loft above the kitchen?
Answer: Hello, We assume your intent is to vault the ceiling in the great room and above the eating area/kitchen so that the loft above the kitchen can be open to the great room with a railing or half wall up there.
If you want to have regular stairs for the loft, we could widen the whole house by four feet in order to create enough space to add stairs either along the left wall of great room going up towards the rear, or along the left wall of the eating area, going up towards the front.
If you want to only use existing attic space for this new loft, then the ceiling of the loft would start at the floor line in the rear, and slope up with the roofline at 8" per foot towards the middle of the house. The ceiling height would be approx. 9' tall by the time it gets to the front edge of the loft.
If your intent is to add a full two story wall at the rear of the loft to create flat 8' ceiling height over the entire loft, that can also be done. It would look like a wide shed style dormer in the rear view, with windows in the rear of the loft. The size of the loft would be about 15' deep, by whatever width you want. The useable space upstairs would depend on whether or not you want to add the dormer on the rear, or just use existing attic space.
The other option for loft access would be a ladder bolted to the wall between the eating area and great room. This concept would not require us to increase the width of the house.
The fee to widen the house four feet, then add stairs, vaulted ceiling in great room/kitchen area, and a loft upstairs would be $495 in addition to the plan package.
If you prefer the ladder to the loft option, without widening the house, the fee would be $300 in addition to the plan package.
When you are ready to proceed, please call the website to place your order for the plan package. Be sure to tell them that you are having modifications done by the designer. They will process the order, and send a copy to us. We will then proceed with preliminary plans for your review. We would request payment when we have completed the final plans.
Allow 5 to 8 working days for preliminary plans, and another 10 to 15 working days for final plans. Timelines change with our workload, and may vary depending on when you decide to proceed.
We look forward to working with you.
PS- Customized materials list are not a part of this quote. If you purchase the online materials list, it will match the ORIGINAL plans. We do not offer customized materials lists at this time. Local builders and carpenters are the best source for those.
Stephen Mathis, CPBD
Date Posted: 03-Jan-17
Question: We want to add a carport with a breeezeway. And can we add a pantry where the closest in the flex space.
Answer: This plan actually comes with a detached two car carport. You can add the breezeway and the pantry shelves on-site with your builder.
Date Posted: 28-Nov-16
Question: Could a 2 car garage be added to the back side of the house on the side behind the flex space... And you could enter through the laundry room?
Answer: Hello, We are the designer of this plan you found at www.FamilyHomesPlans.com.
The fee would be $425.00 in addition to the purchase of the 5 set or the PDF plan package.
When you are ready to proceed, please call the website to place your order for the plan package. Be sure to tell them that you are having modifications done by the designer. They will process the order, and send a copy to us. We will then proceed with preliminary plans for your review. We would request payment for the modification fees when we complete the work.
Please allow 8 to 12 working days for preliminary plans, and an additional 14 to 18 working days for final plans to be completed.
House Plan Gallery, Inc.
Special Note: Customized materials list are not included in this quote. If you purchase the online material list, it will match the ORIGINAL plans NOT the customized set. We do not offer customized materials list at this time. Local builders and carpenters are the best source for those.
Date Posted: 09-May-16
Question: Email: firstname.lastname@example.org
Plan Number: 59952
can this house be put on a basement? Is it possible to have an attached garage?
Answer: Sure. See plan 59155 for this same floor plan with a garage/bonus and basement foundation option.
Date Posted: 27-Mar-15
Question: I do not see a location for HVAC or water heater. Does this mean they are to be located in attic space and if so where is the intended attic access? Do the roof joist require interior weight baring walls on the interior of the home. Thank you for the information.
Answer: Hello, You are correct. We do not locate heat and ac units on most plans because the best location varies with foundation type selected, number of units the client wishes to use, etc.etc.. The plans state that the hvac unit is to be located onsite in the attic.
Water heater location again depends on how many you want, and what type. Tankless water heaters are common now, and they can be mounted on the exterior studwall. If you prefer a conventional water heater, it can be in the attic, or in the corner of a closet suck as the flex space.
This plan comes with the roof stick framed, with regular lumber, so there is interior load bearing walls. If you dont want interior load bearing walls, then you would need to use prefab roof trusses instead of stick framing. If you want trusses, just provide a copy of the plans to your local truss company, and they will build the trusses to meet your local engineering loads. Trusses transfer the loads to the exterior walls.
Attic access is in the ceiling of hall 1, but could be wherever you want it.
Date Posted: 03-Feb-15
Question: Can this plan have a basement 59952
Answer: Hello, Sure, See plan 59973, which is the basement version of that same plan. We had to widen the middle by 4 feet to add basement stairs. The basement comes as unfinished. Thanks.
Date Posted: 04-Aug-14
Question: Email: email@example.com
Plan Number: 59952
Is it possible to put a set of stairs going into a basement where the half bath is on this plan?
Answer: Hello, The half bath area does not contain enough space to add basement stairs there, even in a "U" shaped layout. We do have an alternate plan for anyone wanting a basement version though... See plan 59973 for the same plan with a walk out basement. We had to add four feet width to the house to allow for the stairs, so its bigger.. 1951 s.f. instead of 1870...
Date Posted: 09-Apr-14
Question: Hello, What would be the square footage of this house without BDRM 2 and 3 and without the bathroom between (essentially cut off everything to the left of the GR) and without the laundry room and flex space??? (I'm trying to get under 600 sqft and I really like this plan...) Thanks!!!
Answer: Hello, See plan 59936. Its a 1640 s.f. version of that same plan, but without the flex space, and laundry area. We relocated the laundry, and removed the bonus room. This would be a better starting point than the larger version.
If we start with plan 59936, which is 1640 s.f., then remove the left bedrooms and bath, the footage would be 1205 s.f. heated.
Thats still more than twice the footage you want. We recommend looking at other plans if you need less than 600 s.f.
See plan 59039, which is 600 s.f., or plan 59040 which is 800 s.f.. Those will give you a better idea of what size you are talking about....
If you need a custom plan drawn to fit your needs, just let me know more about what you want, and we can provide a quote for it, or we can modify any of the existing plans I just mentioned.
Thanks and God bless!
Date Posted: 03-Dec-13
Question: Email: firstname.lastname@example.org
Plan Number: 59952
can an attached garage and basement be added to this plan?
Answer: Hello, Yes, We could modify this plan, but you may prefer to just purchase plan 59155. Its the same house with the addition of a garage, basement, and a bonus room over the garage. The bonus room could just be used as floored attic. If you wish to obtain a quote to modify a plan, it would be less costly to remove the bonus room from this plan, than to add a basement and garage to the other. Same end result anyway..
PS- The slight difference in footage is the longer hallway to the garage due to the two sets of stairs.
Date Posted: 31-Jul-13
Question: what is the scale to this house
Answer: These are presentation images online. They are not made to any scale. They are not for building the house, they are only for presentation. Now the actual blueprints you get when you purchase the plans will be at 1/4" per foot scale, if thats what you meant. Thanks.
Date Posted: 07-May-13
Common Customer Questions:
Q. Can I make modifications to this plan?
A. Yes you can! Please click the "Modifications" tab of the top of this page to get more information.
Q. What is the estimated price to build this plan?
A. The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab at the top of this page. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
House Plan 59952
Order Code: 00WEB
Add to My Plans Collection
Build your own custom, up to 96 Page Planbook, by filing this plan away in your My Plans Collection!
Add to Plan Comparison List
Compare up to 5 of your favorite plans at once.
Our Low Price Guarantee
What Do These Plans Include?
| U.S. customers call 1-800-482-0464
| Canadian customers call 1-800-361-7526
This house plan does not seem to have a garage. Please make sure to view our online garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
|Total Living Area: 1870
Main Living Area: 1870
Garage Type: None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
House Width: 55'
House Depth: 48'
Number of Stories: 1
Full Baths: 2
Half Baths: 1
Max Ridge Height: 23'9 from Front Door Floor Level
Primary Roof Pitch: 8:12
Roof Load: 40 psf
Roof Framing: Stick
Porch: 433 sq ft
1st Floor Master: Yes
Main Ceiling Height: 9'
Available Foundation Types:
Stem Wall Slab
Available Exterior Wall Types:
1 Set of Same Plan: $950.00 **
5 Sets of Same Plan: $1,015.00
Reproducible Set of Same Plan: $1,200.00
PDF File of Same Plan: $1,125.00
CAD File of Same Plan: $1,680.00
Materials List: $130.00
Right Reading (True) Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $60.00
** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.
Materials List, if ordered, has 1 week lead time
or call 1-800-482-0464.
|Want to make changes?
Receive a FREE modification estimate:
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We at Familyhomeplans.com believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Simply contact the modification department via...
Email: Click Here. This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.
It's as simple as that!
|Cost To Build
QUICK-Cost-To-Build: Only $19.95 Per Plan
- No Risk Offer: Order the QUICK-Cost-To-Build now and when you do decide to order any house plan, $19.95 will be deducted from your order! *
- Get more accurate results, quicker! No need to wait for a reliable cost.
- Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
- Cost report for your zip code. (the zip code can be changed after you receive the online report)
- Estimate 1, 1½ or 2 story home plans. **
- Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
- Your estimate is active for 1 FULL YEAR!
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1½ story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan’s finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are “installed costs” including material, labor and sales tax.
|View Plan Video
|Tell A Friend
|What Do These Plans Include?
Cover Sheet, showing architectural rendering of the residence
Floor Plan/Plans (scale: 1/4" = 1' - 0")
Cabinet Elevations (scale: 3/8" = 1' - 0")
Electrical Plan Layout with Electrical Symbols Legend
Exterior Elevations (typically 4)
Typical Exterior Wall Section (scale: 3/4" = 1' - 0")
Section Thru Building (usually 1/2" = 1' - 0", transverse section)
Roof Drainage Plan (scale: 1/8" = 1' - 0")
Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")
Short-form FHA/VA Specifications form
License to Build
Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.
