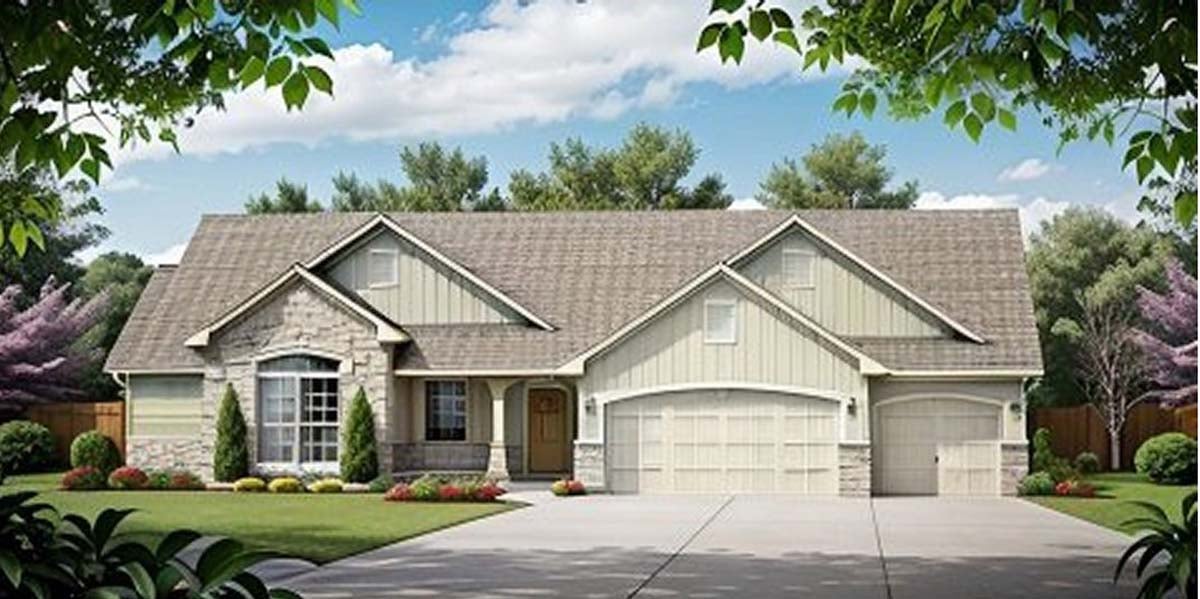

European Details in Ranch House Floor Plan 62627 at Family Home Plans

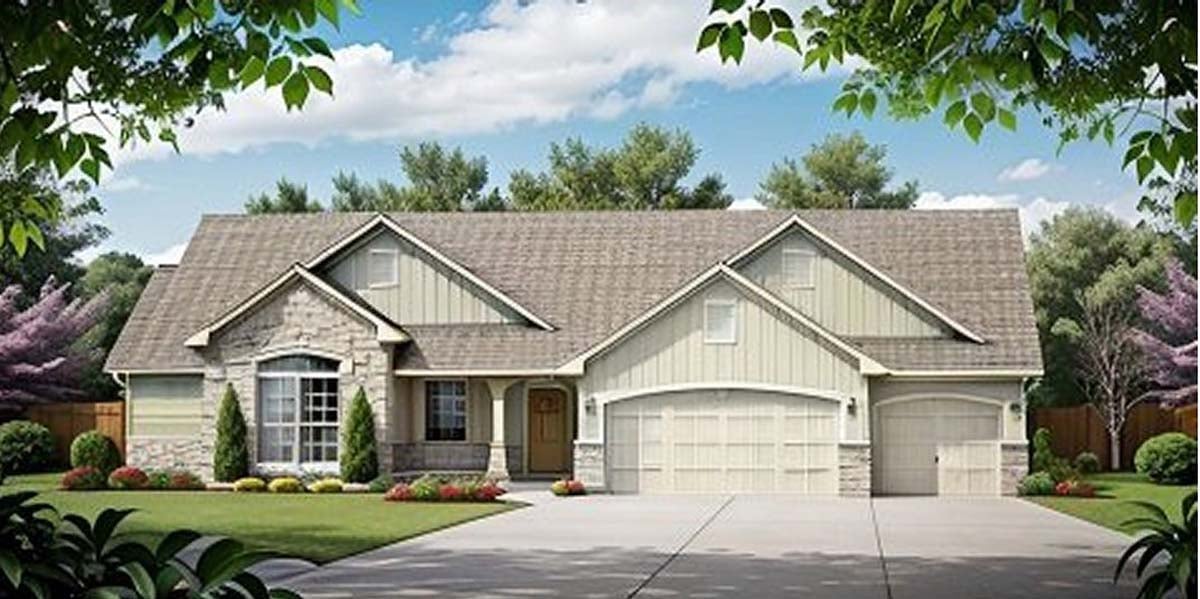

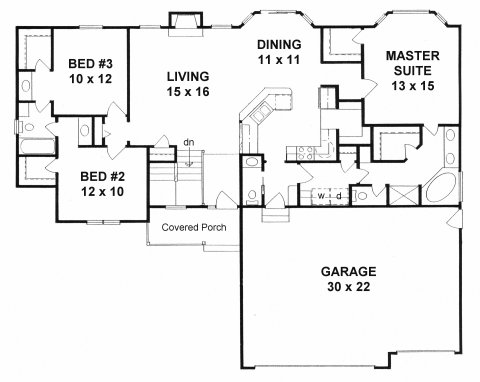

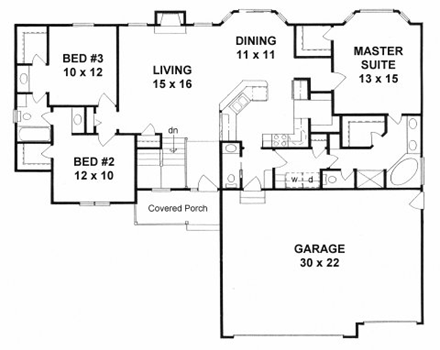

This 1,539 square foot European home plan has stylish details and an open layout through the living area. The split bedroom home design offers privacy to the master bedroom at the back corner of the home. Bedrooms 2 and 3 share a Jack and Jill bath and their own walk in closet. The house plan comes on a basement foundation, but a slab or crawlspace is available for an additional fee. Build a one story home with our house building plans. One story European style house floor plans.
What's Included?
1/4" scale fully dimensioned Foundation/ Basement Plan Basement plan also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's.
1/4" scale fully dimensioned Floor Plan In order to simplify construction, We use the most comprehensive dimensioning method in the industry.

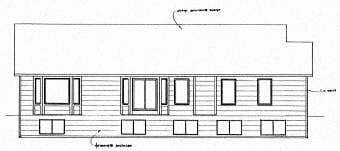

1/4" scale Front, Side and Rear Elevations 1/4 inch scale elevations all the way around clarifies construction and can be used for Model building templates as well.
Roof plan An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
Electrical Shown right on the floor plan indicates locations for switches and outlets (and no we don't slack on kitchen outlets).
Kitchen Cabinet Details, Wall section, Stair and Fireplace Details All drawn 1/2" scale provide easy viewing of the specific areas.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:Between the foyer and stairs is there just a railing or a partial or full night wall? For a plan with 2x6 exterior walls what is the narrower width of the bathroom by two bedrooms.
A:There is an open wood railing between the staircase and the Foyer.
With 2x6 walls, the narrower part of the bath area is only 4'-2" but that is keeping the wall in-line with the closet wall which could be offset to get a full 5' if desired.
Q:What are the dimensions of the Jack and Jill bathroom that the 2 spare bedrooms share? Thanks so much!
A:Bath is approx. 5' x 7' with 4' vanities in the bedrooms.
Q:What is the size of the separate toilet room in the master bath? Thank you
A:The water closet in the MBR bath area is about 5'-0" x 2'-7" inside dimensions.
Q:What are the dimensions of the half bath? Thanks!
A:The half bath next to the garage is about 2'-8" x 6'-8" inside dimensions.
Q:What are vanity sizes in bedroom 2 and 3? Thanks so much.
A:Both vanities are 48"
Q:Could this plan be modified to crawl space instead of basement and have the stairs leading up to a second story bonus room?,
A:Crawlspace is an easy change but an attic bonus room would need the roof pitch raised from 8/12 to 10/12 and the vaulted ceilings removed.
Q:What are the widths of the garage doors?
A:16' & 8'
Q:WHAT IS THE TRUE DIMENSIONS OF THE DINNING ROOM, PLAN SAYS 11X 11 WHERE DOES THAT START AND END?
A:The width is 11'-0" inside dimension from the walk-in closet wall to the Kitchen/Foyer wall.
The depth is shown as 11'-1" from the outside of the cantilevered bay to the back of the dishwasher.
Q:Bedroom measures 13x15 does that include bay? Also the stairs leading to the basement do they have to be double stairs? Thanks, Gail
A:The MBR room size is floor space and does includes the bay.
The stairway isn't long enough for straight stairs, it's possible to make them "L" shaped but that would put the first step right up to the entry door.
Q:Will you tell me the dimensions of the counter tops in the kitchen?
A:@ dishwasher approx. 2'
@ sink approx. 3'
@ next to sink approx. 4'
@ range (including range) approx. 5'
@ next to pantry approx. 4 1/2'
Q:Does the living space listed include closets and hallways?
A:The square footage is figured the same way as an appraiser figures it, measured from outside of all the exterior walls of the heated space, so yes it includes all closets, hallways etc..
Q:What year were these plans originally drawn up?
A:2008
Q:What are the kitchen dimensions and the square footage of the countertops. Thx
A:Dimensions approx. 13' x 9'
Counter tops approx. 33 sq ft including sink (not including raised bar top)

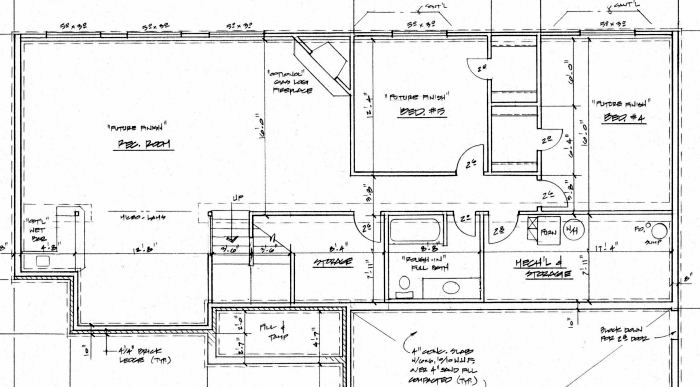

Q:The lower level of home plan is showing future plans for two more bedrooms (#4 & #5), is the foundation blueprint taking into consideration egress windows and wells that need to show for the foundation contractor?
A:This plan uses garden level (view-out) egress windows, changing to window wells for a flat lot may require some modifications to the foundation. The general contractor often makes such changes with the concrete contractor without plan modifications however, we can make that change to the plans (if required) for $100 (2hrs/50) and approx. 3-5 business days from the time of order.
Q:Can the doorway entering the onsuite be modified to accommodate a 32” door? Seems like there is enough room to take space from the walk-in closet. Also I am contacting the current owners of the home we just sold and built 15 yrs ago to find out the height of the garage openings. If possible we may want to modify from 7 to 7 ½ ft. if it is possible?????? One more item is the corner whirlpool, that is something we wish not to have again, instead we are wanting a single jetted tub and extend the vanity, would this work? (I also see that the window would have to be smaller) We really like this floorplan and I’m very appreciative of your time to help with the questions.
A:1. Can the doorway entering the onsuite be modified to accommodate a 32” door? Answer: Yes. 2. Seems like there is enough room to take space from the walk-in closet . Also I am contacting the current owners of the home we just sold and built 15 yrs ago to find out the height of the garage openings. If possible we may want to modify from 7 to 7 ½ ft. if it is possible?????? Answer: The ceilings in the garage are a little over 9' tall so 8' doors should work okay. 3. One more item is the corner whirlpool, that is something we wish not to have again, instead we are wanting a single jetted tub and extend the vanity, would this work? (I also see that the window would have to be smaller) Answer: Yes, this has actually been a popular revision for some of us that are tired of cleaning those oversized tubs.
Q:What size door entering the master suite? What size door entering on-suite from master bedroom? How tall are the garage openings?
A:What size door entering the master suite? 32” What size door entering on-suite from master bedroom? 28” How tall are the garage openings? 7’
Q:You mentioned a "rear deck" in a post dated 27-Oct-14...I don't see a rear door in the drawing. Am I missing something???
A:The Dining Room bay window has a sliding door in the center of it for access to a rear deck, the size of the deck to be determined by owner.
Q:We do not want a basement. What is the dimension of the area that shows the down stairwell? Would it be large enough to make an office space?
A:The area is 7’-0” x 8’-0”, could be a small office niche.
Q:How tall is the basement ceiling? We would like 9 foot ceilings? What modifications would we need to do to accommodate them?
A:The basement ceilings are 8’, most builders could do a 9’ ceiling without modifying the plans otherwise, we can make the modification here for $50 if it needs to be shown for any reason.
Q:In the master bath, can the shower/tub be replaced by a large walk in shower? Also regarding vault in kitchen, I would like to run my cabinets as tall as possible. How high do you think the cabinets could go? Thank you
A:The vaulted ceiling over the kitchen is about 11’ high, the cabinets are shown 7’ hi, the max would be about 10’ but hard to reach.
The MBR tub is 5x5 and the shower shown is 4’x3’, the two could be combined for a large walk-in shower, if that is too much then
maybe pull the water closet into the bath about 18” to increase utility room?
Q:What are wall heights on this plan?
A:8’ walls (plus vaulted ceilings) except bed #2 is 10’
Q:This plan seems ideal for us.We like the separate laundry and love the pantry. We are however restricted with size of house that we can build. Could you please check the square foot measurement. ? The info says 1539 .Not sure if that is correct. Thank you in advance.
A:The square footage (1539) is correct for finished living area. The Garage, Porch and rear deck are not included.
Q:Can I see pictures of inside this house
A:Sorry we don’t have any photos at this time.
Q:What are the dimensions of the basement windows?
A:Plans show 5’-0” x 3’-0”
Q:How far below grade is the basement?
A:The plan is shown with 8’ basement ceilings, the rear daylight windows indicate an approx. 4’-6” drop in grade.
Q:Are there any windows on the sides of the house, or just the front and back?
A:Bathroom windows are on the sides.
Q:I don't want vaulted ceilings in any of the rooms can it just be a all 8 ft ceilings flat throughout?
A:Yes the walls are already 8', the ceilings are vaulted with "sizzor" trusses which could be easily replaced with standard trusses for flat 8' ceilings.
Q:i am really looking to buy this plan but have one question could i put the sinks that are in the 2 bedrooms in the bathroom?
A:I don’t know any reason why not. The linen could be taken out and replaced with a sink, the walls around it may need some adjusting to add a little space there but, the interior walls are non-load bearing and can be moved as desired.
Q:is the living room ceiling vaulted on this plan.
A:Ceilings are vaulted in Living, Dining, Kitchen and Master Suite. Bedroom #2 is 10’ flat, all others are 8’
Q:I love this plan. Easily the most sensible small plan I have ever seen. However, there are details missing - such as ceiling heights, etc. Can you help with this information? Linda Hemmes
A:This plan has 8’ wall heights except for Bed #2 which is 10’ otherwise...
The Living, Kitchen, Dining, Foyer and Master Suite are all vaulted ceilings.
Q:1. Where are the vaulted ceilings in the house? 2. Is a basement rendering available?
A:Vaulted- Living, Dining & Kitchen
10'- Bed #2
Q:Does the walk-in pantry have a door or not?
A:The Pantry is designed to appear as a simple cabinet but, behind the cabinet doors is a hidden walk-in pantry.
Q:I hope this doesn't sound stupid, but can this house be built to become a solar/wind powered home? We love this plan but want to be as off the grid as possible when we move to Nova Scotia in a few years. Thanks! Karen and Joel Pothier Demorest, GA
A:The roof on the back of this house actually lends itself to work well with solar panels if it is somewhat south facing, wind turbines could be used with pretty much any plan.
Q:I would also like to know the size of the kitchen and is the pantry like a bootleg pantry? I also would like to know the size of the pantry. I really like the uniqueness in this floor plan.Thanks.
A:The Kitchen is about 13'x10' and the pantry appears like a 36" wall cabinet that is actually the entrance to an aprox 4'x6' walk-in.
Q:I would like to know how big the master closets are for this plan and also does the house depth include the garage? Thanks
A:MBR closets are 5'x4'-4" and 6'-8"x4'-8"
House depth is 49' from the front of the garage to the back of the fireplace
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
