House Plan 77434

• PDF File: $1,090.00
• 3 Sets: $1,175.00
• 5 Sets: $1,220.00
• 5 Sets plus PDF File: $1,315.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Basement : $495.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $425.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $350.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : No Additional Fee
• Walkout Basement : $525.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: $295.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2160 sq ft
Main Living Area:	2160 sq ft
Garage Area:	624 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $495.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $425.00 Slab - * $350.00 Stem Wall Slab Walkout Basement - * $525.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 - * $295.00 2x6
House Width:	60'0
House Depth:	70'0
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	27'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Truss
Porch:	765 sq ft
FirePlace:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Front Porch

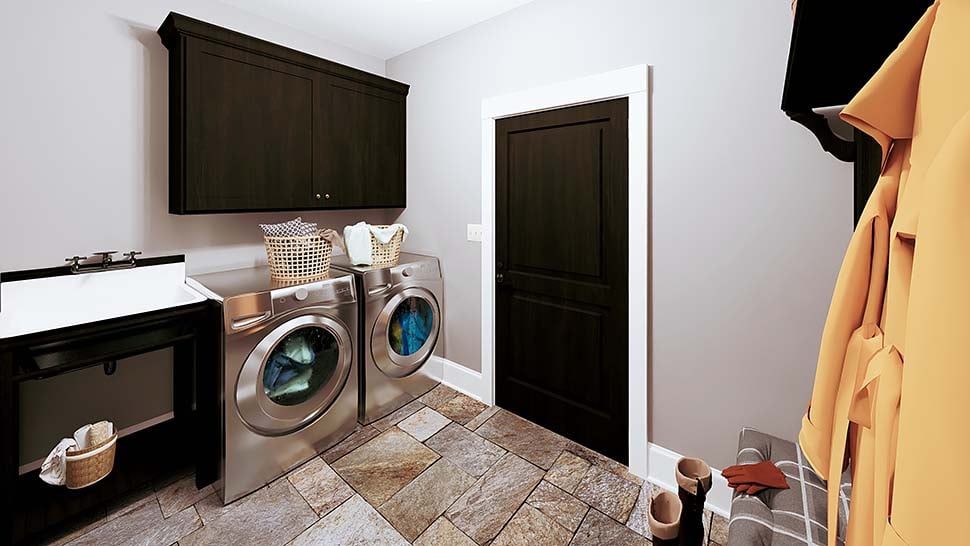

• Mudroom
• Open Floor Plan
• Pantry
• Rear Porch
• Storage Space

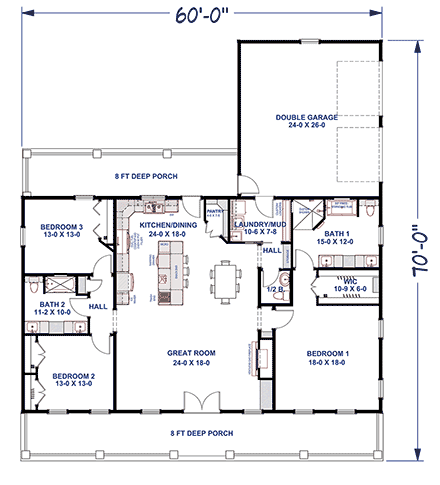

This 3-bedroom, 2.5-bath house plan boasts a thoughtfully crafted split bedroom layout that maximizes privacy and space for every member of your family.

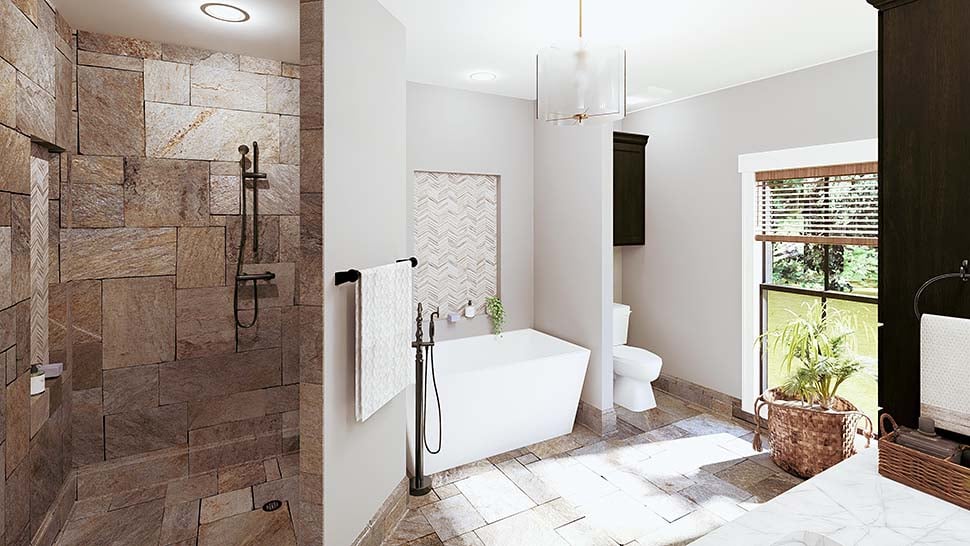

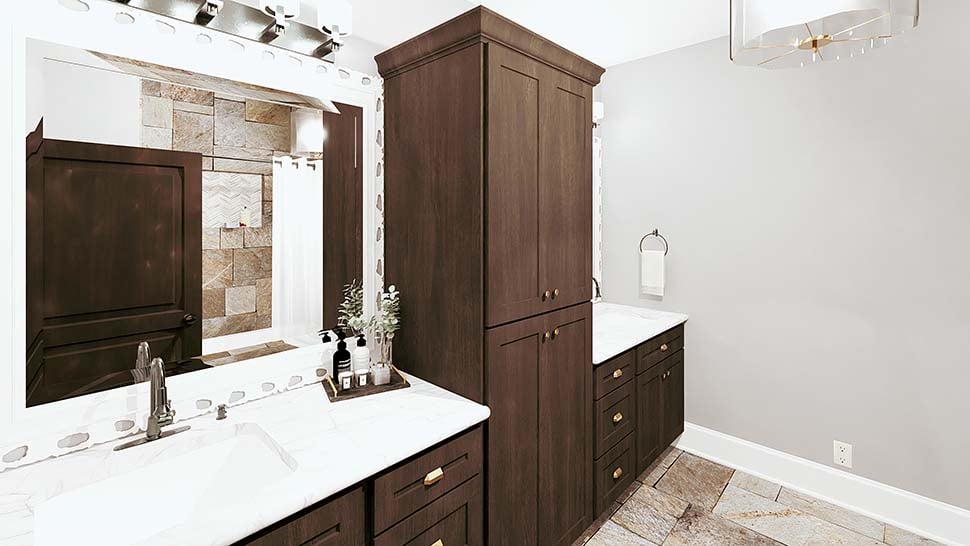

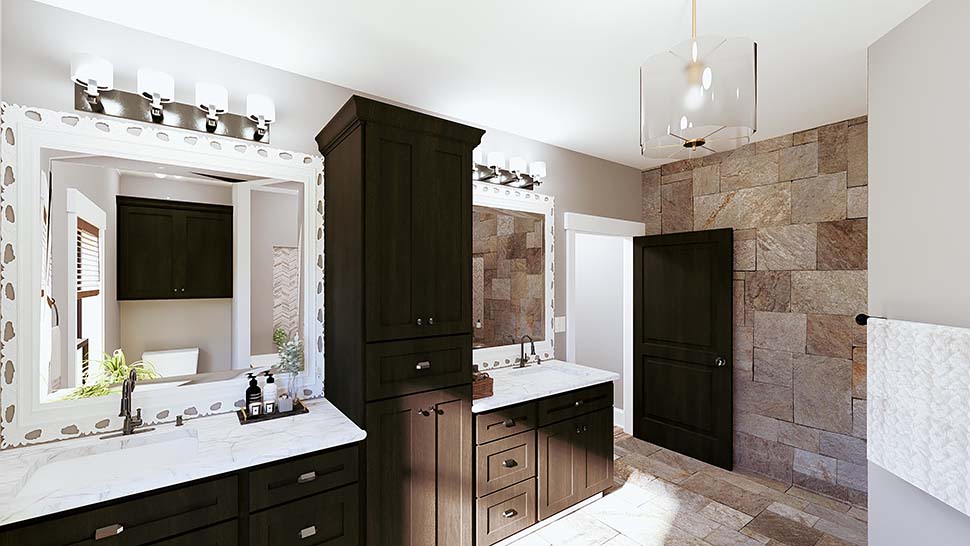

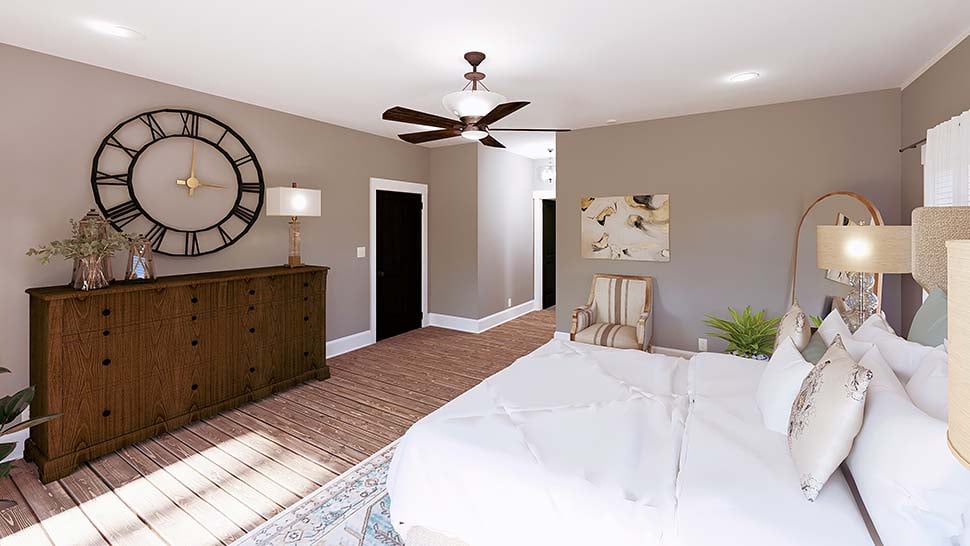

The features of this home unfold with its generously sized rooms and storage. The master suite is a private oasis, prepare to be pampered in the spa-style master bath. Immerse yourself in the custom shower or indulge in tranquility with a leisurely soak in the free-standing tub. Dual sinks add convenience and storage to this personal retreat.

Embrace the culinary enthusiast within you in the open kitchen that seamlessly integrates with the large great room. This design creates an inviting space for family gatherings and entertaining guests. The kitchen's huge island not only serves as a centerpiece but also as a practical workspace for meal preparation and casual dining. You'll never run out of storage space with the huge walk-in pantry.

Picture yourself unwinding after a long day in the great room, basking in the warmth of a ventless gas fireplace, this winter.

This house plan epitomizes the perfect fusion of form and function, capturing the essence of modern living while offering an abundance of comfort and convenience. It is a place where family memories are created. Welcome Home...

Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.

Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.

Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.

Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.

Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.

Building Sections, Details and Typical Specifications Sheets

Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
