Available Foundation Types:
Basement
: $299.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:
2x4 2x6 - * $299.00
House Width:
113'
House Depth:
95'8
Number of Stories:
2
Bedrooms:
5
Full Baths:
4
Max Ridge Height:
28' from Front Door Floor Level
Primary Roof Pitch:
10:12
Roof Framing:
Unknown
Porch:
1408 sq ft
FirePlace:
Yes
1st Floor Master:
Yes
Main Ceiling Height:
9'
Upper Ceiling Height:
9'
* May require additional drawing time.
Special Features:
Bonus Room
Breezeway
Brick or Stone Veneer
Front Porch
Outdoor Fireplace
Outdoor Kitchen
Pantry
Rear Porch
What's Included?
FOUNDATION PLAN Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

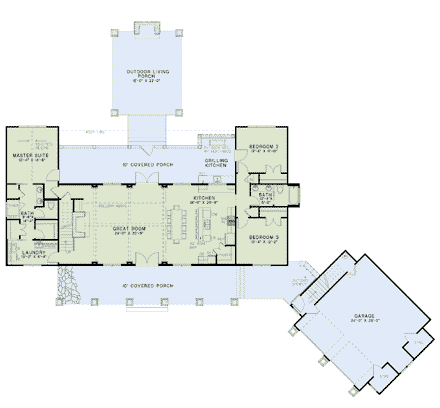

FLOOR PLANS Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout (not available for log homes).

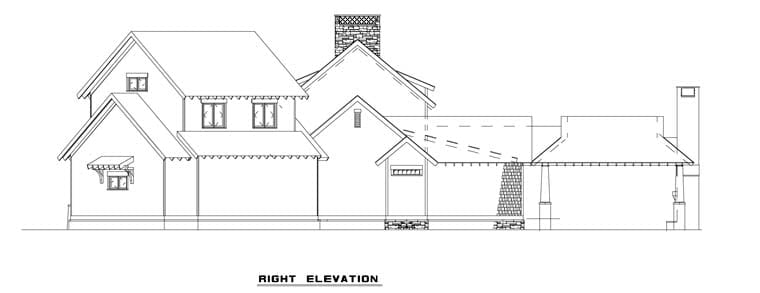

SET OF ELEVATIONS All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
MISCELLANEOUS DETAILS These are included for many interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.
SCHEMATIC ELECTRICAL LAYOUT is included unless the plan employs exterior log wall construction.
Modifications
Receive a FREE modification estimate:
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Us This is the best and quickest way to get a modification quote!
Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes and Sketch is possible.
It's as simple as that!
Cost To Build
No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:I think i want to have this house built but i need to get it priced before i can proceed. Can you give me a lumber list? If its out of my price range i need to keep looking before i buy plans. Thanks in advance Tony Evans
A:What is your budget for construction not including land?
Where are you building?
Q:The loft upstairs looks like a sold wall. Is that closed off?
A:Good morning, thank you for you interest in our design. The loft is closed off with a wall, but the balcony is open to below.
Q:What is the sq ft of all the porches? Trying to figure out total sq.
A:The front porch is 473 Sq. Ft
The Rear porch is 936 Sq. Ft
Q:Do you sell the plans for the garage separately? Client wants to build the garage first and the house later.
A:Please see plan 82323.
Q:What is the total depth of the house, from Master bed to Laundry?
A:The depth from master to laundry is 36’8”
Q:What is the sq footage of this plan with the loft area on the second floor of the home but nothing above the garage?
A:The heated/cooled space measures 2555 sq ft without the bonus above the garage.
Q:Will you send an image of the basement floor plan?
A:We do not have a floor plan for the basement as that is a conversion that comes with a $250 fee
Q:Do you have a breezeway roof plan for this house to garage connection or is this a field decision?
A:No the garage is detached on this plan
Q:Does the plan have handicap accessible door openings on the first floor?
A:The door openings are not ADA accessible but can easily be modified to be
Q:I'm trying to determine if the wall that has the range can accommodate a 48" range. I see that there are cabinets on both sides of the range. If put a 48" range there, how much cabinet space would be left on both sides?
A:Hello! If a 48” range was put in, it would leave about 1.5’ to the left and about 1’ to the right to the fridge.
Q:Can you please send me the length of the kitchen island and the size of the range that fits this plan?
A:Good morning, the length of the kitchen island is 9’, and the range shown is just a place holder, there is room on each side to accommodate the range chosen. The one shown is 2’7” but there is room to have a larger or smaller range of your choosing.
Q:Before I purchase this plan I would like to see a more 3 dimensional layout. Can I get a PDF of the plans that give me a more clear picture of the interior?
A:We can’t provide a PDF file before purchase.
Q:Is there an attic access ( like pull down stairs) in the hall between bedroom 2 and 3 to access the space above. Same question for the area above the master bath.
A:This is something that can be specified to your builder.
Q:So if cieling heights are both 9 ft the top of the windows in the dormers are like 12 ft from the floor of the second floor? Is the timber frame truss ceiling vaulted so the cieling height in great room is 25 ft tall? Is the wall between loft and great room a full wall to cieling?
A:The great room is open to the area above. The dormer in the loft is the only one that is not seen from the great room since this area is not open to below.
Q:Why are there dormers For the windows on 2nd story of the house? Is the loft not a full 8 ft ceiling all the way to the wall? Or are the windows that tall?
A:The 1st two dormers from the left allow additional light into the Great Room below. The 3rd dormer is located in the loft and allows for additional natural light. Yes, the main and upper ceiling heights are both 9 feet.
Q:Do you have any interoir views of the home? Do you have any slightly modified versions including a powder room?
A:At this time we do not have any interior photos of this home. Also, a powder room can be added as a modification, but we do not have a stock version of this plan that includes a powder room.
Q:Are all of the mechanical systems included in the plans as well as the electrical plans
A:A full set of construction drawings include the following:
Foundation Plan
Floor Plans
Set of Elevations
Building Sections
Kitchen and Bath Elevations
Miscellaneous Details
Roof Overview Plan
Q:I lose much of the notation when I zoom in. Can you please tell me what the two shapes represent in what appears to be the main loft closet? Also, the small square in the guest loft, going into the bathroom--with a door and what appears to be some sort of pass through or window. Thanks :)
A:1. I lose much of the notation when I zoom in. Can you please tell me what the two shapes represent in what appears to be the main loft closet? Answer: SUGGESTED PLACEMENT OF HVAC AND WATER HEATER.
2. Also, the small square in the guest loft, going into the bathroom--with a door and what appears to be some sort of pass through or window. Answer: HVAC
Q:Is the covered area with the fireplace included in the square footage of the porch?
A:Yes.
Porch :
1408 Sq.Ft.
Q:What is total square foot under roof including back patio and garage?And does the 2555 living count the bonus above garage
A:Here is the breakdown of the SF for this plan:
Main Floor:
2049 Sq.Ft.
Upper Floor:
506 Sq.Ft
Porch :
1408 Sq.Ft.
Garage:
838 Sq.Ft.
Bonus Room:
509 Sq.Ft.
Total Square Feet:
5,310
Q:What is the max height of the garage? Is it different than the max height of the main home?
A:garage ridge height is a few feet under the main house which is = 28 feet
Q:What does the two "IM" or "IW" abbreviations mean in the kitchen? One is in the island and the other next to the smaller refrigerator.
A:(ICE MAKER) there are two called out one in island and one at the drink center.
The designer LOVES ice. LOL
(DW= DISHWASHER, MW = MICROWAVE, MD=MICROWAVE DRAWER
Q:Is the great room area of the house timber frame? If not, are the six supports in plan structural?
A:Good morning
The ceiling beams are only a finish product and not structural.
They can be omitted.
Q:Is the outdoor living porch a screened-in porch?
A:We don’t show on plans but it’s a piece of cake to screen it.
Q:Would the plans be compatible with structurally insulated panel construction, or is that a whole different process.
A:Hello and thanks so much for choosing our design!
You can purchase the PDFS or CAD files and provide to your SIPs manufacturer.
Another great building method:
We can convert to ICF exterior walls; choice of wall thickness (concrete core is the variable).

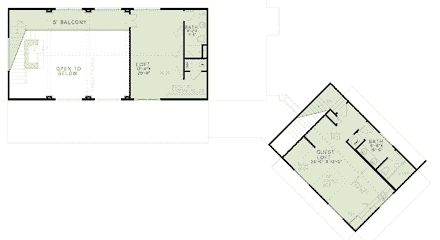

Q:Are the loft and guest loft included in the square footage of this plan?
A:First floor and second floor included. The garage bonus is not included in square footage.
Q:The dimensions for the kitchen does it include the dining area?
A:Yes, dining is included in kitchen dimension.
Q:Are there any pictures of the proposed interior of this house?
A:There are no photos at the moment. Please continue to request photos as we will provide as they are available.

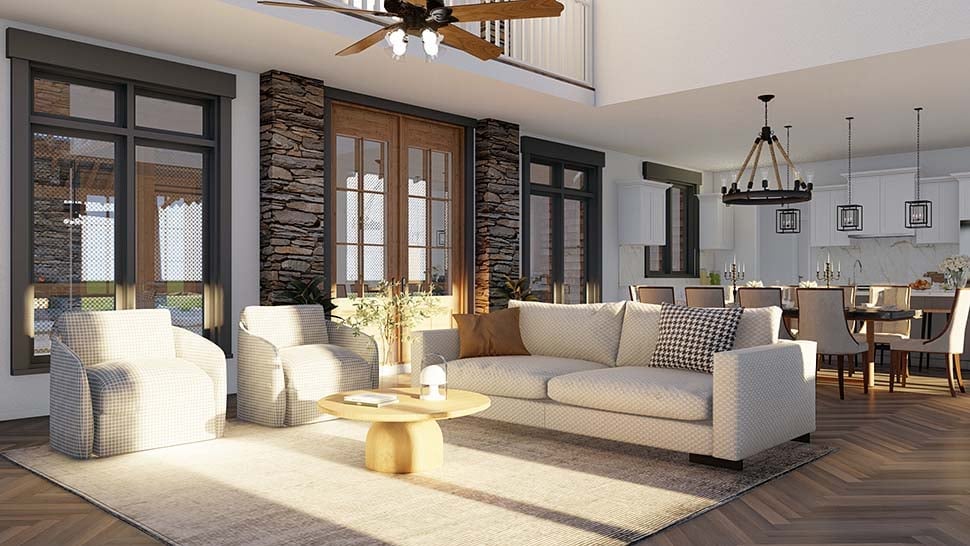

Q:Is the great room ceiling vaulted or a two story ceiling? What are the dimensions of the two master closets? Thank you!
A:Thanks so much for your interest in our design!
The great room is a vaulted two story ceiling; 9 foot ceilings on main and upper.
The master closets:
left side closet = 3’ 2”x 5’
Right side closet =6’ 10” x 5’
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
