Specifications

Total Living Area:	1041 sq ft
Upper Living Area:	1041 sq ft
Garage Area:	1267 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	40'6
House Depth:	32'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Max Ridge Height:	26'11 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Truss
2nd Floor Laundry:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

Special Features:

Entertaining Space
Open Floor Plan
Pantry
Storage Space

Plan Description

Barn Style Garage-Living Plan with a Gambrel Roof, 2 Bedrooms and 1 Bathroom

Build with vintage style when you choose Garage-Living Plan With Gambrel Roof because it's covered in cedar shake siding and boasts that iconic barn-style gambrel roof. The ground level is your garage space with parking for 3 vehicles and more room for storage or a shop area. Inside the 2 bedroom apartment over the garage, we find 1,041 sq ft of living space, 2 bedrooms, and 1 bathroom. The bedrooms are spacious and share a bath with walk-in shower. Enjoy an open kitchen, living and desk area.

What's Included?

What is INCLUDED in the plans:

Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

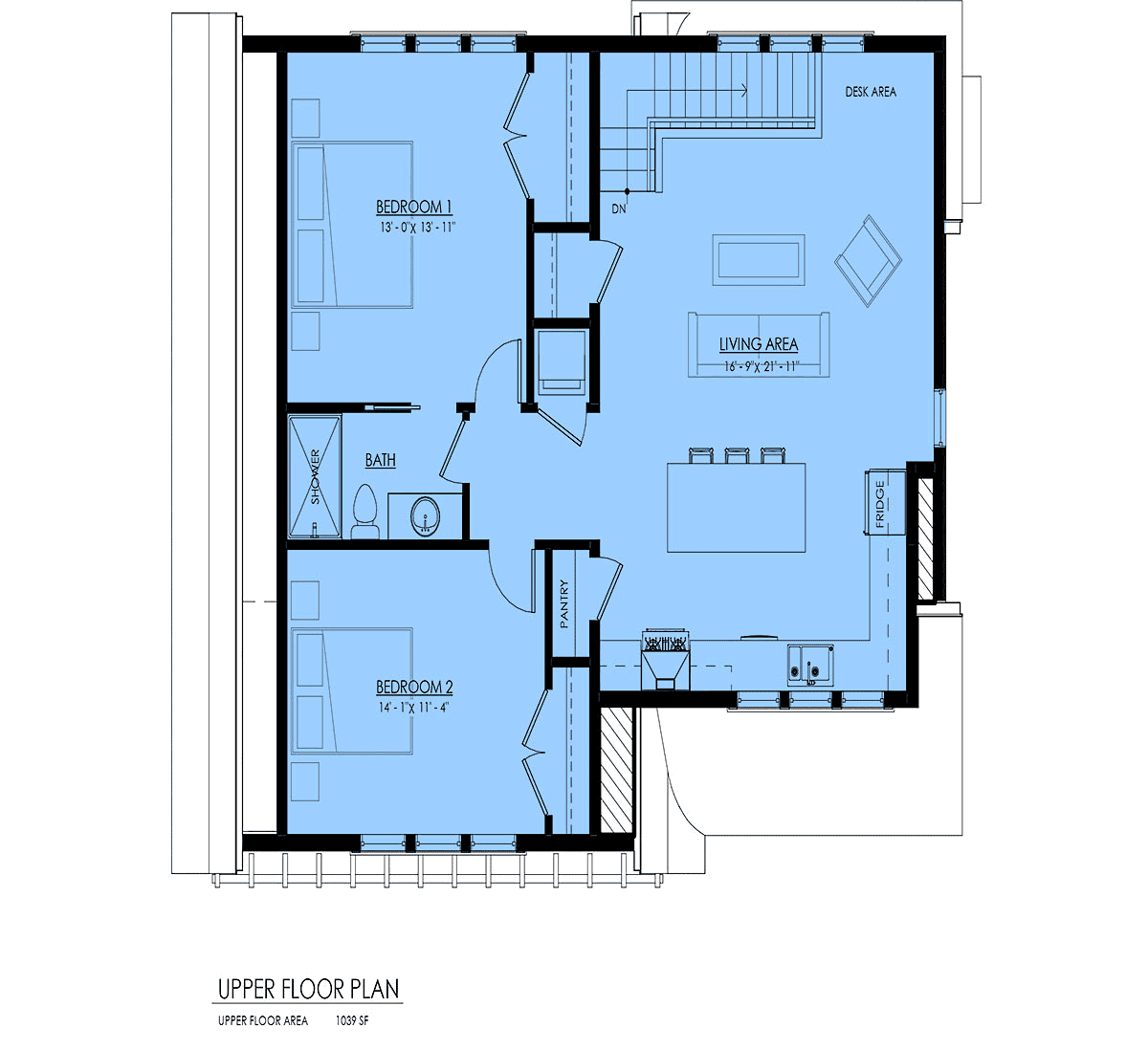

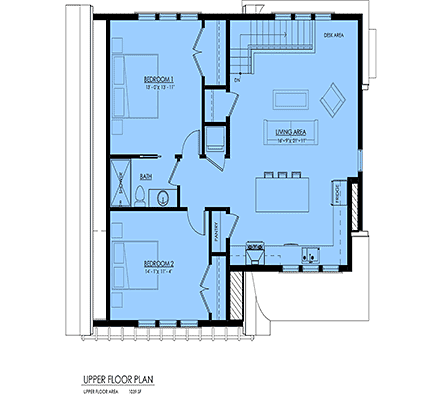

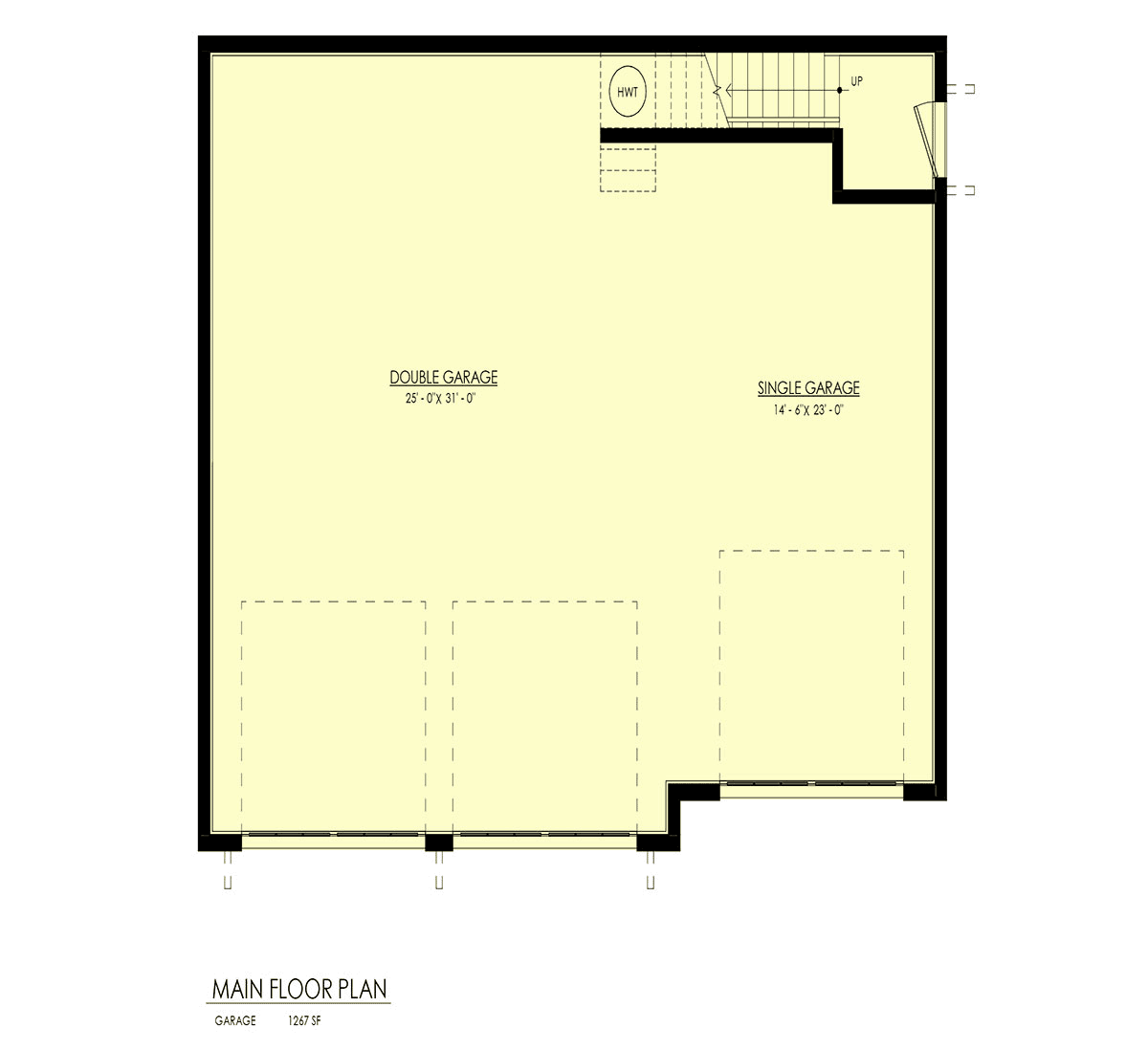

Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.

Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

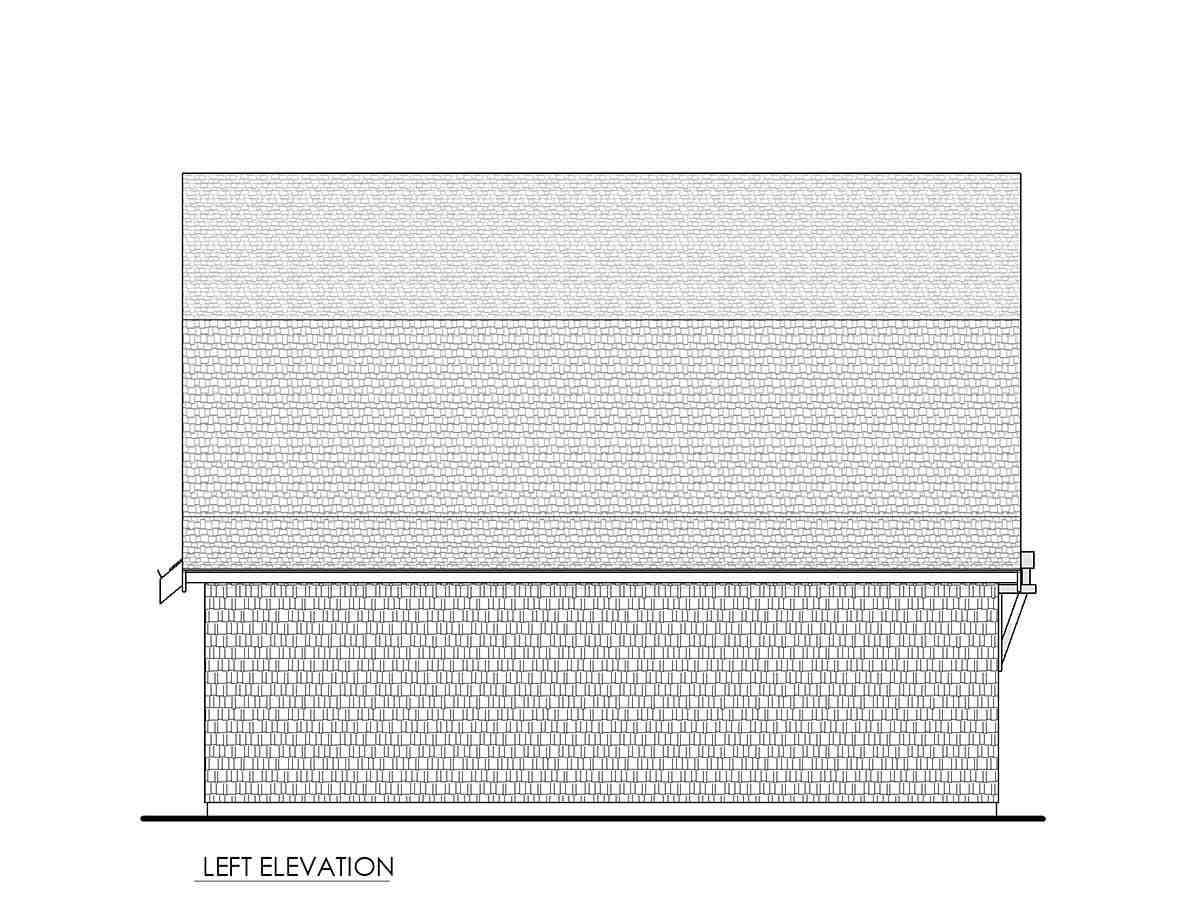

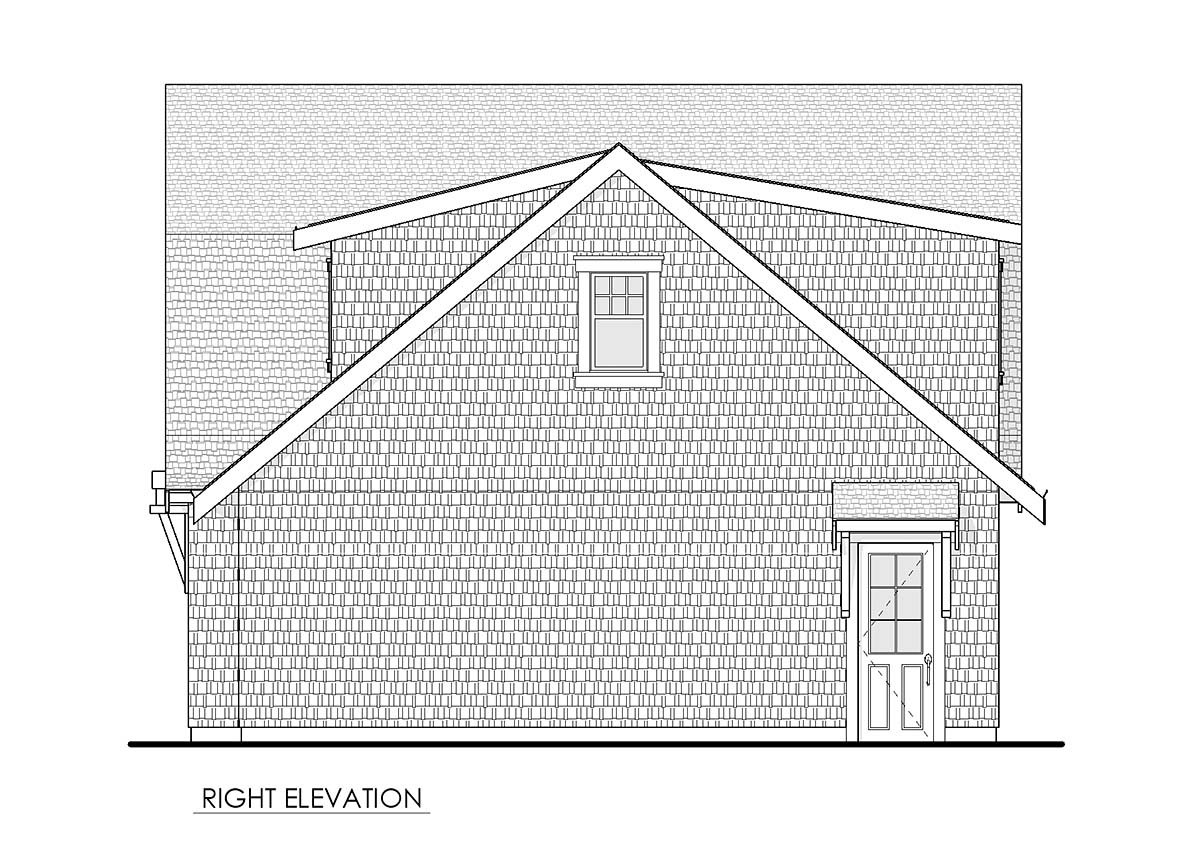

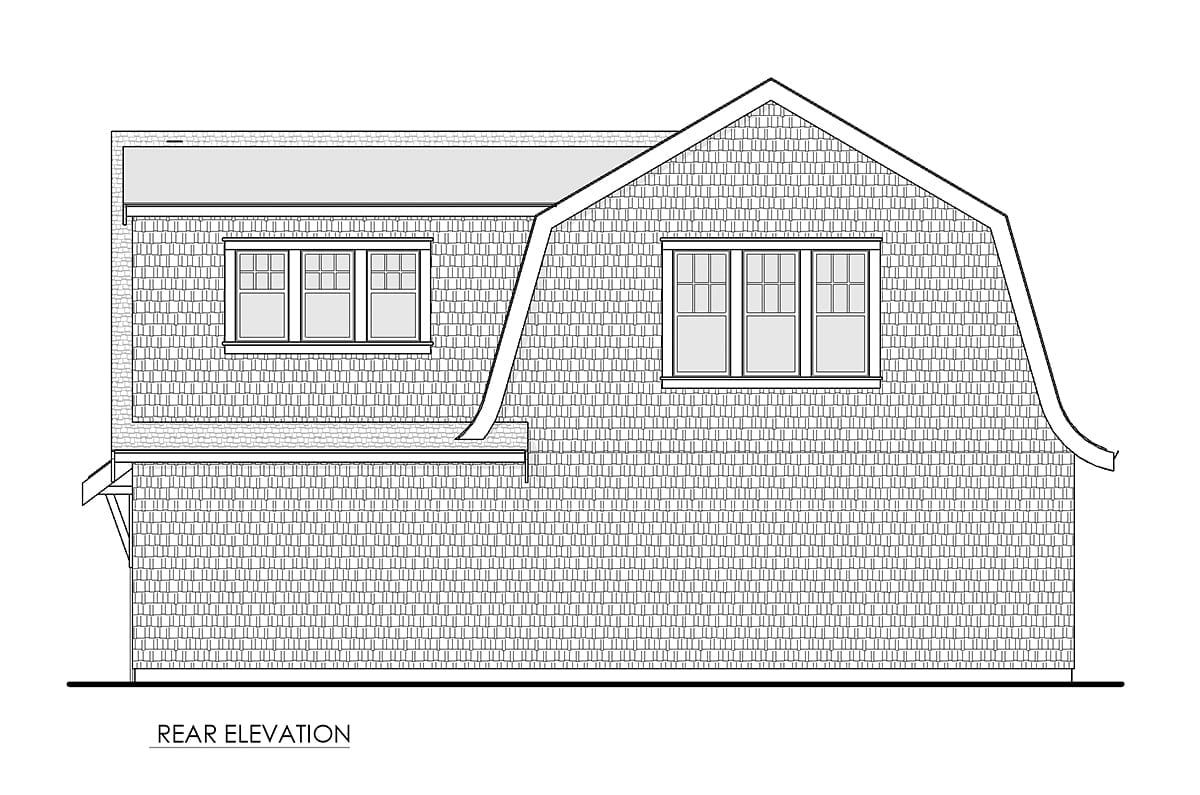

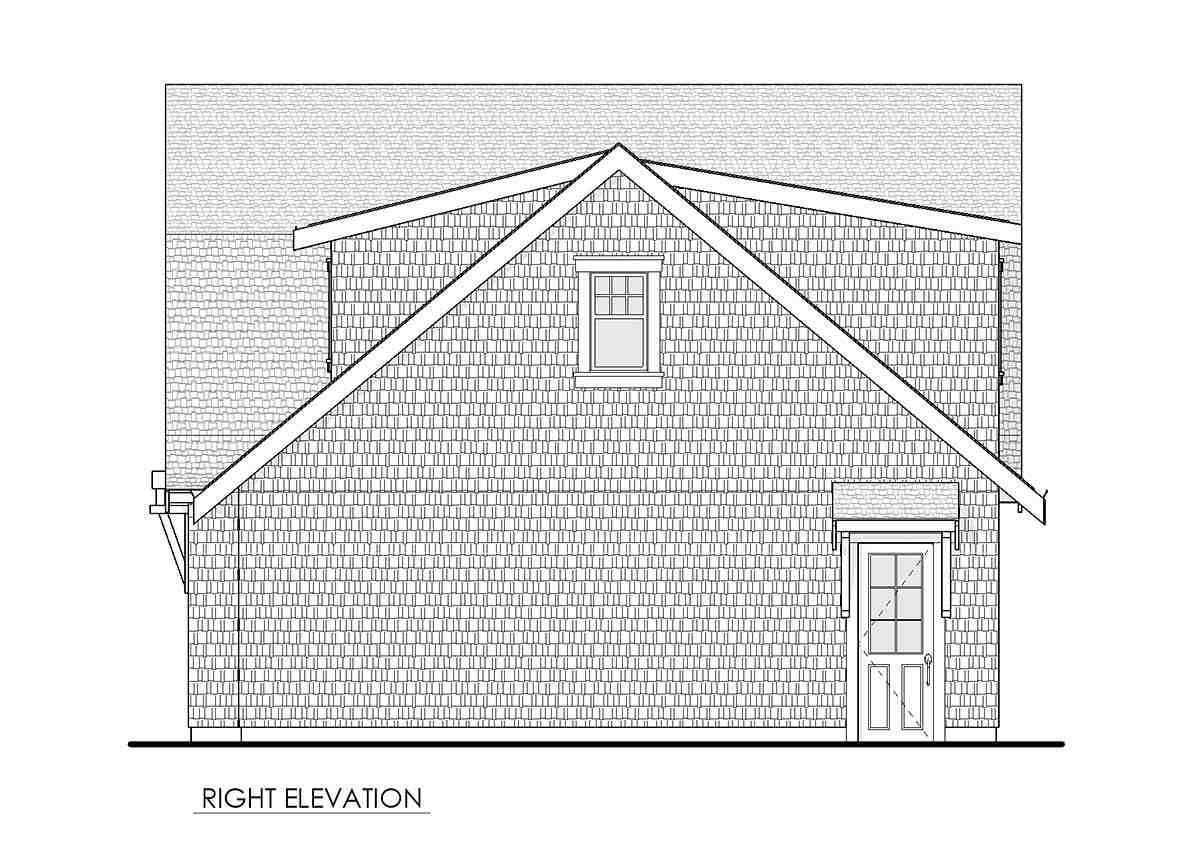

Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.

Building Sections - Overall section of the build to capture ceiling heights, drops, roof profiles, etc.

Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.

What is NOT INCLUDED in the plans:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Plumbing plans

Electrical plans

Mechanical Drawings (location of heating and air equipment and duct work)

- your subcontractors handle this

Framing layouts - with beam sizes and locations

Material lists

Renderings, photography, or marketing imagery

Energy calculations - handled locally when required

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.

If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
