2 Car Garage Plan 100184

• PDF File: $995.00
• CAD File: $1,995.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $245.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Bonus Area:	520 sq ft
Garage Area:	1008 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	36'0"
House Depth:	28'0"
Number of Stories:	2
Max Ridge Height:	26'1" from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Framing:	Truss
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

Special Features:

• Storage Space

What is INCLUDED in the plans:



Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.

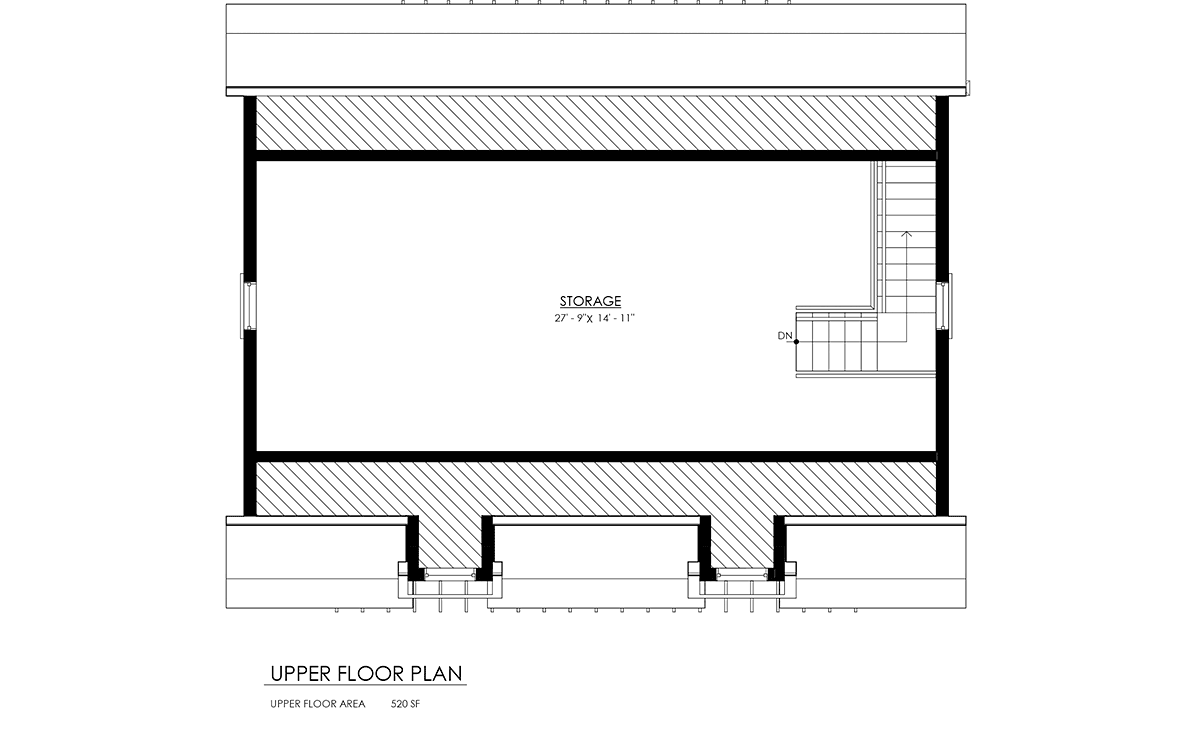

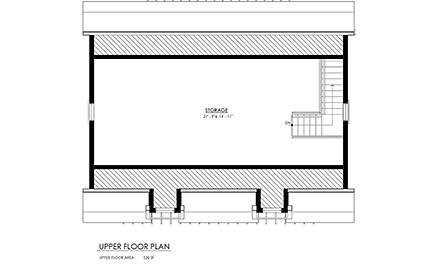

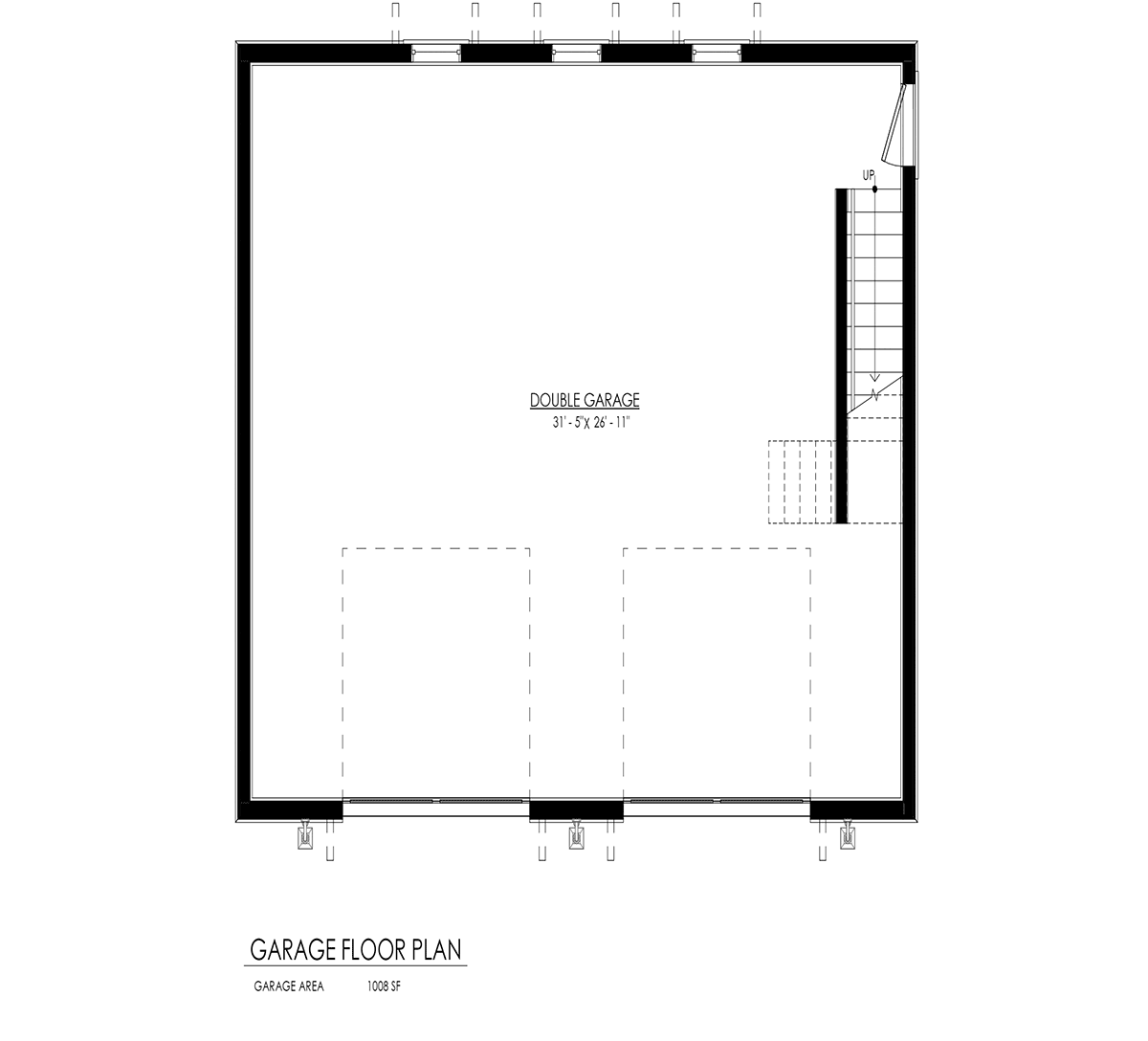

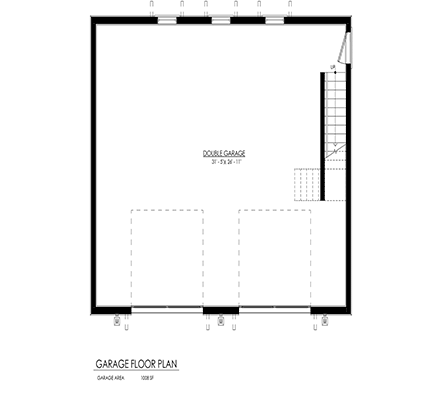

Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.

Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

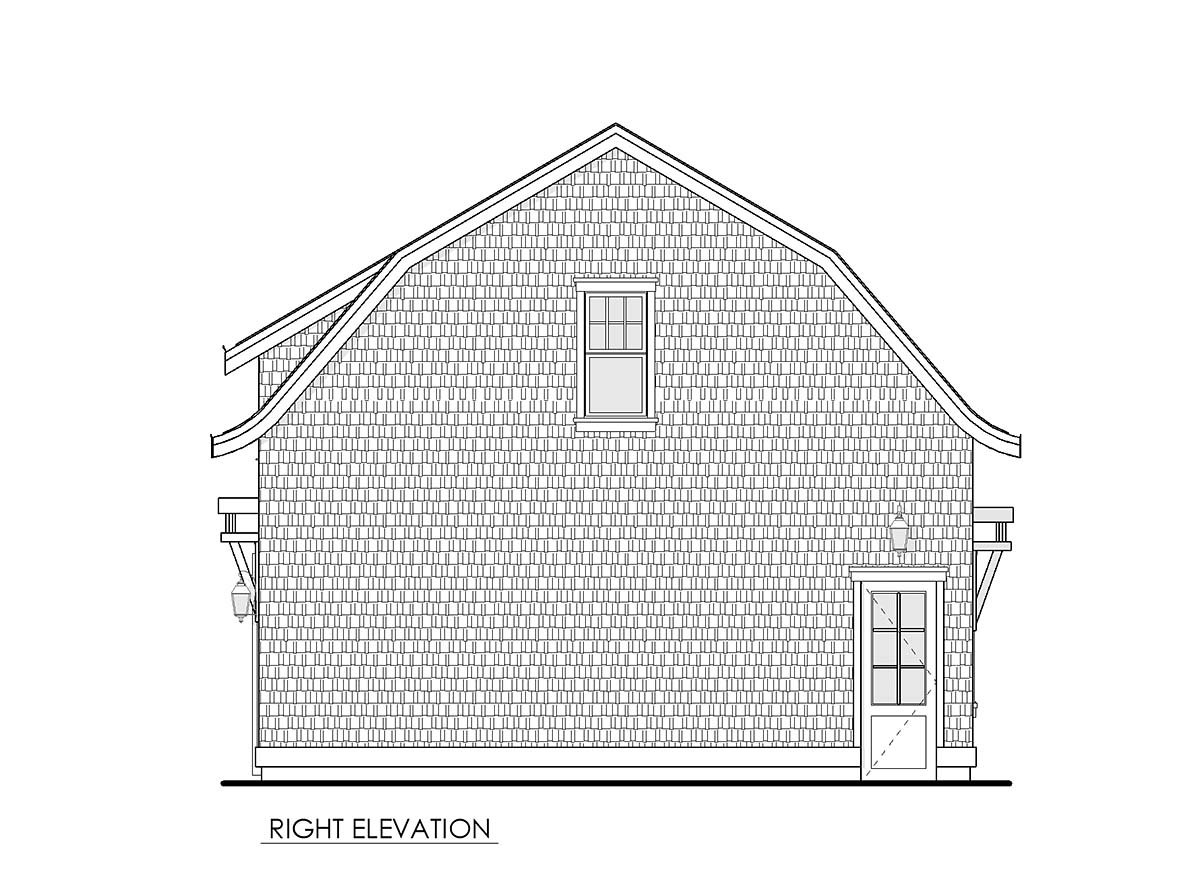

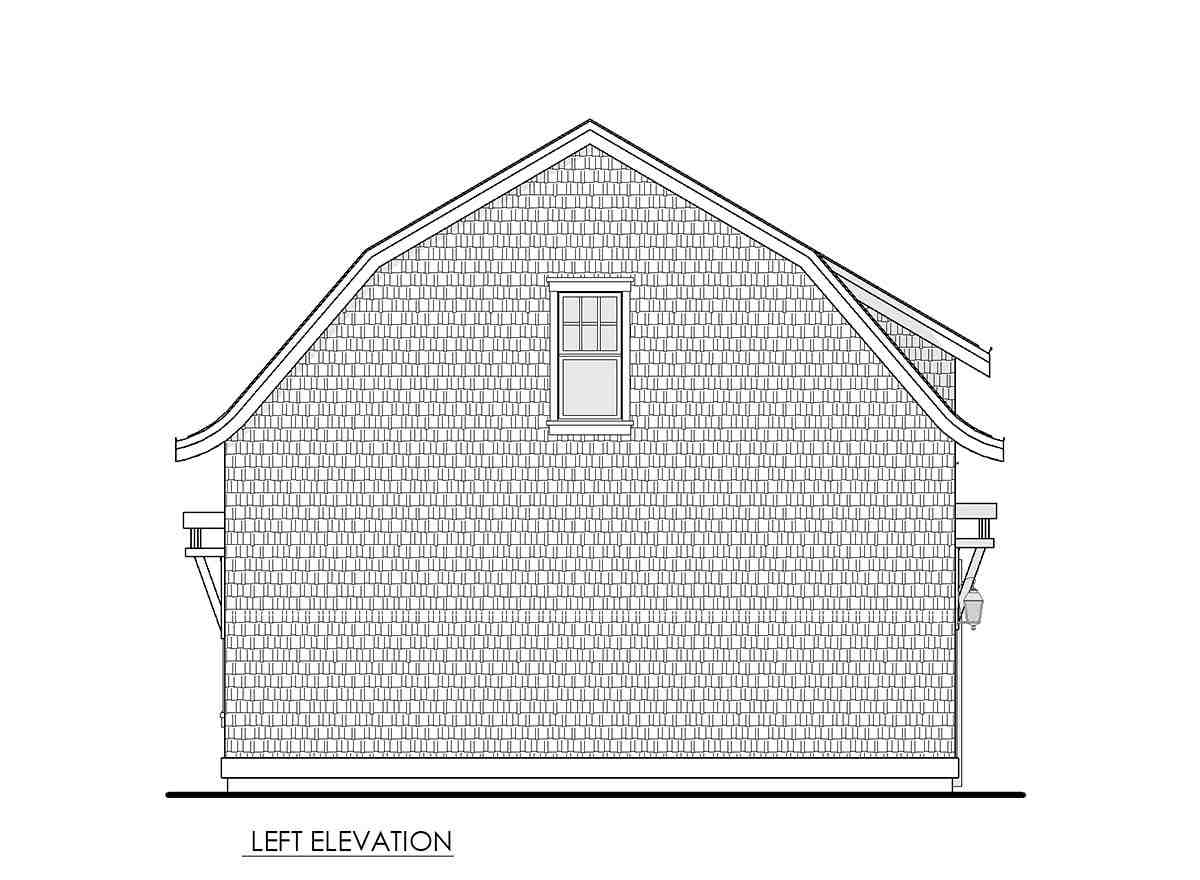

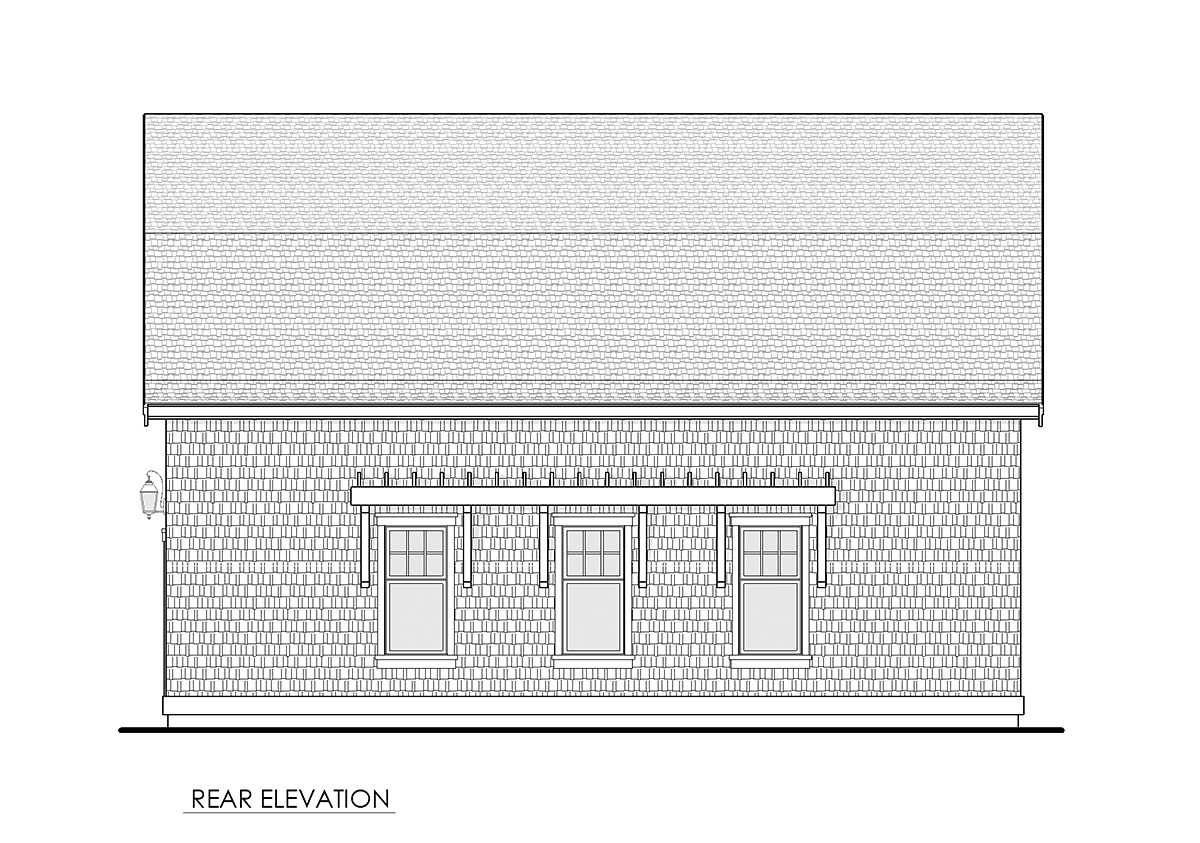

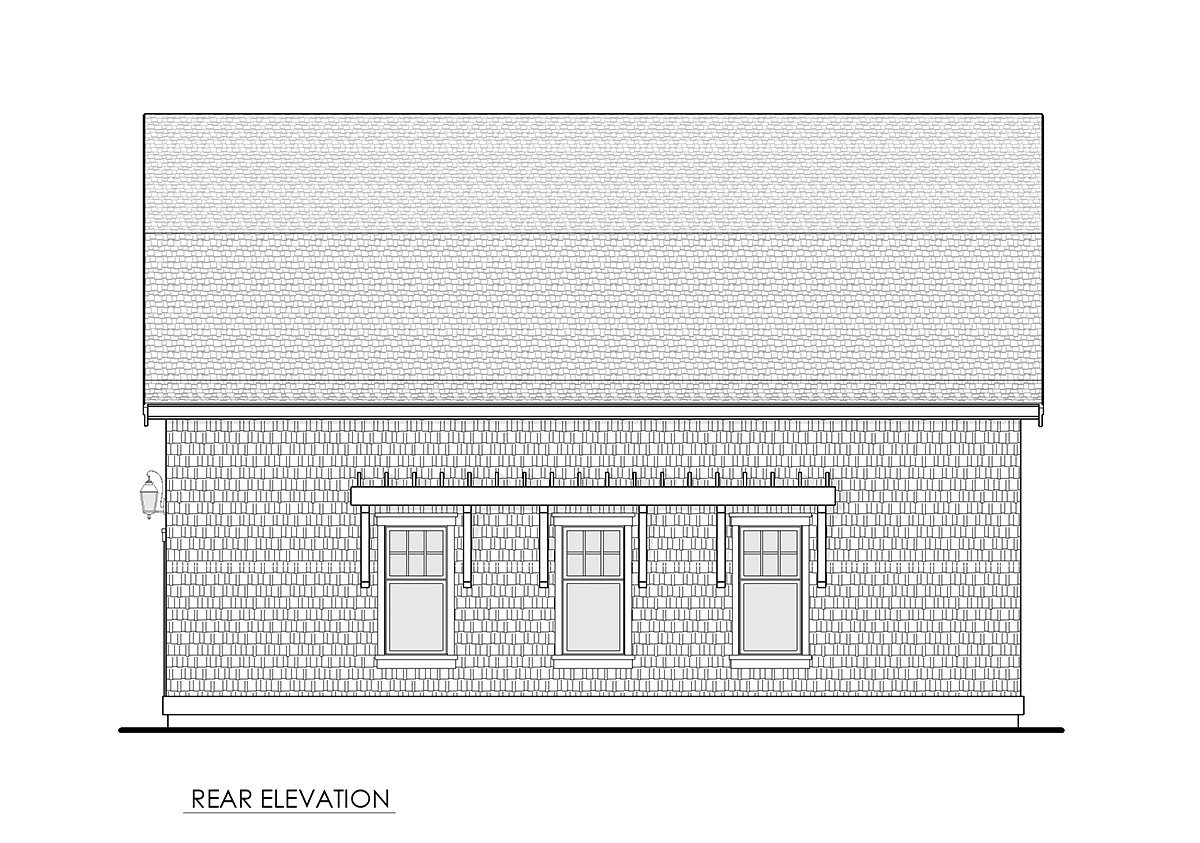

Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.

Building Sections - Overall section of the build to capture ceiling heights, drops, roof profiles, etc.

Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.



What is NOT INCLUDED in the plans:



Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Plumbing plans

Electrical plans

Mechanical Drawings (location of heating and air equipment and duct work)

               - your subcontractors handle this

Framing layouts - with beam sizes and locations

Material lists

Renderings, photography, or marketing imagery

Energy calculations - handled locally when required



Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.

If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.



Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.



Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
