Garage-Living Plan 100319

• PDF File: $925.00
• 5 Sets: $1,090.00
• 5 Sets plus PDF File: $1,131.00
• CAD File: $1,225.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	600 sq ft
Main Living Area:	50 sq ft
Upper Living Area:	550 sq ft
Garage Area:	500 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	22'0"
House Depth:	25'0"
Number of Stories:	2
Full Baths:	1
Max Ridge Height:	24'1" from Front Door Floor Level
Primary Roof Pitch:	3:12
Roof Load:	33 psf
Roof Framing:	Stick
Deck:	42 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	8'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

Special Features:

• Open Floor Plan
• Storage Space

Plans include

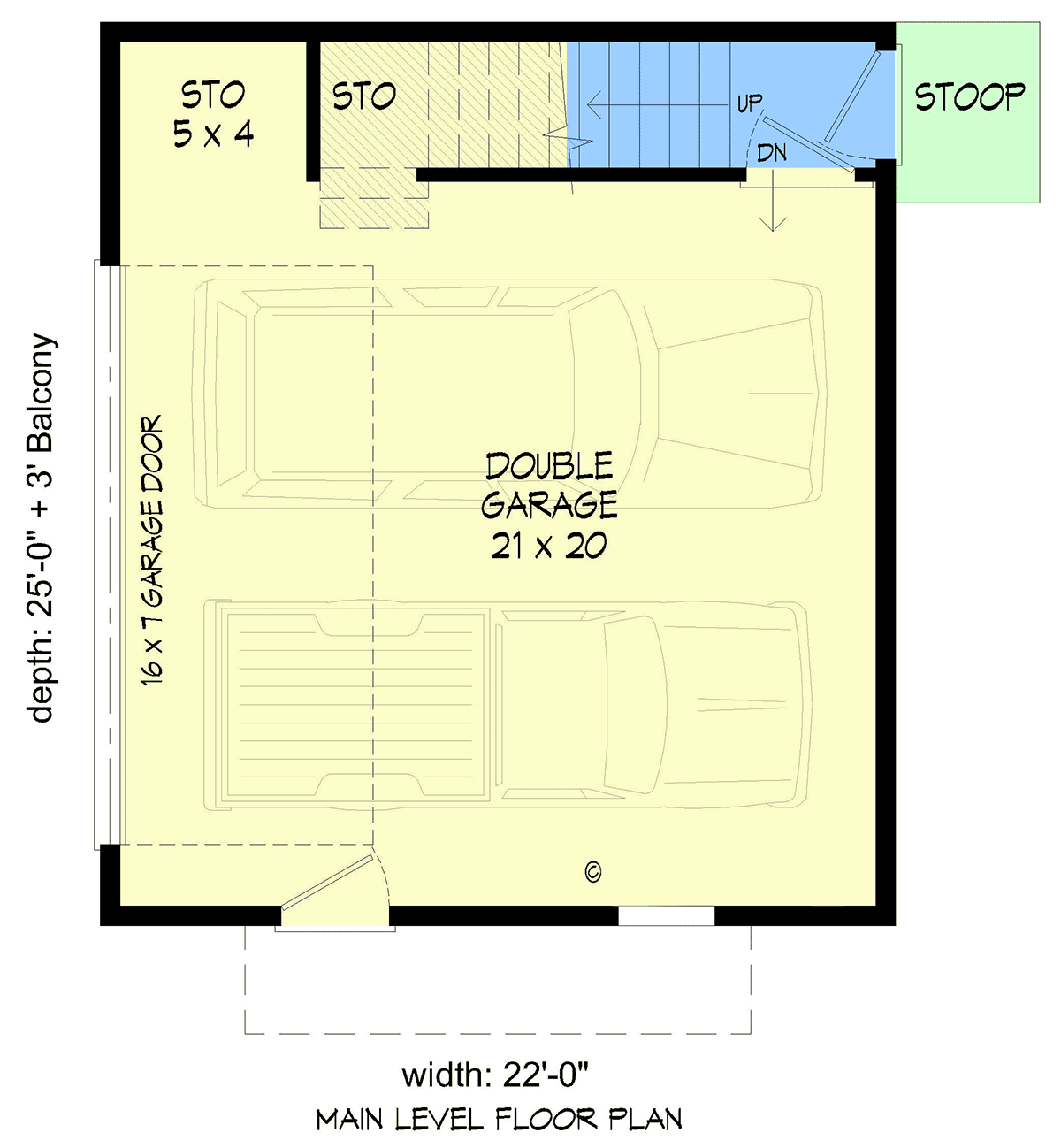

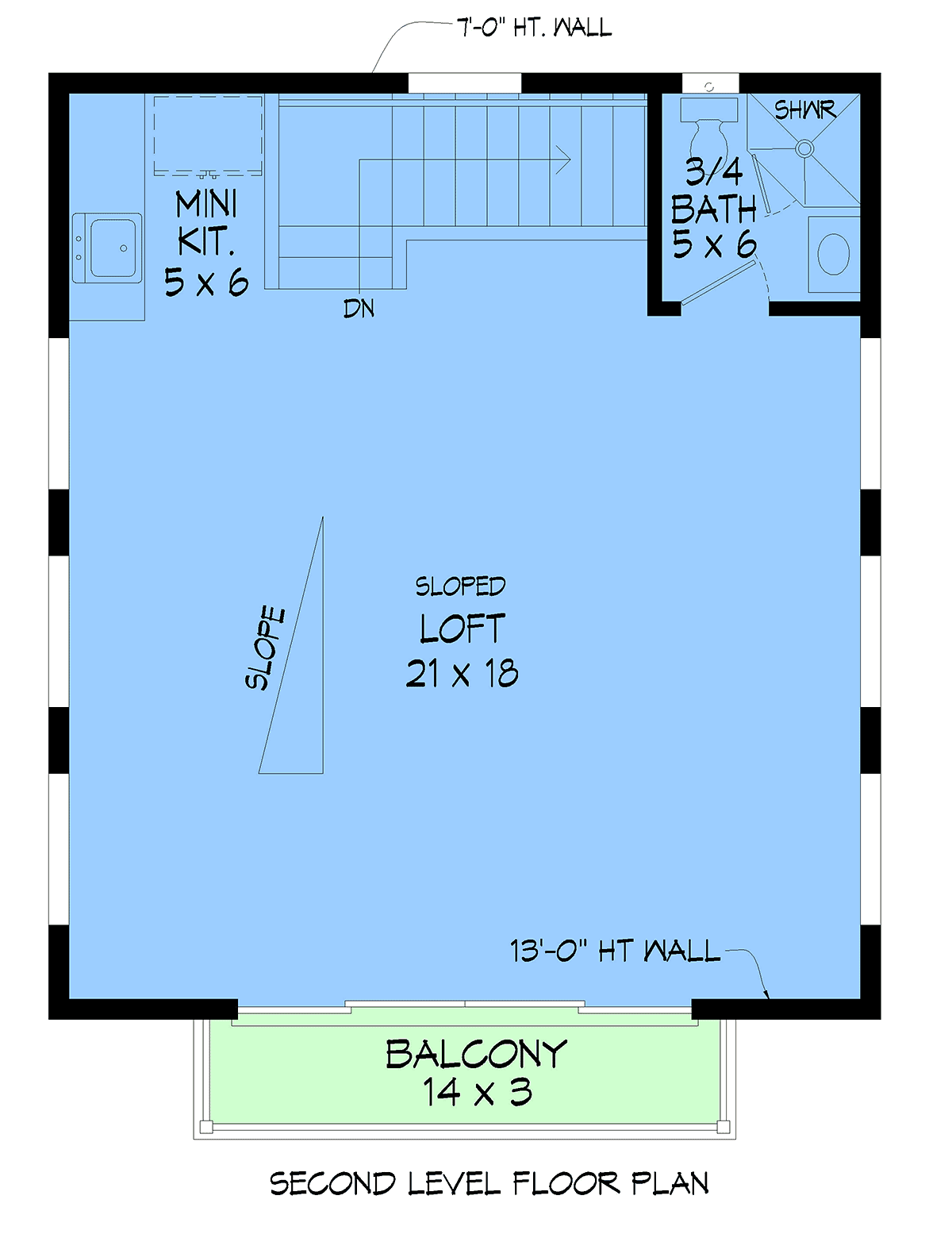

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

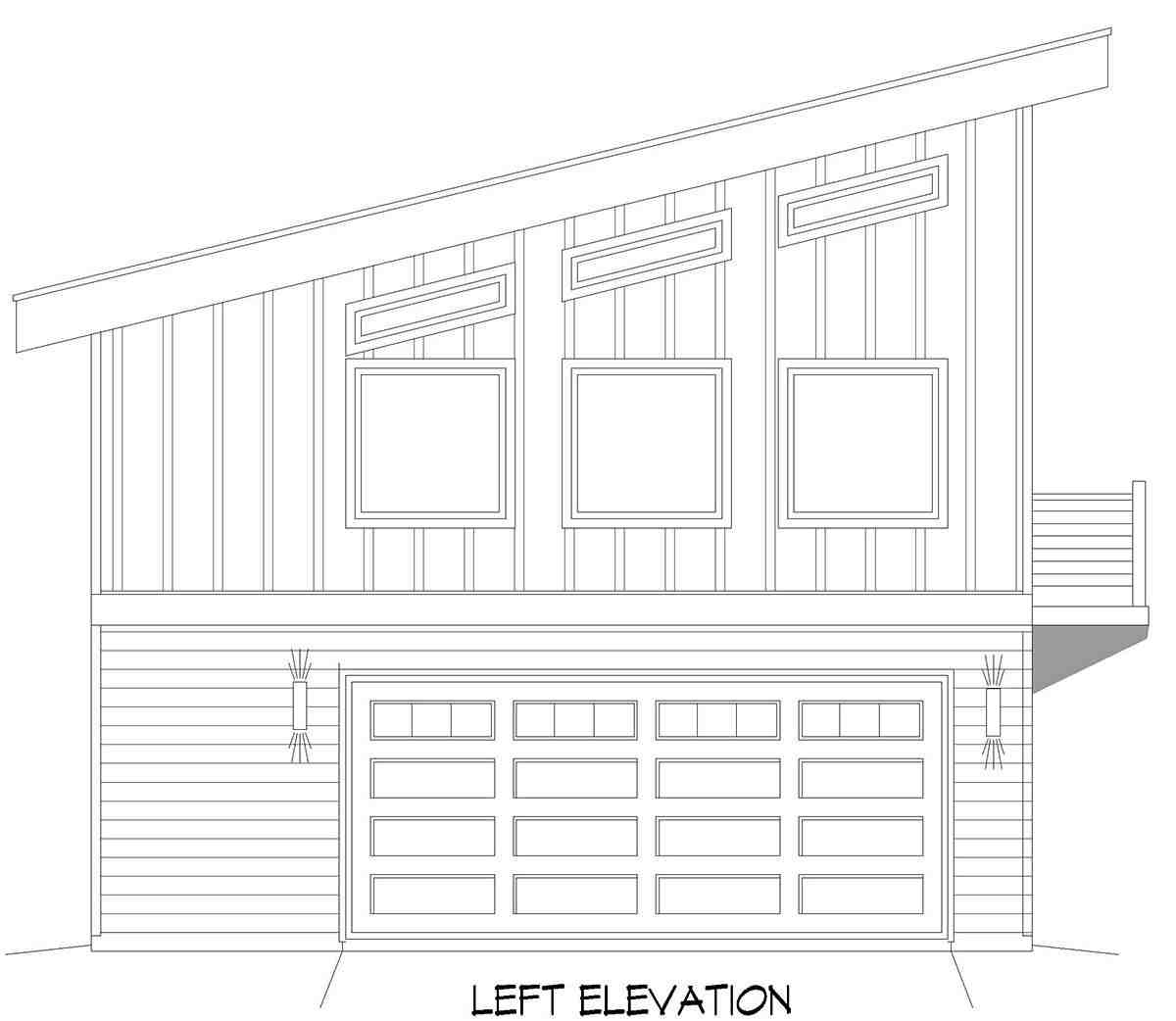

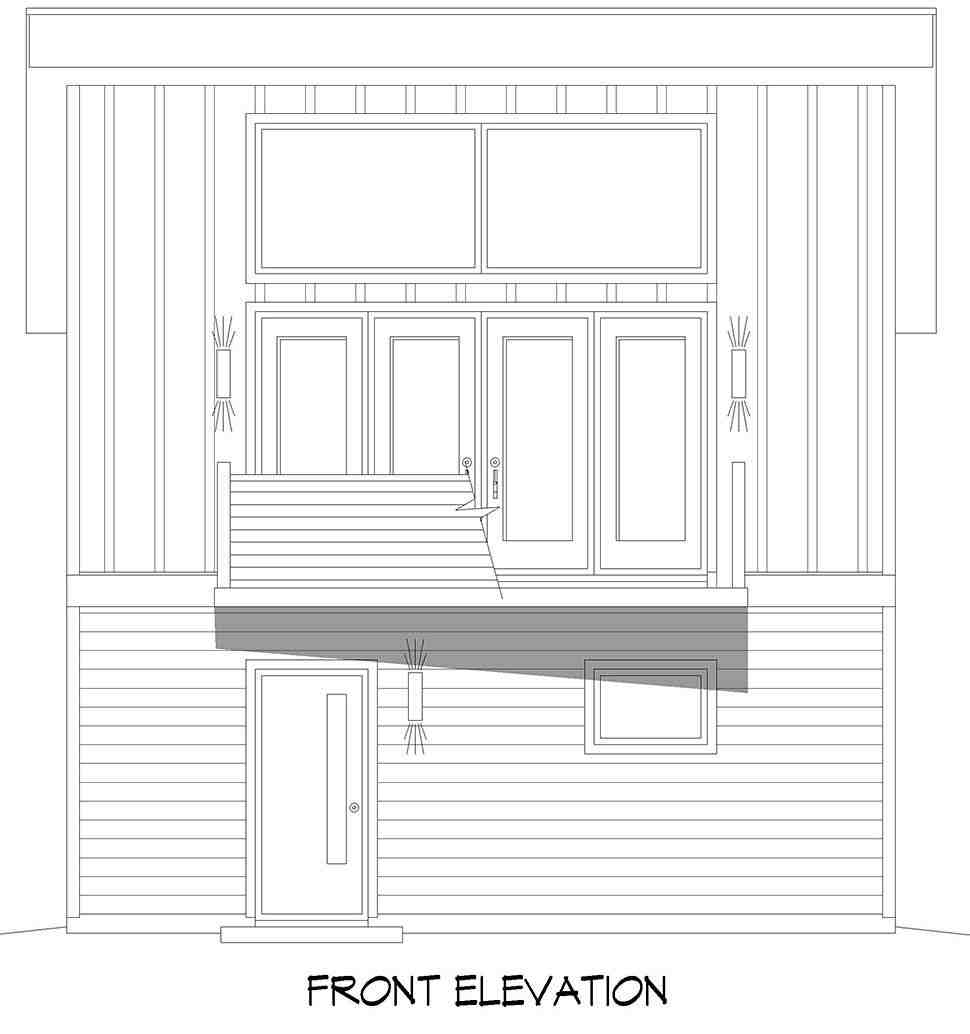

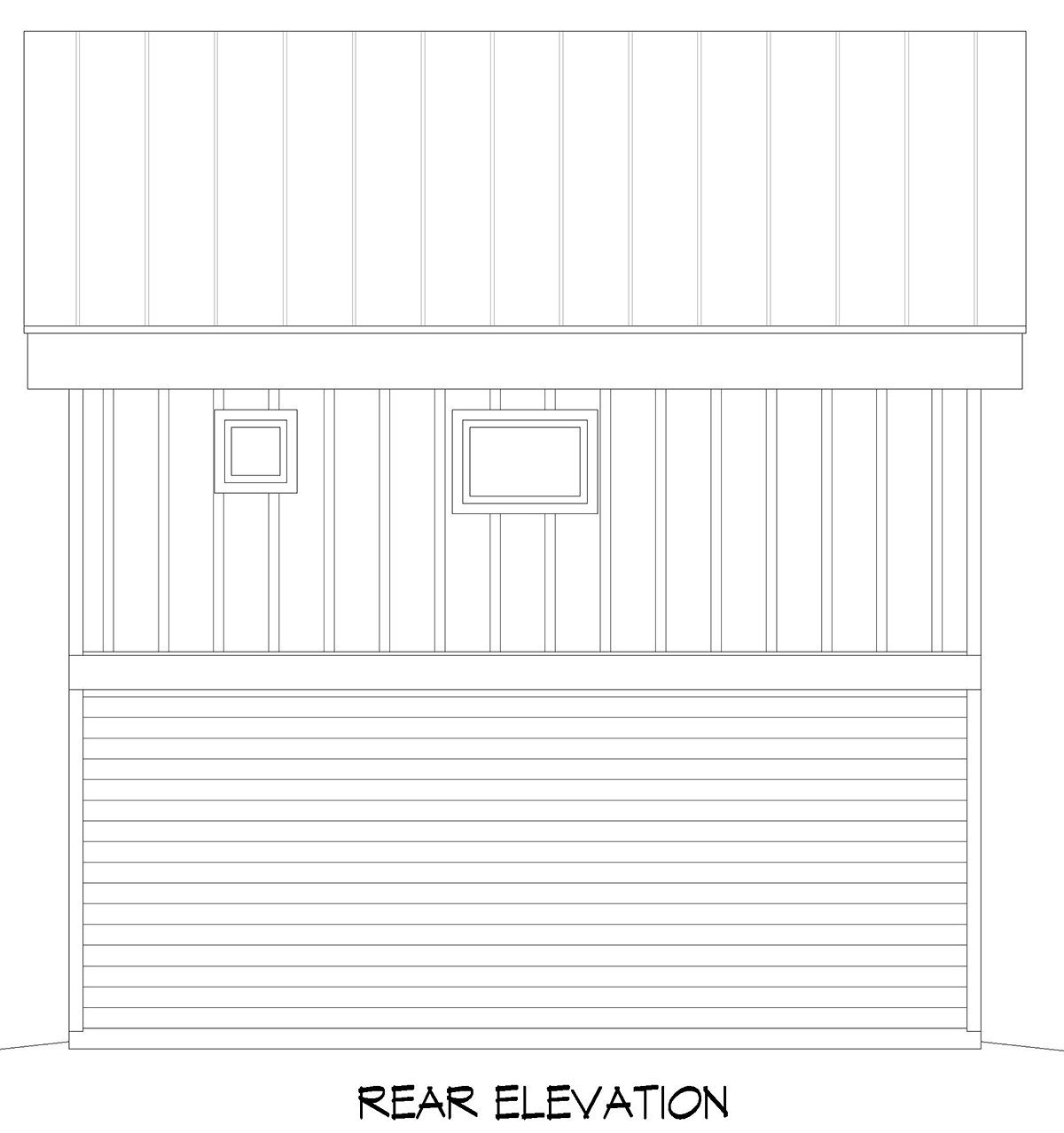

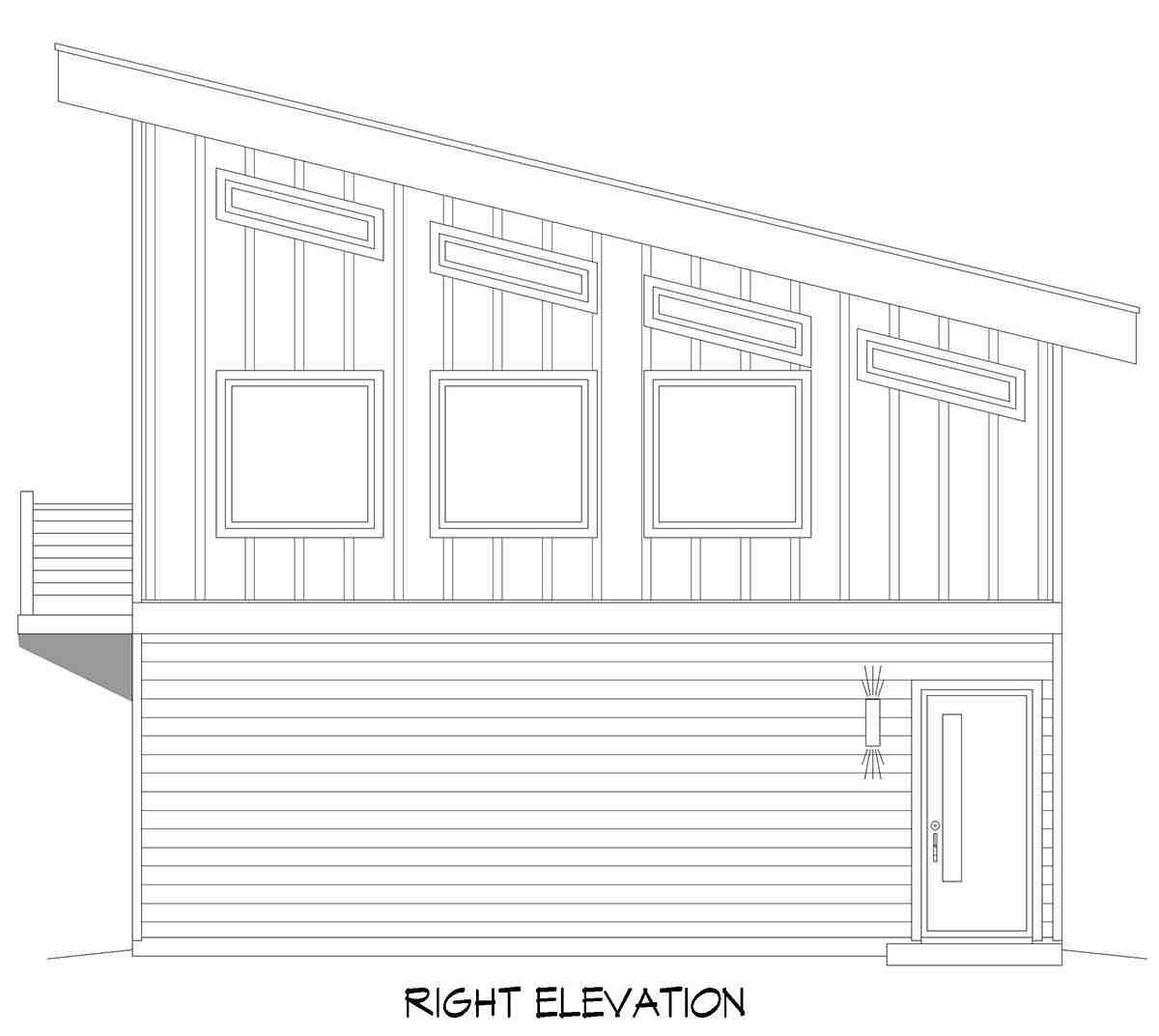

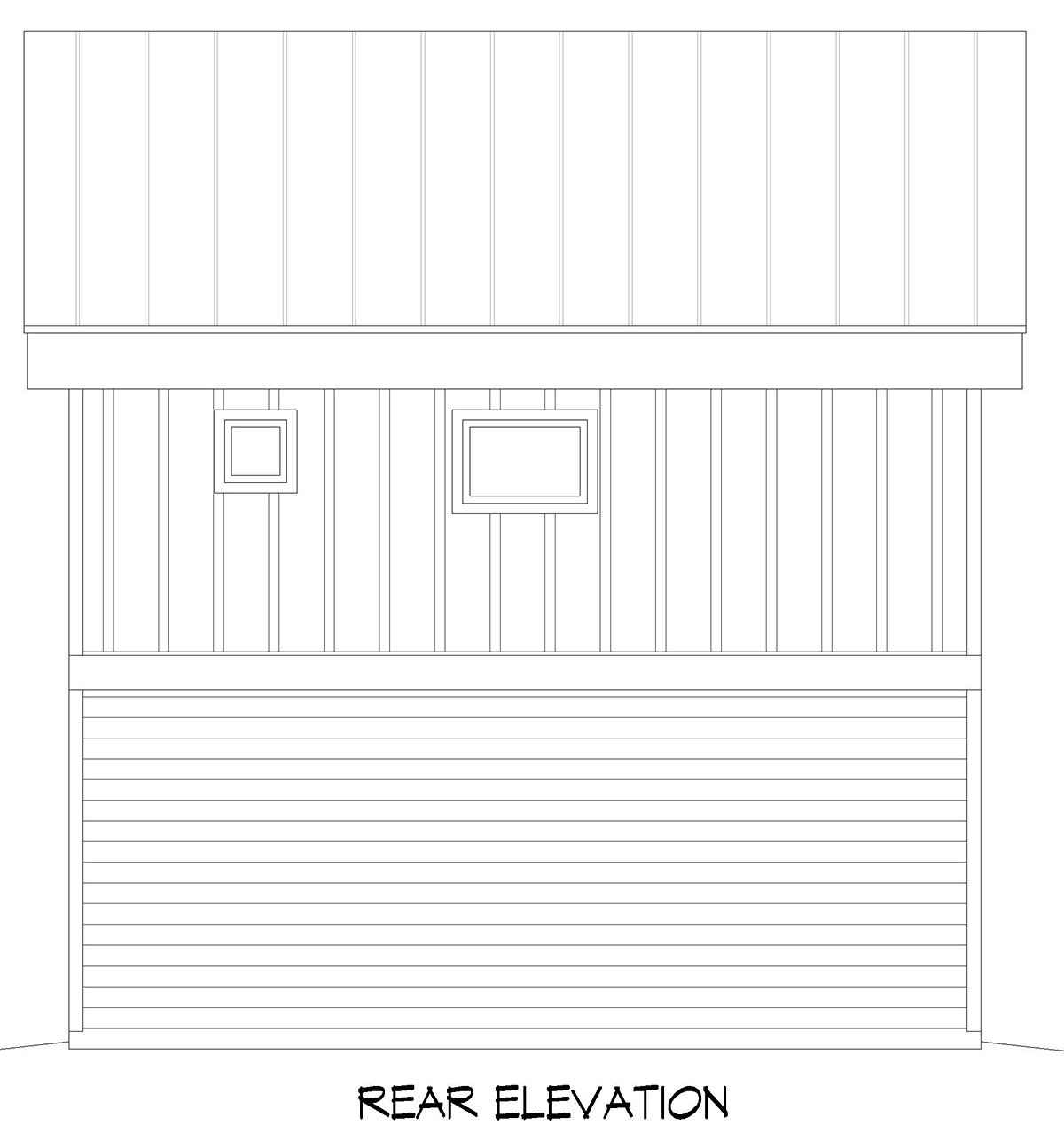

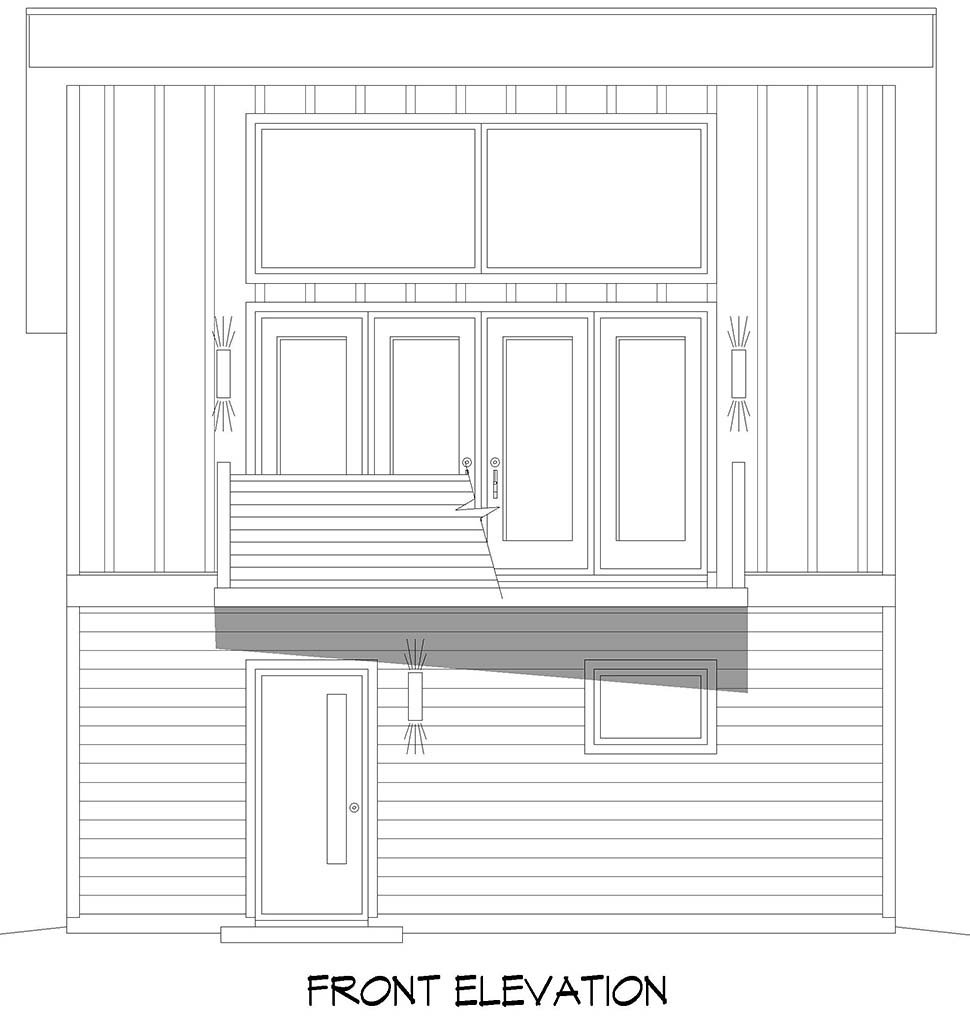

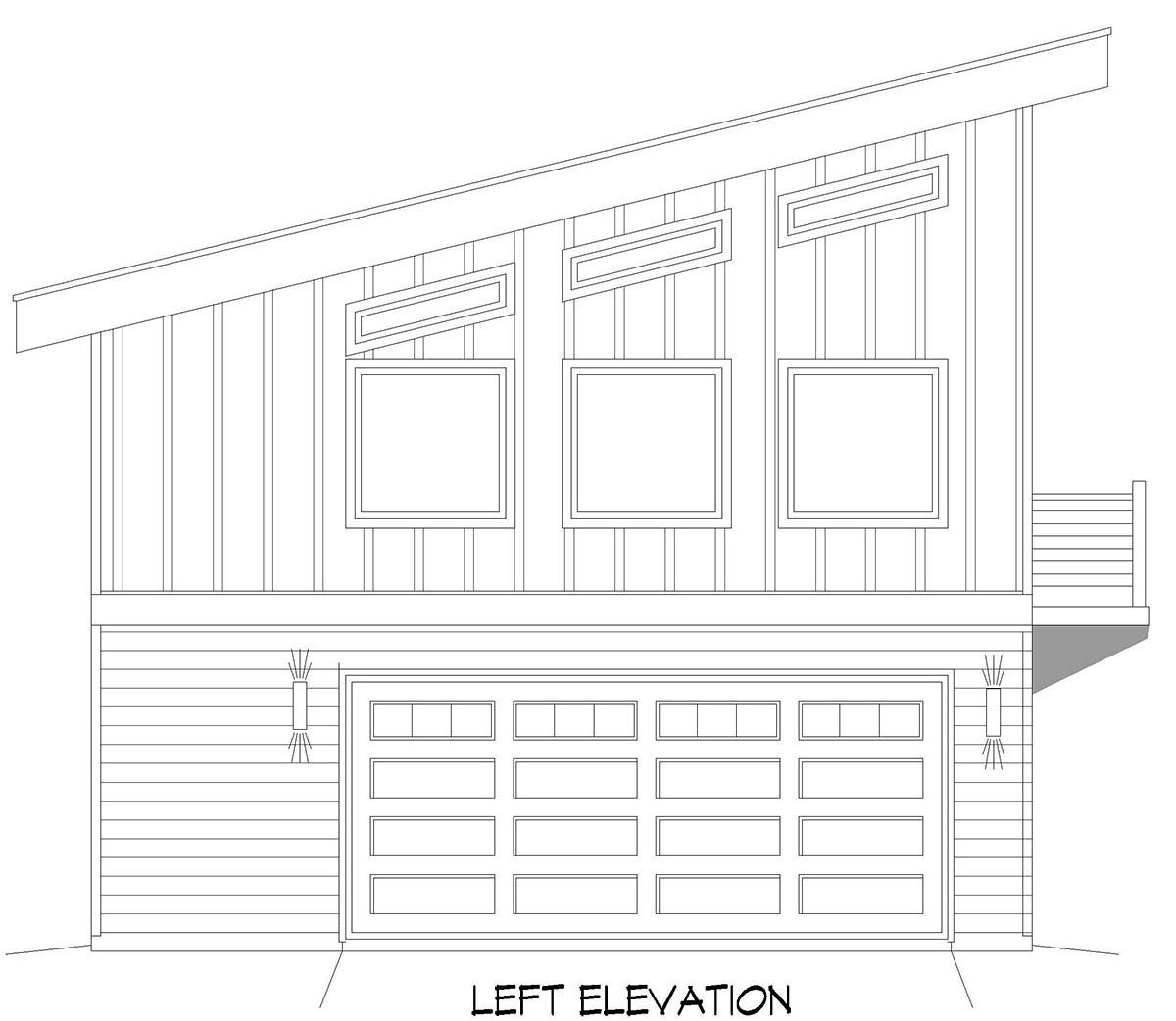

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
