House Plan 10839

• PDF Study Set: $800.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $1,000.00
• 1 Set: $800.00
• 5 Sets: $900.00
• 5 Sets plus PDF File: $1,100.00
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $150.00
• Right Reading Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1738 sq ft
Main Living Area:	1738 sq ft
Unfinished Basement Area:	1083 sq ft
Garage Area:	796 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x6
House Width:	66'
House Depth:	52'
Number of Stories:	1
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	24'6 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	176 sq ft
Deck:	430 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Front Porch
• Jack and Jill Bathroom
• Screened Porch

Country Ranch House Plan

This is quite a spread. Here, 1,738 sq. ft. delivers a three-car garage with spacious work area, comfy front and back porches and a big welcoming entry foyer. Families enjoy this style kitchen. It spreads casually to a breakfast nook and beyond to formal dining. The sunken great room has WOW appeal, a fireplace, plus entry to the screened porch. The master suite owns two enormous walk-ins and sky-lit bathroom. Bedroom #2 snuggles up to a shared bath. Bedroom #3 converts easily to a home office or den.

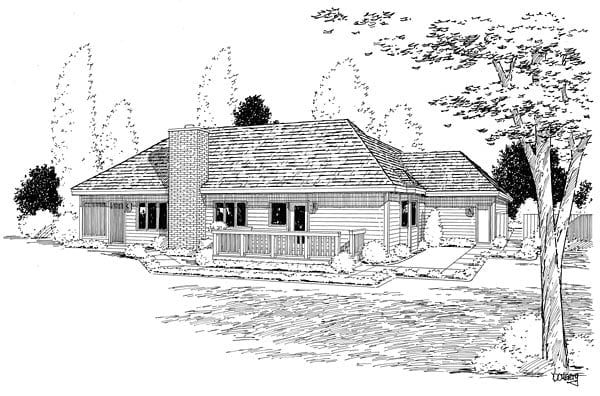

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.

Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.

Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.

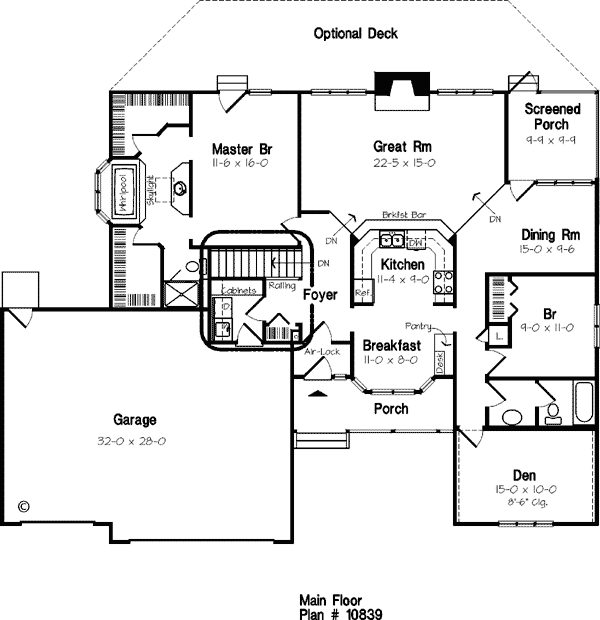

Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.

Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.
