Click Any Image For Gallery

Add to cart

Plan Pricing from $450.00

Plan Pricing

PDF File: $450.00
1 Set: $250.00
3 Sets: $300.00
5 Sets: $350.00
CAD File: $700.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $75.00
Right Reading Reverse: $50.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $25.00

Additional Notes

Plan includes both 8'0" and 9'0" ceiling heights.

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Garage Area:	1014 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x4
House Width:	39'0
House Depth:	26'0
Number of Stories:	1
Max Ridge Height:	14'6 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Main Ceiling Height:	8' and 9'

Plan Description

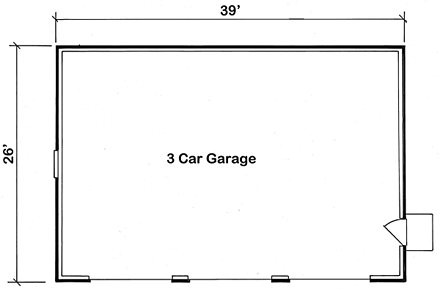

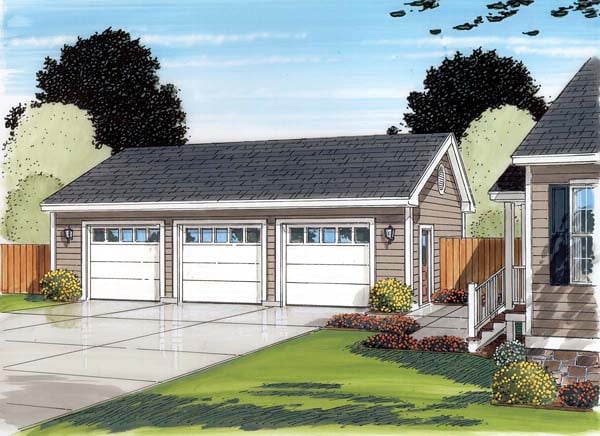

Basic 3 Car Garage Building Plans

Popular size, three stall garage design, at 26 feet deep.
We include both a 7'0" and 8'0" garage doors options in the plan.
Garage building plans for a simple four corner design for affordable construction.

What's Included?

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing points and beam placement if applicable. The foundation style will vary from plan to plan.

Roof Plan The information necessary to construct the roof will be included with your home plans. Some plans will reference roof trusses, while many others contain schematic framing plans. These framing plans will indicate the lumber sizes necessary for the rafters and ridgeboards based on the designated roof loads.

Typical Cross Section A cut-away cross-section through the entire home shows your building contractor the exact correlation of construction components at all levels of the house. It will help to clarify the load bearing points from the roof all the way down to the basement. Available for most plans.

Detailed Floor Plans The floor plans of your home accurately dimension the positioning of all walls, doors, windows, stairs and permanent fixtures. They will show you the relationship and dimensions of rooms, closets and traffic patterns. The schematic of the electrical layout may be included in the plan.

Stair Details If stairs are an element of the design you have chosen, the plans will show the necessary information to build these, either through a stair cross section, or on the floor plans.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Want to know if this plan has 9ft, walls and 9 by 7ft. doors

A: Yes... the plan comes with 8 and 9-foot walls with 9x7 and 9x8 garage doors. You just pick from the plan which version you want to build.

Q: Are the wall studs made of 2 x 4 or 2 x 6 and is it suitable for blown in foam insulation and can I put a heat pump NF that would suffice to heat the whole garage if you can give me any more information I would appreciate it thank you so much

A: Plan only has 2x4 exterior walls. I am sure you could blow in the insulation and you could heat and cool the garage it properly insulated - walls and attic. Not sure what NF means. A garage is just a house for cars anyway.

Q: Thanks in advance for your responses to my questions... 1. What is the design height of the garage doors? 2. Slab design is "stem wall". Could plans include as standard slab with footings? 3. WHat is the eve height - need to know to ensure a boat will fit inside. 4. Cost to modify plans to include (2) 14' wide doors centered on the garage instead of the 3 doors shown.

A: 1. What is the design height of the garage doors? We include both a 7'0" and 8'0" version 2. Slab design is "stem wall". Could plans include as standard slab with footings? Stem wall is standard - your builder could easily modify to a mono slab. 3. WHat is the eve height - need to know to ensure a boat will fit inside. Plan includes both 8'0" and 9'0" wall vesions 4. Cost to modify plans to include (2) 14' wide doors centered on the garage instead of the 3 doors shown. We would draw a 4 car garage version with (2)16'0" wide doors for 300.00 - it would take about 3 weeks.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.

FHP Low Price Guarantee

If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
