3 Car Garage Apartment Plan 30032

• PDF Study Set: $350.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $550.00
• 1 Set: $350.00
• 5 Sets: $450.00
• 5 Sets plus PDF File: $650.00
• 8 Sets: $550.00
• Reproducible Set: $650.00
• CAD File: $900.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $75.00
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $25.00

Plans are not to be sold in New Jersey or Maryland.

Available Foundation Types:

• Stem Wall Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Our Most Popular 2 Bedroom, 3 Car Garage Apartment Plan #30032 with 887 Square Feet Living Space

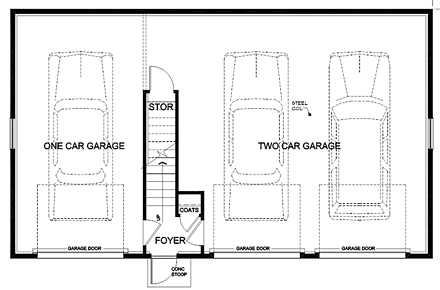

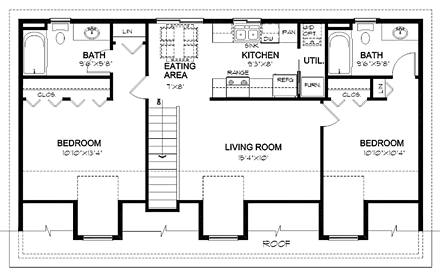

Traditional style garage apartment home floor plan with 887 sq ft of heated space above a three-car garage space. The two-bedroom floor plan also has two full bathrooms, a large living room, full kitchen with eating area and a utility room. Below the living space a three-car garage parking space with a coat closed and three individual garage doors.

Total Living Area:	887 sq ft
Upper Living Area:	887 sq ft
Garage Area:	1068 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Stem Wall Slab
Exterior Walls:	2x6
House Width:	44'0
House Depth:	26'0
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	22'0 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	8'0
Upper Ceiling Height:	8'0

Exterior Elevations Scaled drawings of the front, rear, sides of the home. Information pertaining to the exterior finish materials, roof pitches and exterior height dimensions.

Cabinet Plans These plans, or in some cases elevations, will detail the layout of the kitchen and bathroom cabinets at a larger scale. Available for most plans.

Typical Wall Section This section will address insulation, roof components, and interior and exterior wall finishes. Your plans will be designed with either 2x4 or 2x6 exterior walls, but most professional contractors can easily adapt the plans to the wall thickness you require.

Fireplace Details If the home you have chosen includes a fireplace, the fireplace detail will show typical methods to construct the firebox, hearth and flue chase for masonry units, or a wood frame chase for a zero-clearance unit. Available for most plans.

Foundation Plan These plans will accurately dimension the footprint of your home including load bearing p

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
