Turn OFF Image Gallery

Add to cart

Plan Pricing from $945.00

Plan Pricing

PDF File: $945.00
1 Set: $700.00 **
5 Sets: $800.00
8 Sets: $900.00
Reproducible Set: $945.00
CAD File: $1,700.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $75.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1085 sq ft
Main Living Area:	1085 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x6
House Width:	66'0
House Depth:	26'0
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	26'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	296 sq ft
Main Ceiling Height:	8'0

* May require additional drawing time.

Special Features:

Deck or Patio
Front Porch

Plan Description

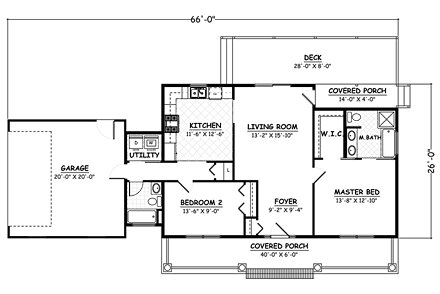

Country Ranch Home Plan with Side Entry Garage, 1085 Sq Ft, 2 Beds, 2 Baths and a 2 Car Garage

This ranch house plan can be easily converted to be a ranch design with rear entry garage.
Covered Porch - This large covered entry porch, with its elegant columns, offers shelter from the elements and has enough room for a small seating area.

Living Room - This room opens form the foyer and is connected to the kitchen through a cased opening. It features sliding glass doors that open onto a rear deck and French doors that lead to a covered porch. This living room truly invites indoor and outdoor entertaining.

Kitchen - This eat-in kitchen is just steps away from the utility room and a full bath. It also opens up to the living room, which allows for easy traffic flow when entertaining guests.

Deck - This deck at the rear of the house has a covered area that is perfect for enjoying your morning coffee or for socializing outdoors in the summer.

Master Suite - This master suite enjoys a private bath that includes a tub, separate shower, and a dual vanity. The room also features a large walk-in closet and is situated away from the other bedrooms to ensure privacy.

What's Included?

Our Plans contain the following pages: C-1 - Color Cover A-1 - Foundation Plan A-2 - Main Level Floor Plan A-2.1 - Upper Level Floor Plan (if applicable) A-3 - Exterior Elevations A-4 - Exterior Elevations A-5 - Roof Plan A-6 - Building Sections D-1 - Construction Details S-1 - Main Level Structural Framing Plan S-2.1 - Upper Level Structural Framing Plan (if applicable) S-2 - Ceiling Structural Framing Plan S-3 - Roof Structural Framing Plan E-1 - Lighting Fixture and Outlet Plan

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: What scale do you use on this floor plan? What are the dimensions of the utility room, second bathroom, master bath, and walk-in closet in the master bedroom?

A: 1 / 4” = 1’-0” , printed on D size paper. Utility = 6’-0” X 4’-6”. Bath 2 = 6’-0” X 7’-0”. MB = 8’-4” X 8’-0”. WIC = 5’-0” X 8’-0”.

Q: Hello, I plan on building in Washoe, CO, NV, Below is their requirements. Will your plans meet their requirements for submittal? Thanks Kindly>>>>Matthew NUMBER OF PLAN SETS REQUIRED FOR SUBMITTAL Residential: Full Sets: 3 complete sets, wet or electronically sealed according to applicable NRS requirements, with 2 sets of all supporting documents i.e. energy compliance certification, structural and truss calculations, truss certification letter from project engineer, coverage calculations if approaching 25000 sq ft of disturbance etc. (Building-Office & Field and Fire) Partial Sets- 3 or 4 Three sets (copies of stamped sets) consisting of site plan, floor plan and elevation sheets. (Engineering, Health, Planning and GID’s, if applicable.)

A: No home plans bought online will meet those requirements. Plan 40623 contains complete architectural and structural plans and details but the submittal documents you are asking for can only be provided by locally licensed design professionals.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
