Garage-Living Plan 40896

• PDF File: $925.00
• 5 Sets: $1,090.00
• 5 Sets plus PDF File: $1,131.00
• CAD File: $1,225.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Materials List: $368.75
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	876 sq ft
Main Living Area:	228 sq ft
Upper Living Area:	650 sq ft
Garage Area:	422 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	23'0
House Depth:	28'3
Number of Stories:	2
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	24'10 from Front Door Floor Level
Primary Roof Pitch:	2.5:12
Roof Framing:	Stick
Deck:	148 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	7'
Vaulted Ceiling:	Yes

Special Features:

• 2nd Floor Balcony
• Deck or Patio
• Entertaining Space
• Open Floor Plan
• Pantry
• Storage Space

Modern Drive-Under Garage Apartment Plan

Drive-Under Garage Apartment Plan 40896 has a total of 876 square feet of living space and 422 square feet of garage space. The upper level consists of a one-bedroom apartment, and the ground floor would make a great office space. Drive-under parking is available for 2 vehicles, and the parking space is 22 feet wide by 18 feet deep. This narrow-lot garage apartment plan is an excellent option for a detached garage plus living space.

Drive-Under Garage Apartment Plan With Optional Office

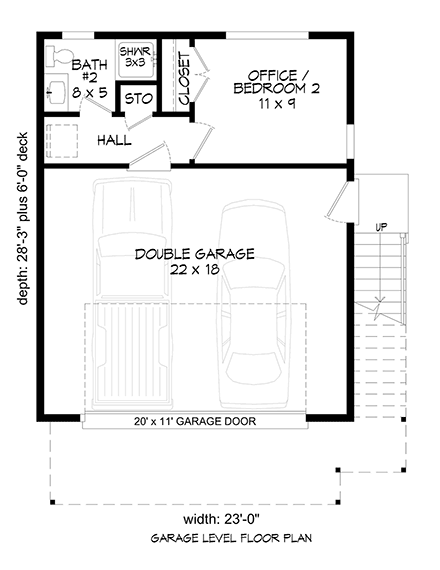

Homeowners will build this plan for a number of reasons. Firstly, the design is a good option for rental income. The upper-level apartment is autonomous from the ground level. For example, you can only access the upper level via the outside staircase. This arrangement allows your guests to access the apartment, yet your property remains safely undisturbed in the garage. Consequently, your tenants have private living space, and you have the option to use the main floor bedroom as a second rental or as your office.

Secondly, the detached garage is a great expansion for storage. Several different types of businesses require storage space whether it's "for sale" signs or building materials. Choose Drive-Under Garage Apartment Plan 40896 and keep those pricy materials on your property for quick access. Plus, storing equipment in your own building will save money verses renting a storage unit. Thirdly, homeowners like the narrow footprint of this contemporary design. For its size, it packs a great value!

Open Living Space and Great Deck

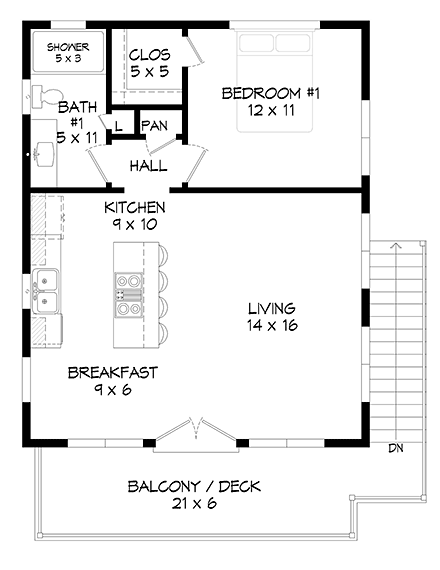

Drive-Under Garage Apartment Plan 40896 has a total of 876 square feet of living space. One bedroom and one full bathroom are located upstairs. The bedroom is a good size at 12' wide by 11' deep, and it has a walk-in closet. The full bathroom includes a linen closet and tub/shower combination. The floor plan is designed to maximize comfort in the living area. For example, the sink and refrigerator are pushed up against the left wall, and a large kitchen island adds seating and prep space. Even with a few guests, everyone has enough elbow room to be comfortable in the open living space.

In addition, an overflow of guests will enjoy spending time on the deck outside. Finish the decking and garage door with a rich color wood stain, and paint the walls in a soft gray for a contemporary aesthetic. Metal railing on the staircase and deck adds to the industrial vibe of this design. Lastly, we love the angled roof and the floor-to-ceiling windows which enhance the upper-level apartment.

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions

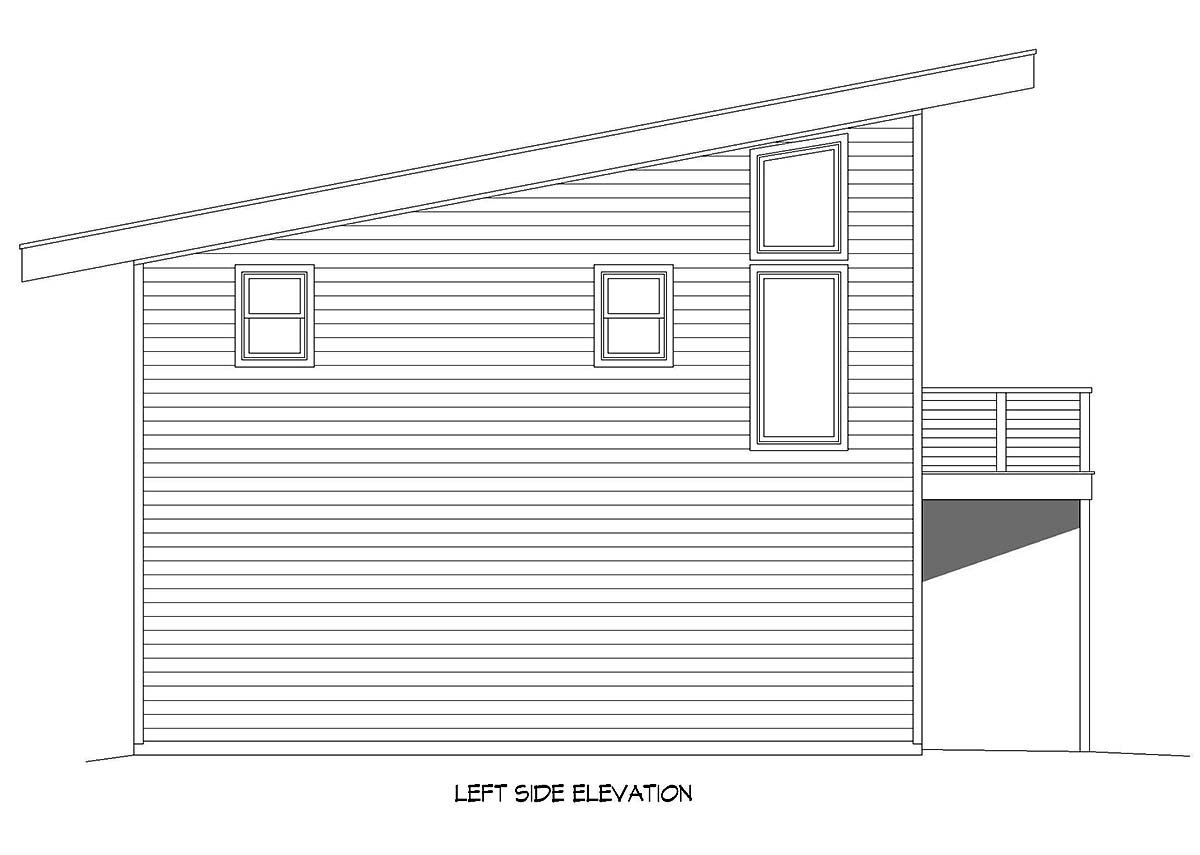

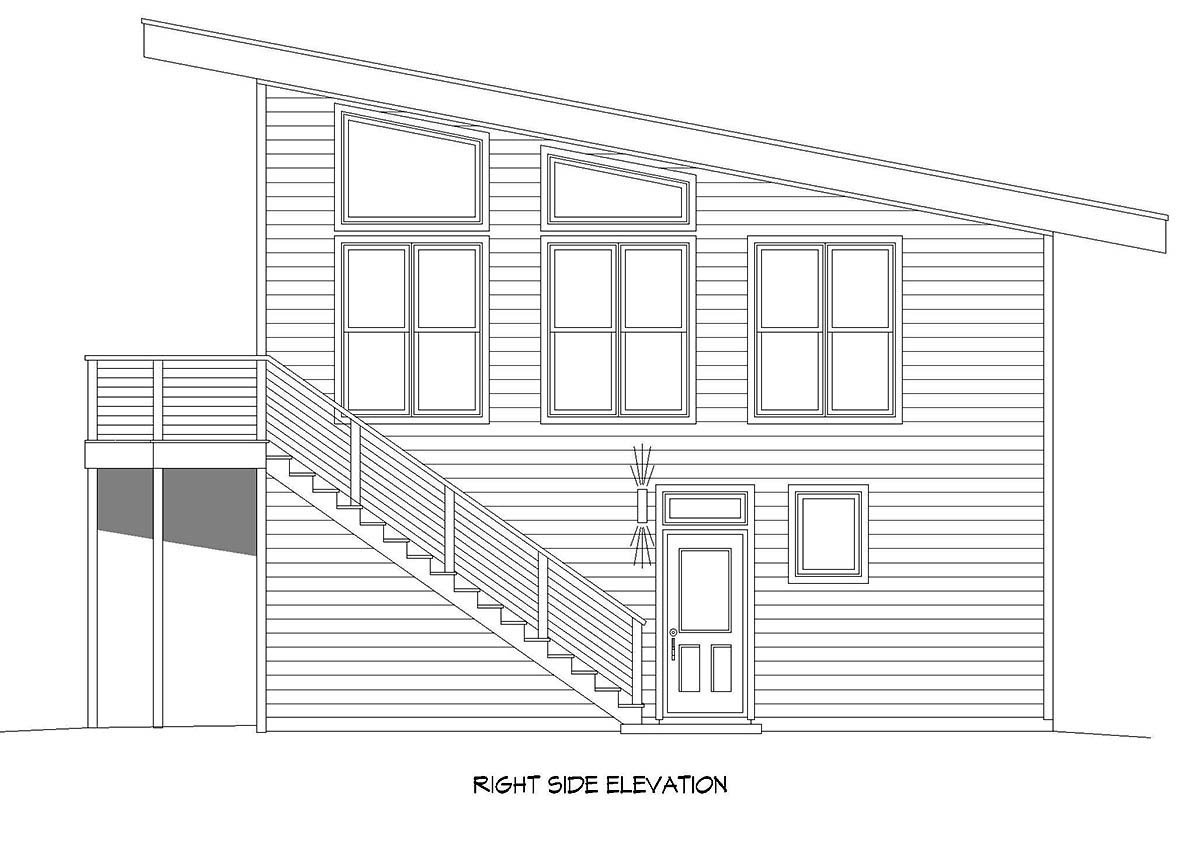

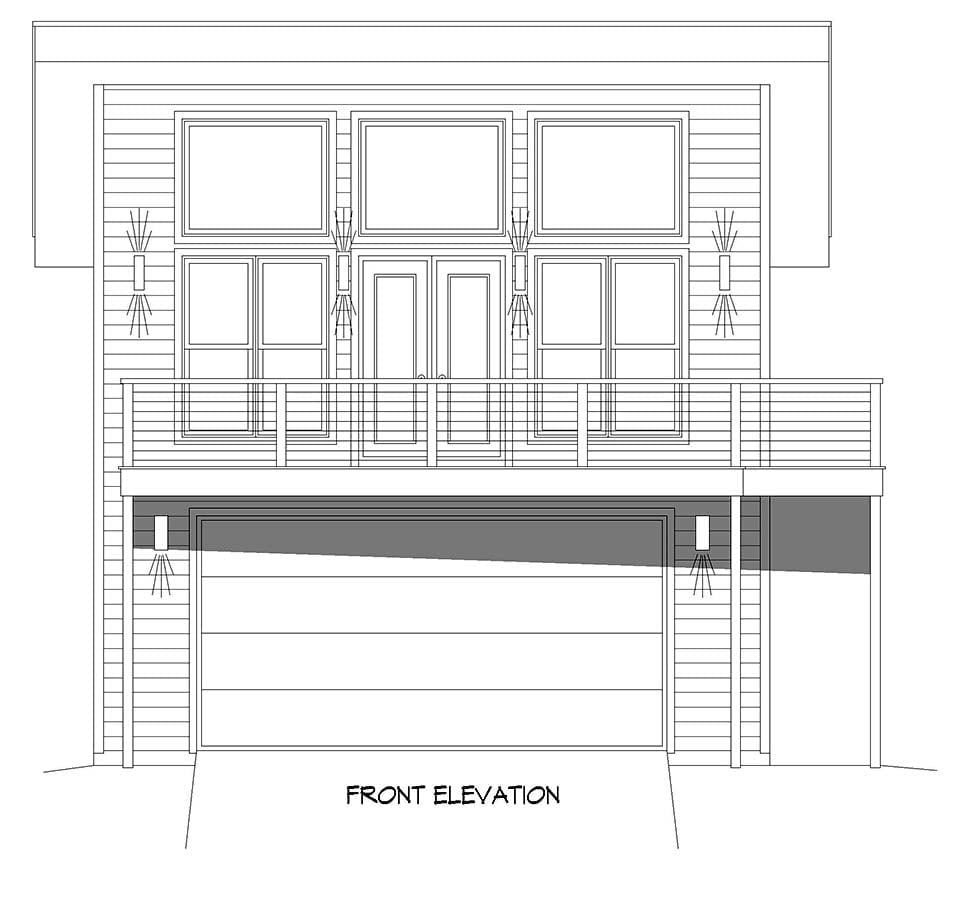

c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format
