Garage-Living Plan 40995

• PDF Study Set: $625.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File of Same Plan: $1,250.00
• 5 Sets plus PDF File of Same Plan: $2,200.00
• CAD File of Same Plan: $1,900.00

• Right Reading (True) Reverse: $195.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Plan Notes

Shop ceiling height: 15'

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	784 sq ft
Main Living Area:	784 sq ft
Garage Area:	1713 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	66'0
House Depth:	45'0
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	29'10 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Truss
Deck:	376 sq ft
Main Ceiling Height:	9'

Special Features:

• Deck or Patio
• Entertaining Space
• Open Floor Plan
• Pantry

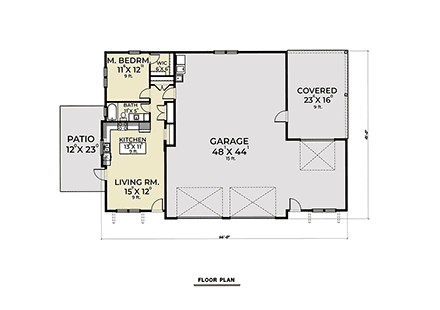

Four Exterior Elevations Main Floor Plan Second Level Floor Plan – if applicable Basement Floor Plan – if Applicable Bonus Floor Plan – if Applicable Building Sections Typical Wall Detail Foundation Plan and Details Second Floor Framing Plan – if Applicable Roof Framing Plan Electrical Plan

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
