Order Code: 00WEB |
Total Living Area: | 1604 sq ft |
Main Living Area: | 1152 sq ft |
Upper Living Area: | 452 sq ft |
Bonus Area: | 115 sq ft |
Garage Type: | None |
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |
Foundation Types: | Basement Crawlspace |
Exterior Walls: | 2x6 |
House Width: | 36' |
House Depth: | 52` |
Number of Stories: | 2 |
Bedrooms: | 3 |
Full Baths: | 2 |
Half Baths: | 1 |
Max Ridge Height: | 25' from Front Door Floor Level |
Primary Roof Pitch: | 12:12 |
Roof Load: | 40 psf |
Roof Framing: | Stick |
Porch: | 288 sq ft |
Deck: | 432 sq ft |
FirePlace: | Yes |
1st Floor Master: | Yes |
Main Ceiling Height: | 8' |
Upper Ceiling Height: | 8' |
A: We don’t have that. We will not provide it.
A: The ceiling goes from 8’ at the window wall to about 17’ at the balcony.
A: Master bath 10’-9” x 8’-0” Master closet 6’-2” x 6’-2” Utility rm 5’-8” x 8’-0” Master hall 3’-0”
A: We are based in NY so we cannot comment on Virginia codes. The front door is 36”. The bedroom and utility room doors are 30”. The bathroom doors are 24”
A: I am not sure what you are asking. You can choose one of three foundation types. Crawlspace, Basement or Slab on grade (concrete). We do not provide estimates for construction. Kathi McGuire
A: The porch roof is 8 feet. If you raise the second floor you will need to add two risers to the stairs. You will need to push the second floor bath back to allow for the extra treads.

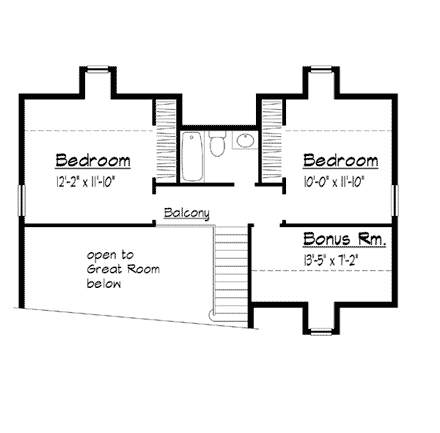

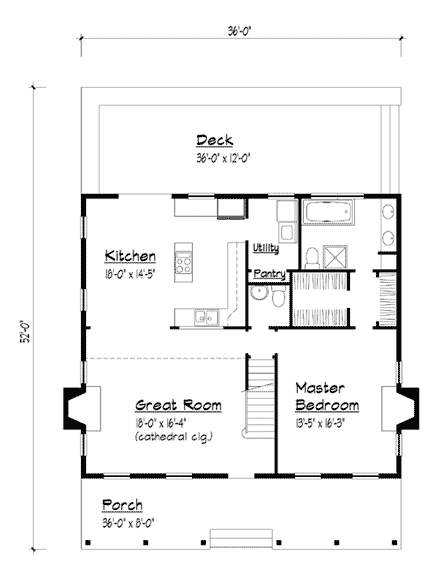

A: The dotted line between the Great Room and the Kitchen represents the edge of the balcony above. The dotted lines in the second floor plan represent where the ceiling angles down from 8 feet tall to about 5 feet tall We cannot provide dimensions for every area prior to purchase.
A: Hi,
Here are our answers. They are approximate
Kitchen/dining 14’ x 18’
Dining 10 ‘ x 14’
Master Bath 8 x 10 – that can be larger if you rework the utility room
Utility 5’8 x 8’ without closet
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
