Multi-Family Plan 41141

• PDF File: $2,200.00
• 5 Sets plus PDF File: $2,450.00
• PDF File Unlimited Build: $2,700.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,700.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $250.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $250.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $250.00
  (Please call for drawing time.)
• ICF: $750.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

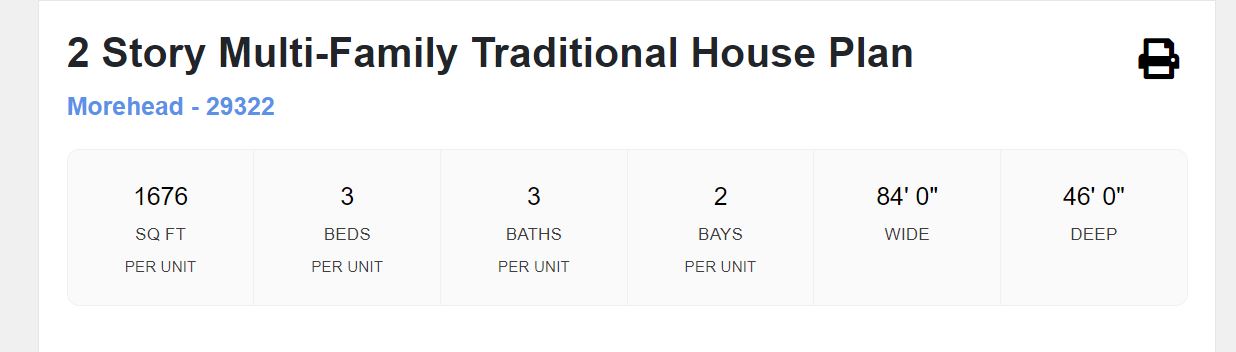

Total Living Area:	4935 sq ft

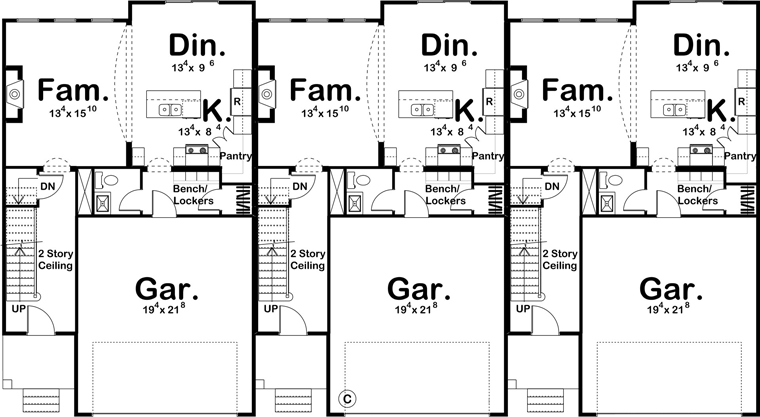

Main Living Area:	757 sq ft
Upper Living Area:	919 sq ft
Garage Area:	434 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Basement Crawlspace - * $250.00 Slab - * $250.00
Exterior Walls:	2x4 2x6 - * $250.00 ICF - * $750.00
House Width:	84'
House Depth:	46'
Number of Stories:	2
Bedrooms:	9
Full Baths:	6
Half Baths:	3
Max Ridge Height:	28'4 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	40 psf
Roof Framing:	Truss
Porch:	46 sq ft
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'
Tray Ceiling:	Yes

* May require additional drawing time.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
