Multi-Family Plan 41262

• PDF File: $3,250.00
• 1 Set: $1,300.00 **
• 5 Sets plus PDF File: $1,925.00
• CAD File: $3,575.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,900.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $410.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $1,300.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x4: $475.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2770 sq ft
Main Living Area:	2201 sq ft
Upper Living Area:	569 sq ft
Garage Area:	679 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace
Exterior Walls:	2x4 - * $475.00 2x6
House Width:	77'0
House Depth:	58'0
Number of Stories:	2
Bedrooms:	5
Full Baths:	3
Half Baths:	1
Max Ridge Height:	22'9 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	20 psf
Roof Framing:	Truss and/or Stick
1st Floor Master:	Yes
Main Ceiling Height:	9'0

* May require additional drawing time.

Special Features:

• Deck or Patio

Duplex House Plan in the Craftsman Style at Family Home Plans Multi Family

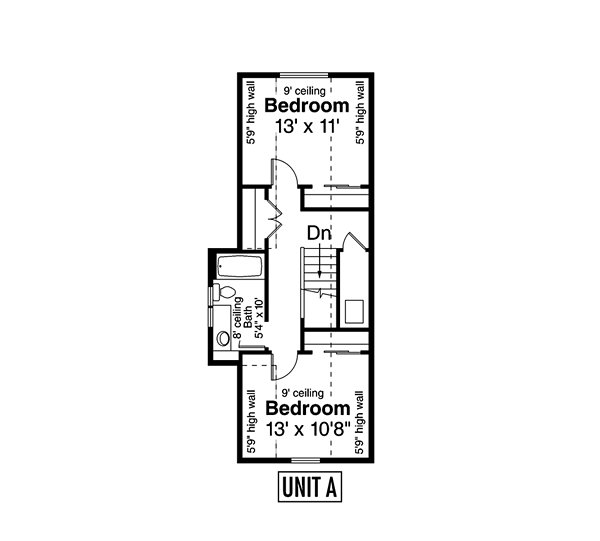

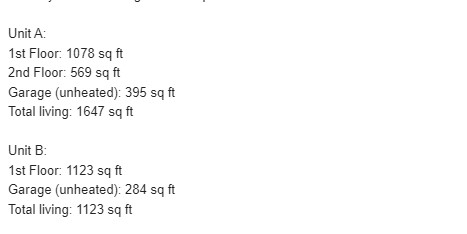

Duplex house plan with side by side units. Unit A is a 3 bedroom 2.5 bedroom unit at 1647 sq ft and unit B is a 2 bedroom and 1 bathroom unit at 1123 sq ft. Unit A also has a tandem garage vs the standard 1 car garage. This multi family home plan has great curb appeal and is a popular craftsman cottage design. Duplex plans make great investment property or assisted living quarters.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

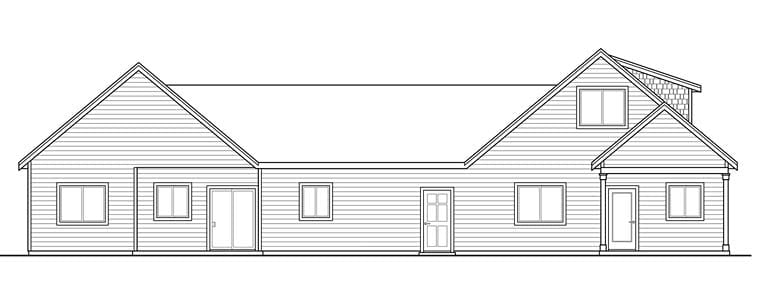

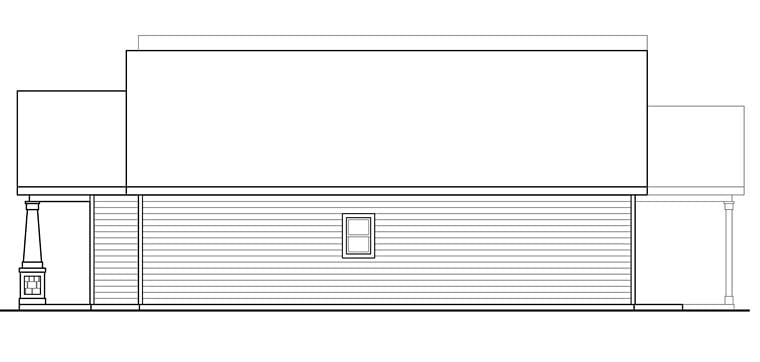

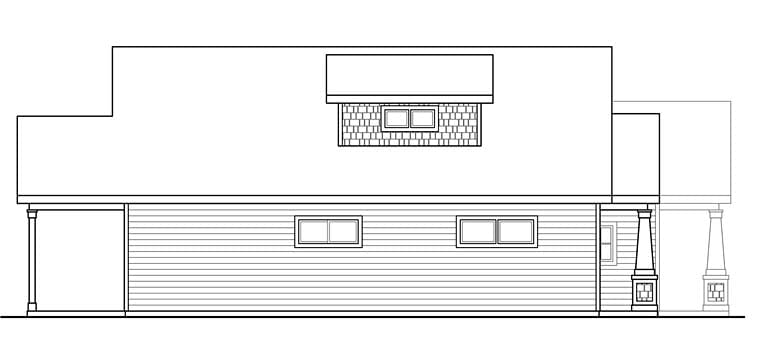

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

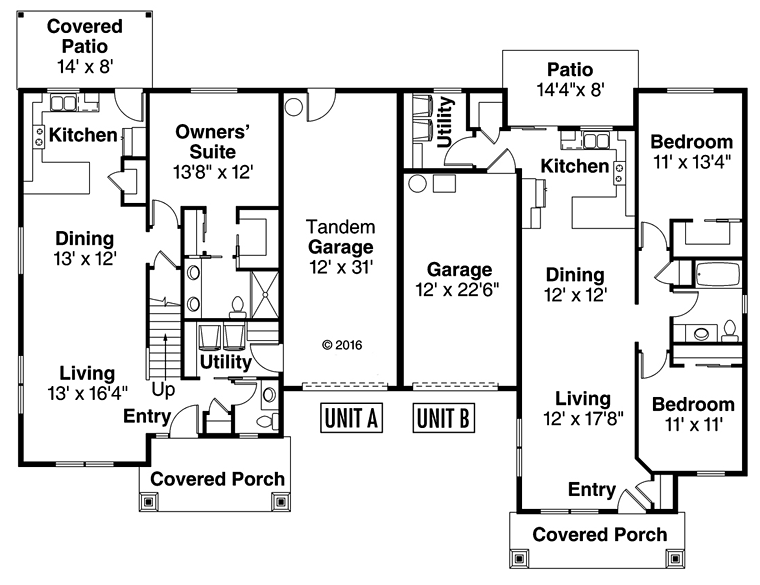

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
