2 Car Garage Apartment Plan 41350

• PDF File: $985.00
• 1 Set: $385.00 **
• 5 Sets plus PDF File: $630.00
• CAD File: $1,095.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $30.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $110.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	985 sq ft
Main Living Area:	237 sq ft
Upper Living Area:	748 sq ft
Garage Area:	868 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 - * $110.00 2x6
House Width:	38'0
House Depth:	32'0
Number of Stories:	2
Full Baths:	1
Max Ridge Height:	24'4 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	25 psf
Roof Framing:	Stick
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Storage Space

Garage Plan with Rec Room

This Craftsman garage plan can house two cars, plus one extra in the attached carport. Both garage doors are 10' wide and 8' tall. Upstairs there is a recreation room with a full bathroom and storage room.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

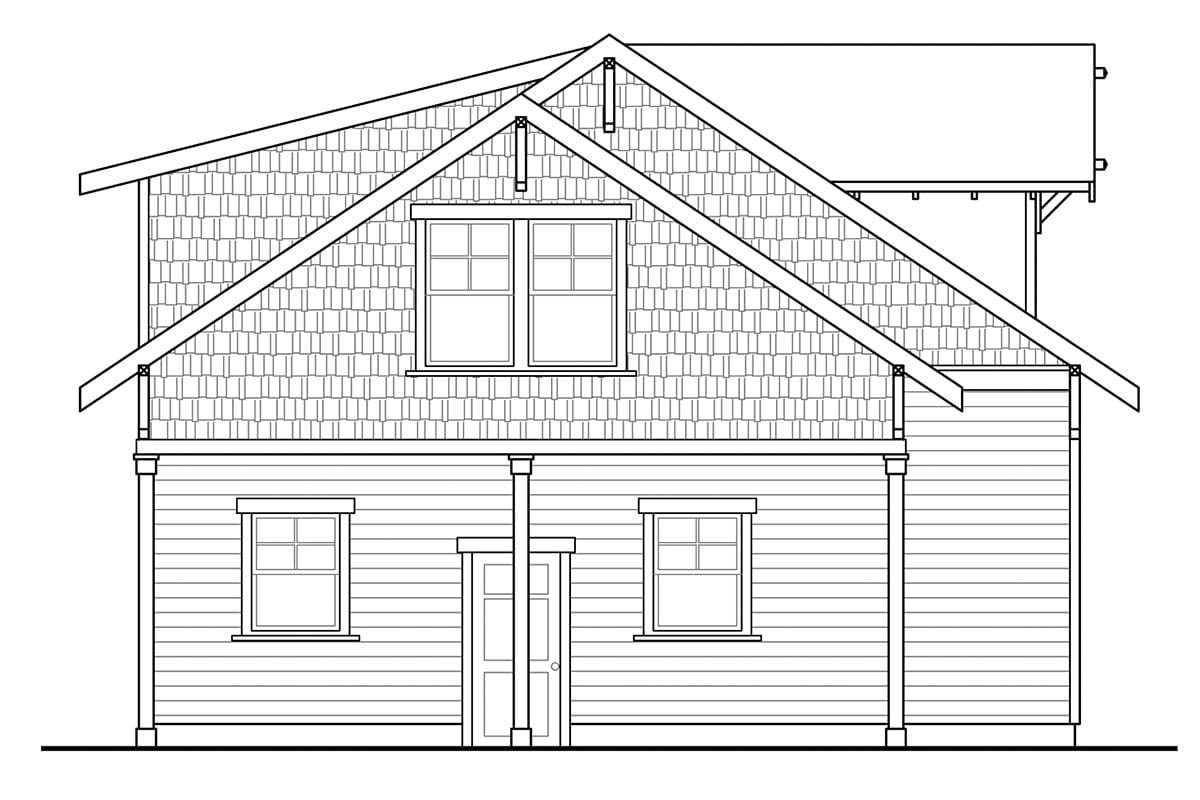

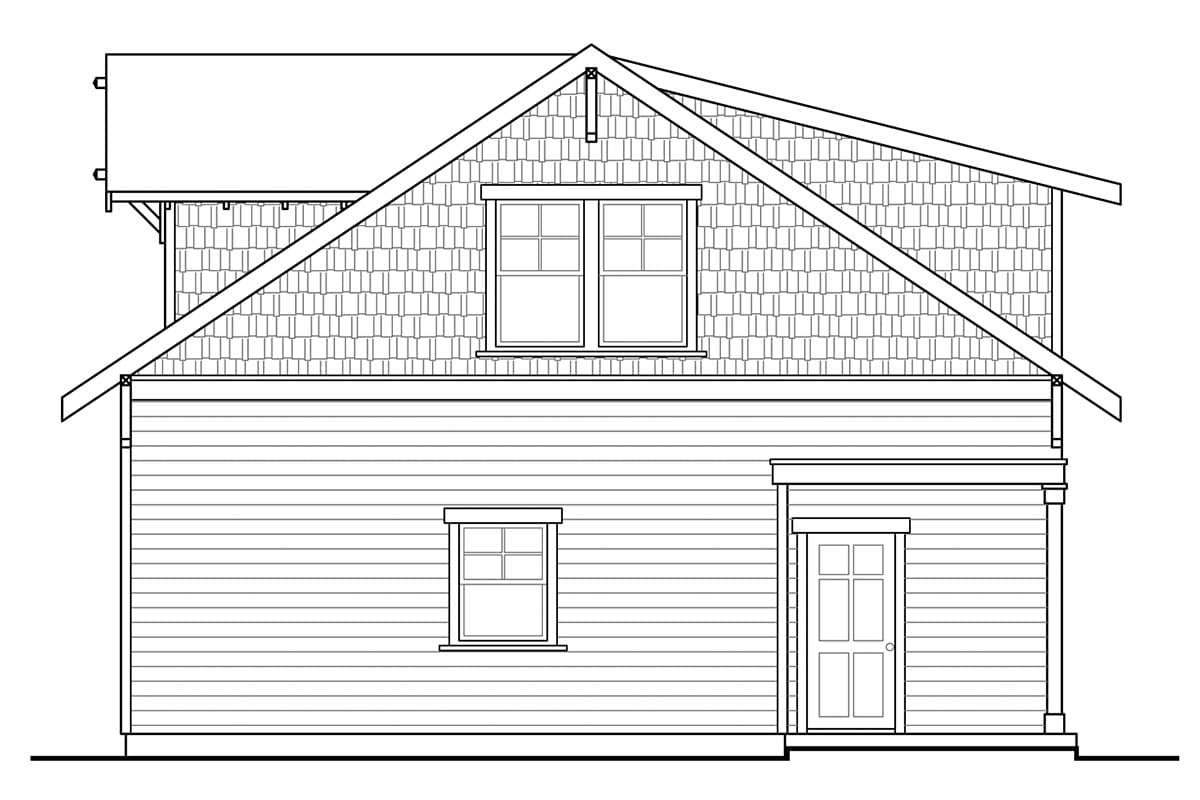

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

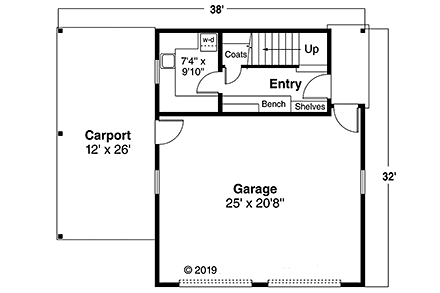

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

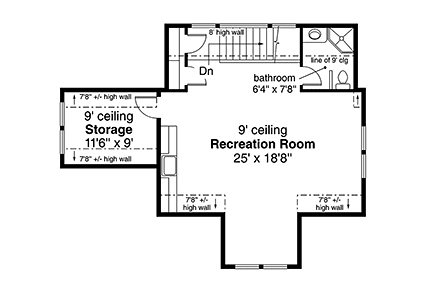

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
